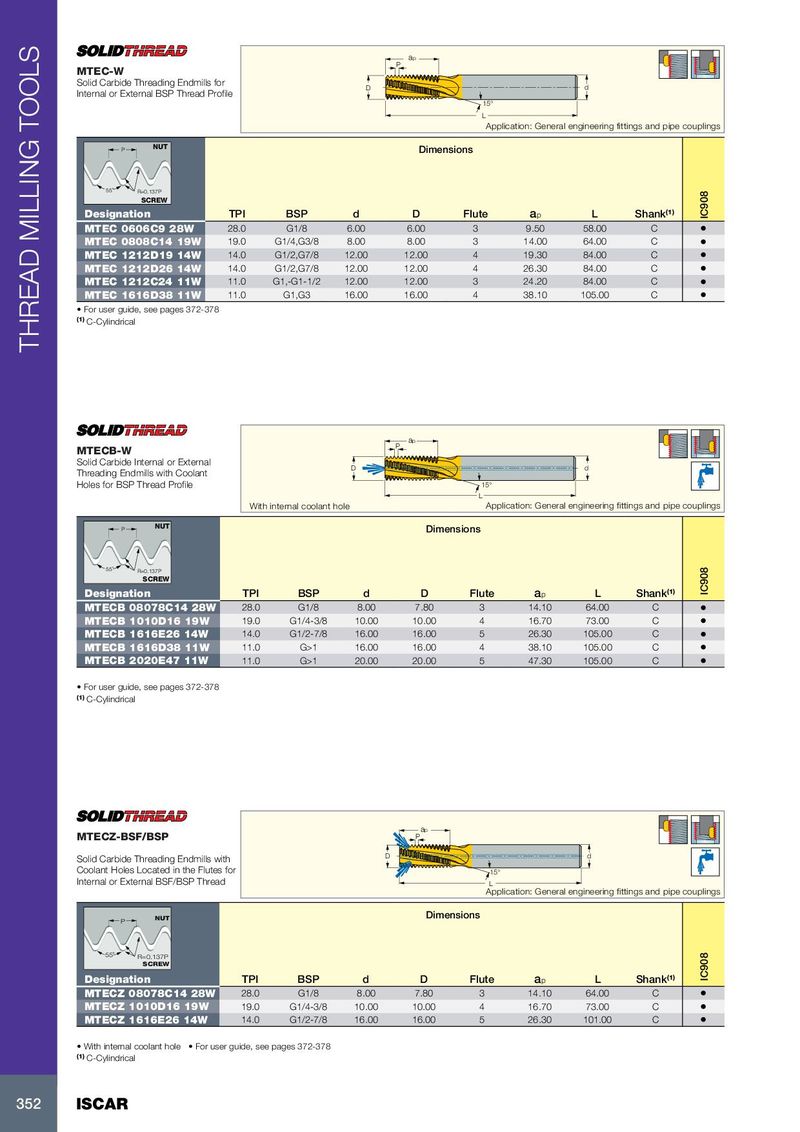

ap P MTEC-W Solid Carbide Threading Endmills for D d Internal or External BSP Thread Profile 15° L Application: General engineering fittings and pipe couplings P NUT Dimensions 55˚ R=0.137P SCREW Designation TPI BSP d D Flute a p L Shank (1) IC908 MTEC 0606C9 28W 28.0 G1/8 6.00 6.00 3 9.50 58.00 C • MTEC 0808C14 19W 19.0 G1/4,G3/8 8.00 8.00 3 14.00 64.00 C • MTEC 1212D19 14W 14.0 G1/2,G7/8 12.00 12.00 4 19.30 84.00 C • MTEC 1212D26 14W 14.0 G1/2,G7/8 12.00 12.00 4 26.30 84.00 C • MTEC 1212C24 11W 11.0 G1,-G1-1/2 12.00 12.00 3 24.20 84.00 C • MTEC 1616D38 11W 11.0 G1,G3 16.00 16.00 4 38.10 105.00 C • • For user guide, see pages 372-378 (1) C-Cylindrical THREAD MILLING TOOLS ap P MTECB-W Solid Carbide Internal or External D d Threading Endmills with Coolant Holes for BSP Thread Profile 15° L With internal coolant hole Application: General engineering fittings and pipe couplings P NUT Dimensions 55˚ R=0.137P SCREW Designation TPI BSP d D Flute a p L Shank (1) IC908 MTECB 08078C14 28W 28.0 G1/8 8.00 7.80 3 14.10 64.00 C • MTECB 1010D16 19W 19.0 G1/4-3/8 10.00 10.00 4 16.70 73.00 C • MTECB 1616E26 14W 14.0 G1/2-7/8 16.00 16.00 5 26.30 105.00 C • MTECB 1616D38 11W 11.0 G>1 16.00 16.00 4 38.10 105.00 C • MTECB 2020E47 11W 11.0 G>1 20.00 20.00 5 47.30 105.00 C • • For user guide, see pages 372-378 (1) C-Cylindrical ap MTECZ-BSF/BSP P Solid Carbide Threading Endmills with D d Coolant Holes Located in the Flutes for 15° Internal or External BSF/BSP Thread L Application: General engineering fittings and pipe couplings Dimensions P NUT 55˚ R=0.137P SCREW Designation TPI BSP d D Flute a p L Shank (1) IC908 MTECZ 08078C14 28W 28.0 G1/8 8.00 7.80 3 14.10 64.00 C • MTECZ 1010D16 19W 19.0 G1/4-3/8 10.00 10.00 4 16.70 73.00 C • MTECZ 1616E26 14W 14.0 G1/2-7/8 16.00 16.00 5 26.30 101.00 C • • With internal coolant hole • For user guide, see pages 372-378 (1) C-Cylindrical 352 ISCAR
