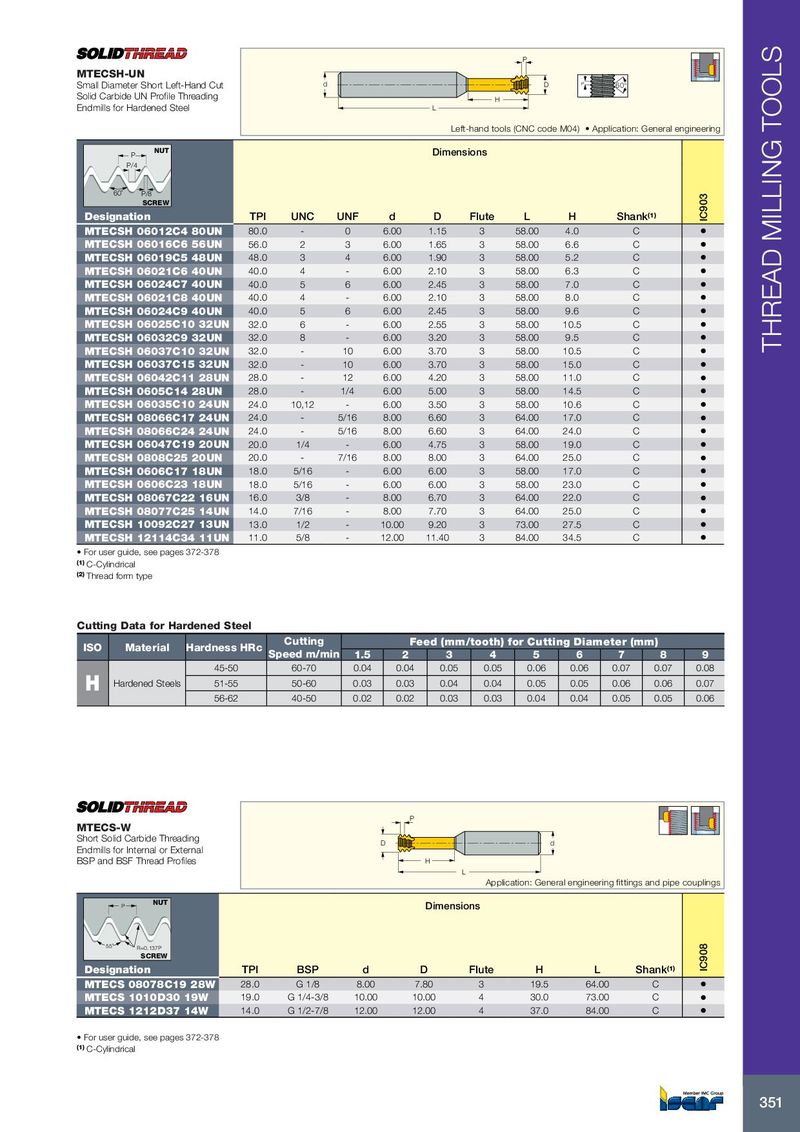

P MTECSH-UN Small Diameter Short Left-Hand Cut d D P 60° Solid Carbide UN Profile Threading H Endmills for Hardened Steel L Left-hand tools (CNC code M04) • Application: General engineering NUT P Dimensions P/4 60˚ P/8 SCREW Designation TPI UNC UNF d D Flute L H Shank (1) IC903 MTECSH 06012C4 80UN 80.0 - 0 6.00 1.15 3 58.00 4.0 C • MTECSH 06016C6 56UN 56.0 2 3 6.00 1.65 3 58.00 6.6 C • MTECSH 06019C5 48UN 48.0 3 4 6.00 1.90 3 58.00 5.2 C • MTECSH 06021C6 40UN 40.0 4 - 6.00 2.10 3 58.00 6.3 C • MTECSH 06024C7 40UN 40.0 5 6 6.00 2.45 3 58.00 7.0 C • MTECSH 06021C8 40UN 40.0 4 - 6.00 2.10 3 58.00 8.0 C • MTECSH 06024C9 40UN 40.0 5 6 6.00 2.45 3 58.00 9.6 C • MTECSH 06025C10 32UN 32.0 6 - 6.00 2.55 3 58.00 10.5 C • MTECSH 06032C9 32UN 32.0 8 - 6.00 3.20 3 58.00 9.5 C • MTECSH 06037C10 32UN 32.0 - 10 6.00 3.70 3 58.00 10.5 C • THREAD MILLING TOOLS MTECSH 06037C15 32UN 32.0 - 10 6.00 3.70 3 58.00 15.0 C • MTECSH 06042C11 28UN 28.0 - 12 6.00 4.20 3 58.00 11.0 C • MTECSH 0605C14 28UN 28.0 - 1/4 6.00 5.00 3 58.00 14.5 C • MTECSH 06035C10 24UN 24.0 10,12 - 6.00 3.50 3 58.00 10.6 C • MTECSH 08066C17 24UN 24.0 - 5/16 8.00 6.60 3 64.00 17.0 C • MTECSH 08066C24 24UN 24.0 - 5/16 8.00 6.60 3 64.00 24.0 C • MTECSH 06047C19 20UN 20.0 1/4 - 6.00 4.75 3 58.00 19.0 C • MTECSH 0808C25 20UN 20.0 - 7/16 8.00 8.00 3 64.00 25.0 C • MTECSH 0606C17 18UN 18.0 5/16 - 6.00 6.00 3 58.00 17.0 C • MTECSH 0606C23 18UN 18.0 5/16 - 6.00 6.00 3 58.00 23.0 C • MTECSH 08067C22 16UN 16.0 3/8 - 8.00 6.70 3 64.00 22.0 C • MTECSH 08077C25 14UN 14.0 7/16 - 8.00 7.70 3 64.00 25.0 C • MTECSH 10092C27 13UN 13.0 1/2 - 10.00 9.20 3 73.00 27.5 C • MTECSH 12114C34 11UN 11.0 5/8 - 12.00 11.40 3 84.00 34.5 C • • For user guide, see pages 372-378 (1) C-Cylindrical (2) Thread form type Cutting Data for Hardened Steel Cutting Feed (mm/tooth) for Cutting Diameter (mm) ISO Material Hardness HRc Speed m/min 1.5 2 3 4 5 6 7 8 9 45-50 60-70 0.04 0.04 0.05 0.05 0.06 0.06 0.07 0.07 0.08 Hardened Steels 51-55 50-60 0.03 0.03 0.04 0.04 0.05 0.05 0.06 0.06 0.07 H 56-62 40-50 0.02 0.02 0.03 0.03 0.04 0.04 0.05 0.05 0.06 P MTECS-W Short Solid Carbide Threading D d Endmills for Internal or External BSP and BSF Thread Profiles H L Application: General engineering fittings and pipe couplings P NUT Dimensions 55˚ R=0.137P SCREW Designation TPI BSP d D Flute H L Shank (1) IC908 MTECS 08078C19 28W 28.0 G 1/8 8.00 7.80 3 19.5 64.00 C • MTECS 1010D30 19W 19.0 G 1/4-3/8 10.00 10.00 4 30.0 73.00 C • MTECS 1212D37 14W 14.0 G 1/2-7/8 12.00 12.00 4 37.0 84.00 C • • For user guide, see pages 372-378 (1) C-Cylindrical 351
