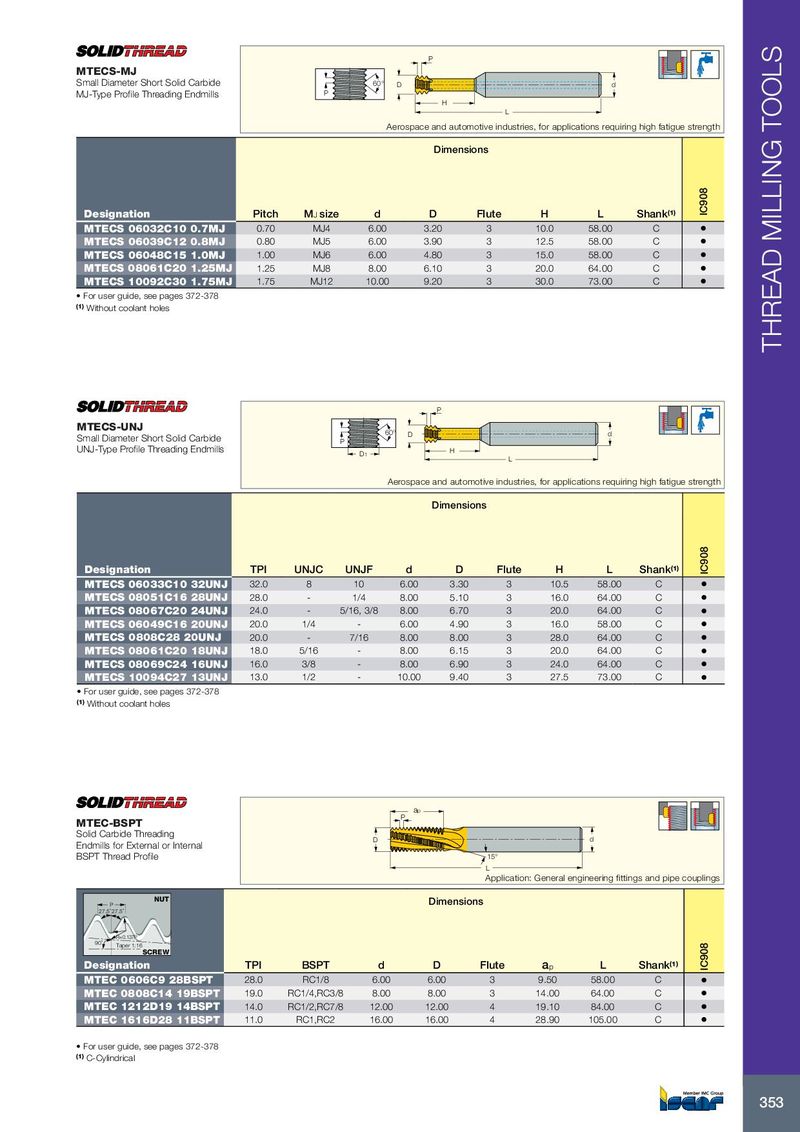

P MTECS-MJ Small Diameter Short Solid Carbide 60° D d MJ-Type Profile Threading Endmills P H L Aerospace and automotive industries, for applications requiring high fatigue strength Dimensions Designation Pitch M J size d D Flute H L Shank (1) IC908 MTECS 06032C10 0.7MJ 0.70 MJ4 6.00 3.20 3 10.0 58.00 C • MTECS 06039C12 0.8MJ 0.80 MJ5 6.00 3.90 3 12.5 58.00 C • MTECS 06048C15 1.0MJ 1.00 MJ6 6.00 4.80 3 15.0 58.00 C • MTECS 08061C20 1.25MJ 1.25 MJ8 8.00 6.10 3 20.0 64.00 C • MTECS 10092C30 1.75MJ 1.75 MJ12 10.00 9.20 3 30.0 73.00 C • • For user guide, see pages 372-378 (1) Without coolant holes THREAD MILLING TOOLS P MTECS-UNJ 60° D d Small Diameter Short Solid Carbide P UNJ-Type Profile Threading Endmills D 1 H L Aerospace and automotive industries, for applications requiring high fatigue strength Dimensions Designation TPI UNJC UNJF d D Flute H L Shank (1) IC908 MTECS 06033C10 32UNJ 32.0 8 10 6.00 3.30 3 10.5 58.00 C • MTECS 08051C16 28UNJ 28.0 - 1/4 8.00 5.10 3 16.0 64.00 C • MTECS 08067C20 24UNJ 24.0 - 5/16, 3/8 8.00 6.70 3 20.0 64.00 C • MTECS 06049C16 20UNJ 20.0 1/4 - 6.00 4.90 3 16.0 58.00 C • MTECS 0808C28 20UNJ 20.0 - 7/16 8.00 8.00 3 28.0 64.00 C • MTECS 08061C20 18UNJ 18.0 5/16 - 8.00 6.15 3 20.0 64.00 C • MTECS 08069C24 16UNJ 16.0 3/8 - 8.00 6.90 3 24.0 64.00 C • MTECS 10094C27 13UNJ 13.0 1/2 - 10.00 9.40 3 27.5 73.00 C • • For user guide, see pages 372-378 (1) Without coolant holes ap P MTEC-BSPT Solid Carbide Threading D d Endmills for External or Internal BSPT Thread Profile 15° L Application: General engineering fittings and pipe couplings NUT P Dimensions 27.5˚ 27.5˚ R=0.137P 90˚ Taper 1:16 SCREW Designation TPI BSPT d D Flute a p L Shank (1) IC908 MTEC 0606C9 28BSPT 28.0 RC1/8 6.00 6.00 3 9.50 58.00 C • MTEC 0808C14 19BSPT 19.0 RC1/4,RC3/8 8.00 8.00 3 14.00 64.00 C • MTEC 1212D19 14BSPT 14.0 RC1/2,RC7/8 12.00 12.00 4 19.10 84.00 C • MTEC 1616D28 11BSPT 11.0 RC1,RC2 16.00 16.00 4 28.90 105.00 C • • For user guide, see pages 372-378 (1) C-Cylindrical 353
