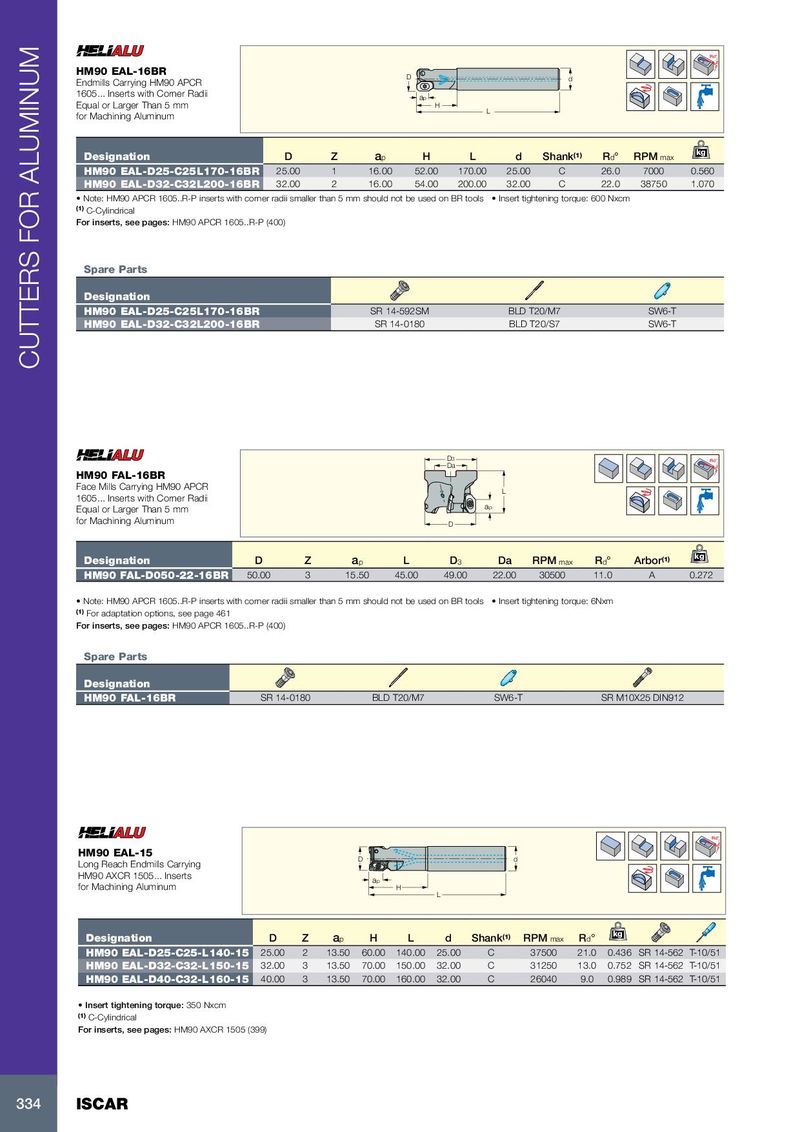

Каталог Iscar вращающийся инструмент 2017 - страница 338

Rd° HM90 EAL-16BR D d Endmills Carrying HM90 APCR 1605... Inserts with Corner Radii ap Equal or Larger Than 5 mm H L for Machining Aluminum kg Designation D Z a p H L d Shank (1) R d ° RPM max HM90 EAL-D25-C25L170-16BR 25.00 1 16.00 52.00 170.00 25.00 C 26.0 7000 0.560 HM90 EAL-D32-C32L200-16BR 32.00 2 16.00 54.00 200.00 32.00 C 22.0 38750 1.070 • Note: HM90 APCR 1605..R-P inserts with corner radii smaller than 5 mm should not be used on BR tools • Insert tightening torque: 600 Nxcm (1) C-Cylindrical For inserts, see pages: HM90 APCR 1605..R-P (400) Spare Parts Designation HM90 EAL-D25-C25L170-16BR SR 14-592SM BLD T20/M7 SW6-T HM90 EAL-D32-C32L200-16BR SR 14-0180 BLD T20/S7 SW6-T CUTTERS FOR ALUMINUM D3 Rd° Da HM90 FAL-16BR Face Mills Carrying HM90 APCR L 1605... Inserts with Corner Radii Equal or Larger Than 5 mm ap for Machining Aluminum D Designation D Z a p L D 3 Da RPM max R d ° Arbor (1) kg HM90 FAL-D050-22-16BR 50.00 3 15.50 45.00 49.00 22.00 30500 11.0 A 0.272 • Note: HM90 APCR 1605..R-P inserts with corner radii smaller than 5 mm should not be used on BR tools • Insert tightening torque: 6Nxm (1) For adaptation options, see page 461 For inserts, see pages: HM90 APCR 1605..R-P (400) Spare Parts Designation HM90 FAL-16BR SR 14-0180 BLD T20/M7 SW6-T SR M10X25 DIN912 Rd° HM90 EAL-15 D d Long Reach Endmills Carrying HM90 AXCR 1505... Inserts ap for Machining Aluminum H L kg Designation D Z a p H L d Shank (1) RPM max R d ° HM90 EAL-D25-C25-L140-15 25.00 2 13.50 60.00 140.00 25.00 C 37500 21.0 0.436 SR 14-562 T-10/51 HM90 EAL-D32-C32-L150-15 32.00 3 13.50 70.00 150.00 32.00 C 31250 13.0 0.752 SR 14-562 T-10/51 HM90 EAL-D40-C32-L160-15 40.00 3 13.50 70.00 160.00 32.00 C 26040 9.0 0.989 SR 14-562 T-10/51 • Insert tightening torque: 350 Nxcm (1) C-Cylindrical For inserts, see pages: HM90 AXCR 1505 (399) 334 ISCAR
