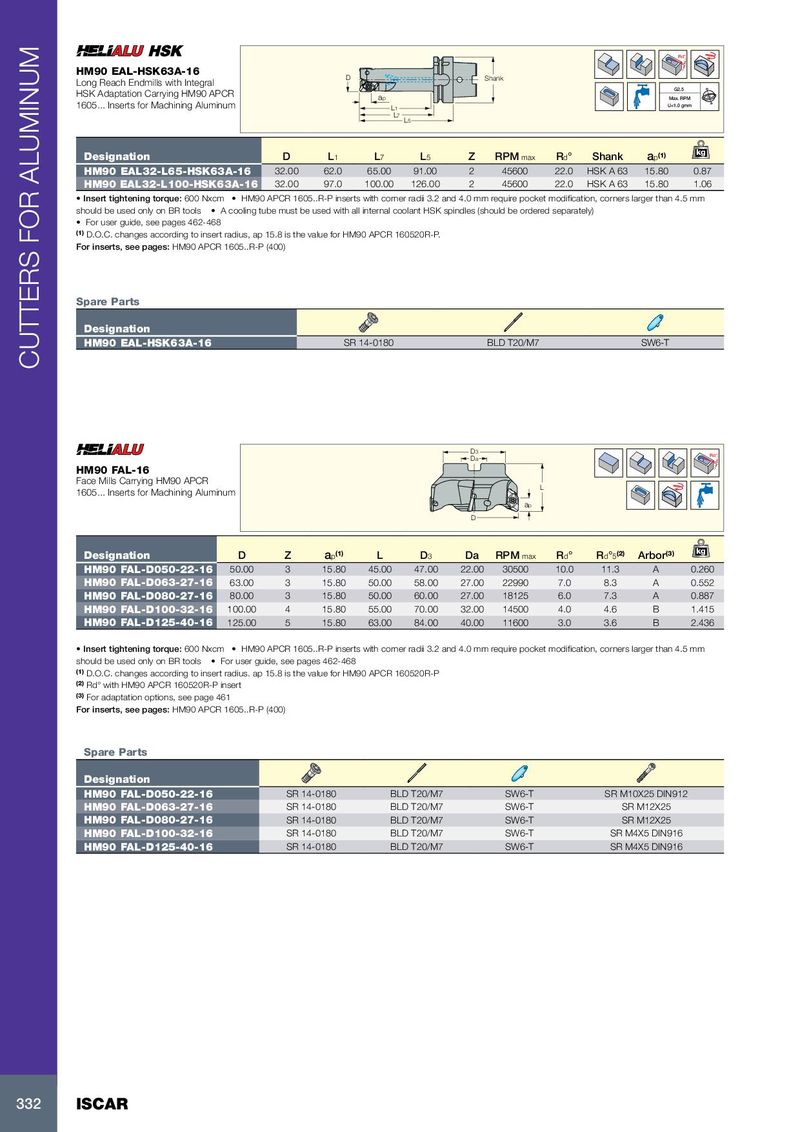

Rd° HM90 EAL-HSK63A-16 D Shank Long Reach Endmills with Integral G2.5 HSK Adaptation Carrying HM90 APCR ap Max. RPM 1605... Inserts for Machining Aluminum L1 U<1.0 gmm L7 L5 Designation D L 1 L 7 L 5 Z RPM max R d ° Shank a p (1) kg HM90 EAL32-L65-HSK63A-16 32.00 62.0 65.00 91.00 2 45600 22.0 HSK A 63 15.80 0.87 HM90 EAL32-L100-HSK63A-16 32.00 97.0 100.00 126.00 2 45600 22.0 HSK A 63 15.80 1.06 • Insert tightening torque: 600 Nxcm • HM90 APCR 1605..R-P inserts with corner radii 3.2 and 4.0 mm require pocket modification, corners larger than 4.5 mm should be used only on BR tools • A cooling tube must be used with all internal coolant HSK spindles (should be ordered separately) • For user guide, see pages 462-468 (1) D.O.C. changes according to insert radius, ap 15.8 is the value for HM90 APCR 160520R-P. For inserts, see pages: HM90 APCR 1605..R-P (400) Spare Parts Designation HM90 EAL-HSK63A-16 SR 14-0180 BLD T20/M7 SW6-T CUTTERS FOR ALUMINUM D3 Rd° Da HM90 FAL-16 Face Mills Carrying HM90 APCR L 1605... Inserts for Machining Aluminum ap D Designation D Z a p (1) L D 3 Da RPM max R d ° R d ° 5 (2) Arbor (3) kg HM90 FAL-D050-22-16 50.00 3 15.80 45.00 47.00 22.00 30500 10.0 11.3 A 0.260 HM90 FAL-D063-27-16 63.00 3 15.80 50.00 58.00 27.00 22990 7.0 8.3 A 0.552 HM90 FAL-D080-27-16 80.00 3 15.80 50.00 60.00 27.00 18125 6.0 7.3 A 0.887 HM90 FAL-D100-32-16 100.00 4 15.80 55.00 70.00 32.00 14500 4.0 4.6 B 1.415 HM90 FAL-D125-40-16 125.00 5 15.80 63.00 84.00 40.00 11600 3.0 3.6 B 2.436 • Insert tightening torque: 600 Nxcm • HM90 APCR 1605..R-P inserts with corner radii 3.2 and 4.0 mm require pocket modification, corners larger than 4.5 mm should be used only on BR tools • For user guide, see pages 462-468 (1) D.O.C. changes according to insert radius. ap 15.8 is the value for HM90 APCR 160520R-P (2) Rd° with HM90 APCR 160520R-P insert (3) For adaptation options, see page 461 For inserts, see pages: HM90 APCR 1605..R-P (400) Spare Parts Designation HM90 FAL-D050-22-16 SR 14-0180 BLD T20/M7 SW6-T SR M10X25 DIN912 HM90 FAL-D063-27-16 SR 14-0180 BLD T20/M7 SW6-T SR M12X25 HM90 FAL-D080-27-16 SR 14-0180 BLD T20/M7 SW6-T SR M12X25 HM90 FAL-D100-32-16 SR 14-0180 BLD T20/M7 SW6-T SR M4X5 DIN916 HM90 FAL-D125-40-16 SR 14-0180 BLD T20/M7 SW6-T SR M4X5 DIN916 332 ISCAR
