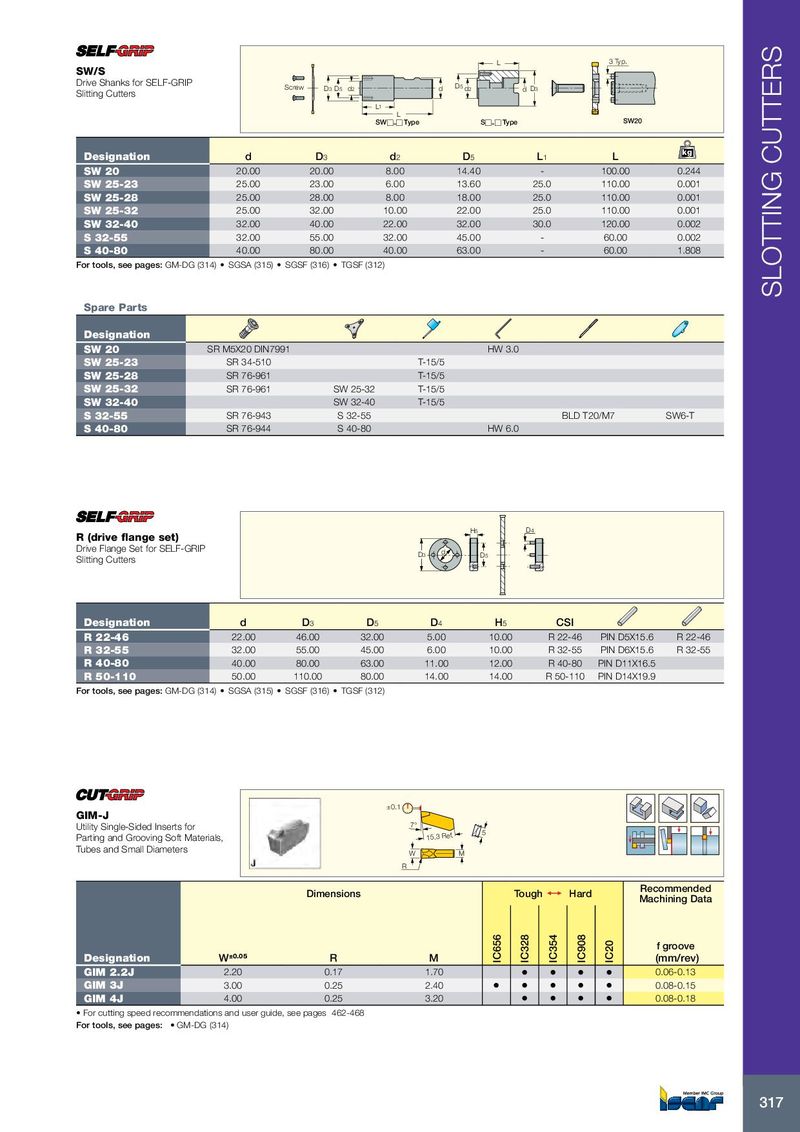

L 3 Typ. SW/S Drive Shanks for SELF-GRIP Screw D 3 D5 d2 d D 5 d2 d D 3 Slitting Cutters L 1 L SW :-: Type S :-: Type SW20 kg Designation d D 3 d 2 D 5 L 1 L SW 20 20.00 20.00 8.00 14.40 - 100.00 0.244 SW 25-23 25.00 23.00 6.00 13.60 25.0 110.00 0.001 SW 25-28 25.00 28.00 8.00 18.00 25.0 110.00 0.001 SW 25-32 25.00 32.00 10.00 22.00 25.0 110.00 0.001 SW 32-40 32.00 40.00 22.00 32.00 30.0 120.00 0.002 S 32-55 32.00 55.00 32.00 45.00 - 60.00 0.002 S 40-80 40.00 80.00 40.00 63.00 - 60.00 1.808 For tools, see pages: GM-DG (314) • SGSA (315) • SGSF (316) • TGSF (312) SLOTTING CUTTERS Spare Parts Designation SW 20 SR M5X20 DIN7991 HW 3.0 SW 25-23 SR 34-510 T-15/5 SW 25-28 SR 76-961 T-15/5 SW 25-32 SR 76-961 SW 25-32 T-15/5 SW 32-40 SW 32-40 T-15/5 S 32-55 SR 76-943 S 32-55 BLD T20/M7 SW6-T S 40-80 SR 76-944 S 40-80 HW 6.0 H 5 D 4 R (drive flange set) Drive Flange Set for SELF-GRIP D 3 d D 5 Slitting Cutters Designation d D 3 D 5 D 4 H 5 CSI R 22-46 22.00 46.00 32.00 5.00 10.00 R 22-46 PIN D5X15.6 R 22-46 R 32-55 32.00 55.00 45.00 6.00 10.00 R 32-55 PIN D6X15.6 R 32-55 R 40-80 40.00 80.00 63.00 11.00 12.00 R 40-80 PIN D11X16.5 R 50-110 50.00 110.00 80.00 14.00 14.00 R 50-110 PIN D14X19.9 For tools, see pages: GM-DG (314) • SGSA (315) • SGSF (316) • TGSF (312) ±0.1 GIM-J Utility Single-Sided Inserts for 7° 5 Parting and Grooving Soft Materials, 15.3 Ref. Tubes and Small Diameters W M R Recommended Dimensions Tough 1  Hard Machining Data f groove Designation W ±0.05 R M IC656 IC328 IC354 IC908 IC20 (mm/rev) GIM 2.2J 2.20 0.17 1.70 • • • • 0.06-0.13 GIM 3J 3.00 0.25 2.40 • • • • • 0.08-0.15 GIM 4J 4.00 0.25 3.20 • • • • 0.08-0.18 • For cutting speed recommendations and user guide, see pages 462-468 For tools, see pages: • GM-DG (314) 317
