Каталог Iscar вращающийся инструмент 2017 - страница 320

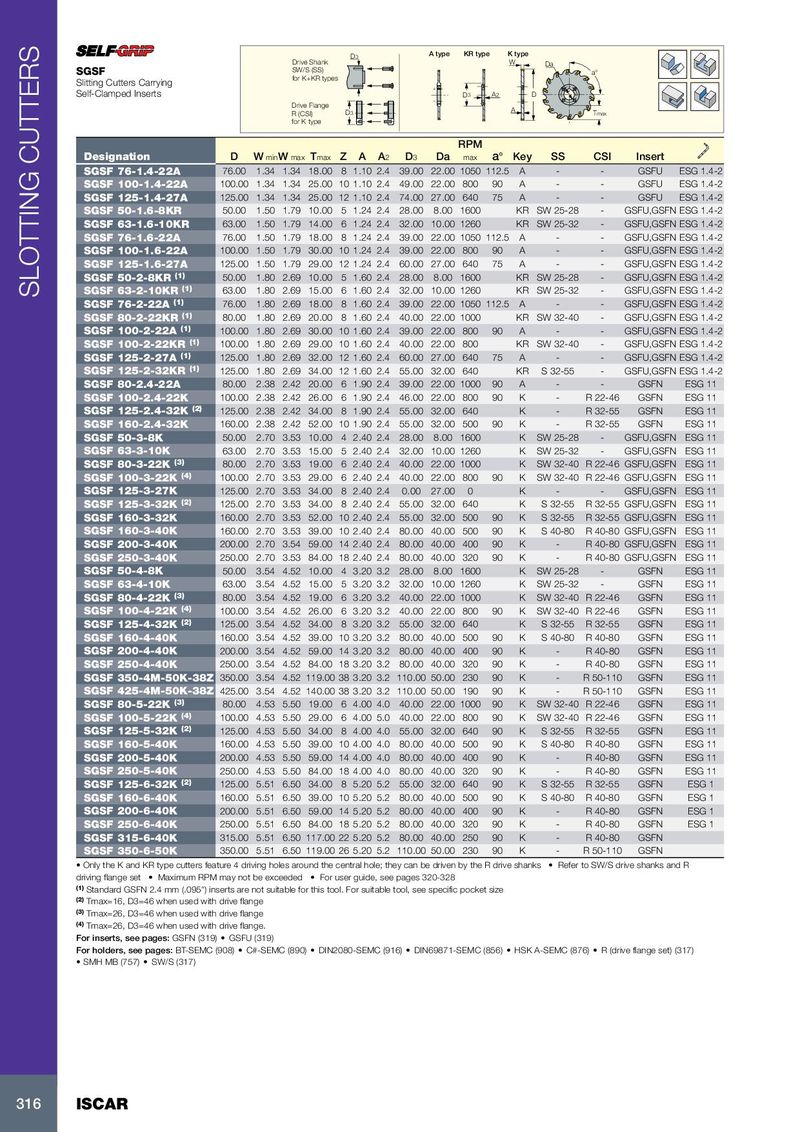

D 3 A type KR type K type Drive Shank W Da SGSF SW/S (SS) a° for K+KR types Slitting Cutters Carrying Self-Clamped Inserts D 3 A 2 D Drive Flange R (CSI) D 3 A Tmax for K type RPM Designation D W min W max T max Z A A 2 D 3 Da max a° Key SS CSI Insert SGSF 76-1.4-22A 76.00 1.34 1.34 18.00 8 1.10 2.4 39.00 22.00 1050 112.5 A - - GSFU ESG 1.4-2 SGSF 100-1.4-22A 100.00 1.34 1.34 25.00 10 1.10 2.4 49.00 22.00 800 90 A - - GSFU ESG 1.4-2 SGSF 125-1.4-27A 125.00 1.34 1.34 25.00 12 1.10 2.4 74.00 27.00 640 75 A - - GSFU ESG 1.4-2 SGSF 50-1.6-8KR 50.00 1.50 1.79 10.00 5 1.24 2.4 28.00 8.00 1600 KR SW 25-28 - GSFU,GSFN ESG 1.4-2 SGSF 63-1.6-10KR 63.00 1.50 1.79 14.00 6 1.24 2.4 32.00 10.00 1260 KR SW 25-32 - GSFU,GSFN ESG 1.4-2 SGSF 76-1.6-22A 76.00 1.50 1.79 18.00 8 1.24 2.4 39.00 22.00 1050 112.5 A - - GSFU,GSFN ESG 1.4-2 SGSF 100-1.6-22A 100.00 1.50 1.79 30.00 10 1.24 2.4 39.00 22.00 800 90 A - - GSFU,GSFN ESG 1.4-2 SGSF 125-1.6-27A 125.00 1.50 1.79 29.00 12 1.24 2.4 60.00 27.00 640 75 A - - GSFU,GSFN ESG 1.4-2 SGSF 50-2-8KR (1) 50.00 1.80 2.69 10.00 5 1.60 2.4 28.00 8.00 1600 KR SW 25-28 - GSFU,GSFN ESG 1.4-2 SLOTTING CUTTERS SGSF 63-2-10KR (1) 63.00 1.80 2.69 15.00 6 1.60 2.4 32.00 10.00 1260 KR SW 25-32 - GSFU,GSFN ESG 1.4-2 SGSF 76-2-22A (1) 76.00 1.80 2.69 18.00 8 1.60 2.4 39.00 22.00 1050 112.5 A - - GSFU,GSFN ESG 1.4-2 SGSF 80-2-22KR (1) 80.00 1.80 2.69 20.00 8 1.60 2.4 40.00 22.00 1000 KR SW 32-40 - GSFU,GSFN ESG 1.4-2 SGSF 100-2-22A (1) 100.00 1.80 2.69 30.00 10 1.60 2.4 39.00 22.00 800 90 A - - GSFU,GSFN ESG 1.4-2 SGSF 100-2-22KR (1) 100.00 1.80 2.69 29.00 10 1.60 2.4 40.00 22.00 800 KR SW 32-40 - GSFU,GSFN ESG 1.4-2 SGSF 125-2-27A (1) 125.00 1.80 2.69 32.00 12 1.60 2.4 60.00 27.00 640 75 A - - GSFU,GSFN ESG 1.4-2 SGSF 125-2-32KR (1) 125.00 1.80 2.69 34.00 12 1.60 2.4 55.00 32.00 640 KR S 32-55 - GSFU,GSFN ESG 1.4-2 SGSF 80-2.4-22A 80.00 2.38 2.42 20.00 6 1.90 2.4 39.00 22.00 1000 90 A - - GSFN ESG 11 SGSF 100-2.4-22K 100.00 2.38 2.42 26.00 6 1.90 2.4 46.00 22.00 800 90 K - R 22-46 GSFN ESG 11 SGSF 125-2.4-32K (2) 125.00 2.38 2.42 34.00 8 1.90 2.4 55.00 32.00 640 K - R 32-55 GSFN ESG 11 SGSF 160-2.4-32K 160.00 2.38 2.42 52.00 10 1.90 2.4 55.00 32.00 500 90 K - R 32-55 GSFN ESG 11 SGSF 50-3-8K 50.00 2.70 3.53 10.00 4 2.40 2.4 28.00 8.00 1600 K SW 25-28 - GSFU,GSFN ESG 11 SGSF 63-3-10K 63.00 2.70 3.53 15.00 5 2.40 2.4 32.00 10.00 1260 K SW 25-32 - GSFU,GSFN ESG 11 SGSF 80-3-22K (3) 80.00 2.70 3.53 19.00 6 2.40 2.4 40.00 22.00 1000 K SW 32-40 R 22-46 GSFU,GSFN ESG 11 SGSF 100-3-22K (4) 100.00 2.70 3.53 29.00 6 2.40 2.4 40.00 22.00 800 90 K SW 32-40 R 22-46 GSFU,GSFN ESG 11 SGSF 125-3-27K 125.00 2.70 3.53 34.00 8 2.40 2.4 0.00 27.00 0 K - - GSFU,GSFN ESG 11 SGSF 125-3-32K (2) 125.00 2.70 3.53 34.00 8 2.40 2.4 55.00 32.00 640 K S 32-55 R 32-55 GSFU,GSFN ESG 11 SGSF 160-3-32K 160.00 2.70 3.53 52.00 10 2.40 2.4 55.00 32.00 500 90 K S 32-55 R 32-55 GSFU,GSFN ESG 11 SGSF 160-3-40K 160.00 2.70 3.53 39.00 10 2.40 2.4 80.00 40.00 500 90 K S 40-80 R 40-80 GSFU,GSFN ESG 11 SGSF 200-3-40K 200.00 2.70 3.54 59.00 14 2.40 2.4 80.00 40.00 400 90 K - R 40-80 GSFU,GSFN ESG 11 SGSF 250-3-40K 250.00 2.70 3.53 84.00 18 2.40 2.4 80.00 40.00 320 90 K - R 40-80 GSFU,GSFN ESG 11 SGSF 50-4-8K 50.00 3.54 4.52 10.00 4 3.20 3.2 28.00 8.00 1600 K SW 25-28 - GSFN ESG 11 SGSF 63-4-10K 63.00 3.54 4.52 15.00 5 3.20 3.2 32.00 10.00 1260 K SW 25-32 - GSFN ESG 11 SGSF 80-4-22K (3) 80.00 3.54 4.52 19.00 6 3.20 3.2 40.00 22.00 1000 K SW 32-40 R 22-46 GSFN ESG 11 SGSF 100-4-22K (4) 100.00 3.54 4.52 26.00 6 3.20 3.2 40.00 22.00 800 90 K SW 32-40 R 22-46 GSFN ESG 11 SGSF 125-4-32K (2) 125.00 3.54 4.52 34.00 8 3.20 3.2 55.00 32.00 640 K S 32-55 R 32-55 GSFN ESG 11 SGSF 160-4-40K 160.00 3.54 4.52 39.00 10 3.20 3.2 80.00 40.00 500 90 K S 40-80 R 40-80 GSFN ESG 11 SGSF 200-4-40K 200.00 3.54 4.52 59.00 14 3.20 3.2 80.00 40.00 400 90 K - R 40-80 GSFN ESG 11 SGSF 250-4-40K 250.00 3.54 4.52 84.00 18 3.20 3.2 80.00 40.00 320 90 K - R 40-80 GSFN ESG 11 SGSF 350-4M-50K-38Z 350.00 3.54 4.52 119.00 38 3.20 3.2 110.00 50.00 230 90 K - R 50-110 GSFN ESG 11 SGSF 425-4M-50K-38Z 425.00 3.54 4.52 140.00 38 3.20 3.2 110.00 50.00 190 90 K - R 50-110 GSFN ESG 11 SGSF 80-5-22K (3) 80.00 4.53 5.50 19.00 6 4.00 4.0 40.00 22.00 1000 90 K SW 32-40 R 22-46 GSFN ESG 11 SGSF 100-5-22K (4) 100.00 4.53 5.50 29.00 6 4.00 5.0 40.00 22.00 800 90 K SW 32-40 R 22-46 GSFN ESG 11 SGSF 125-5-32K (2) 125.00 4.53 5.50 34.00 8 4.00 4.0 55.00 32.00 640 90 K S 32-55 R 32-55 GSFN ESG 11 SGSF 160-5-40K 160.00 4.53 5.50 39.00 10 4.00 4.0 80.00 40.00 500 90 K S 40-80 R 40-80 GSFN ESG 11 SGSF 200-5-40K 200.00 4.53 5.50 59.00 14 4.00 4.0 80.00 40.00 400 90 K - R 40-80 GSFN ESG 11 SGSF 250-5-40K 250.00 4.53 5.50 84.00 18 4.00 4.0 80.00 40.00 320 90 K - R 40-80 GSFN ESG 11 SGSF 125-6-32K (2) 125.00 5.51 6.50 34.00 8 5.20 5.2 55.00 32.00 640 90 K S 32-55 R 32-55 GSFN ESG 1 SGSF 160-6-40K 160.00 5.51 6.50 39.00 10 5.20 5.2 80.00 40.00 500 90 K S 40-80 R 40-80 GSFN ESG 1 SGSF 200-6-40K 200.00 5.51 6.50 59.00 14 5.20 5.2 80.00 40.00 400 90 K - R 40-80 GSFN ESG 1 SGSF 250-6-40K 250.00 5.51 6.50 84.00 18 5.20 5.2 80.00 40.00 320 90 K - R 40-80 GSFN ESG 1 SGSF 315-6-40K 315.00 5.51 6.50 117.00 22 5.20 5.2 80.00 40.00 250 90 K - R 40-80 GSFN SGSF 350-6-50K 350.00 5.51 6.50 119.00 26 5.20 5.2 110.00 50.00 230 90 K - R 50-110 GSFN • Only the K and KR type cutters feature 4 driving holes around the central hole; they can be driven by the R drive shanks • Refer to SW/S drive shanks and R driving flange set • Maximum RPM may not be exceeded • For user guide, see pages 320-328 (1) Standard GSFN 2.4 mm (.095") inserts are not suitable for this tool. For suitable tool, see specific pocket size (2) Tmax=16, D3=46 when used with drive flange (3) Tmax=26, D3=46 when used with drive flange (4) Tmax=26, D3=46 when used with drive flange. For inserts, see pages: GSFN (319) • GSFU (319) For holders, see pages: BT-SEMC (908) • C#-SEMC (890) • DIN2080-SEMC (916) • DIN69871-SEMC (856) • HSK A-SEMC (876) • R (drive flange set) (317) • SMH MB (757) • SW/S (317) 316 ISCAR
