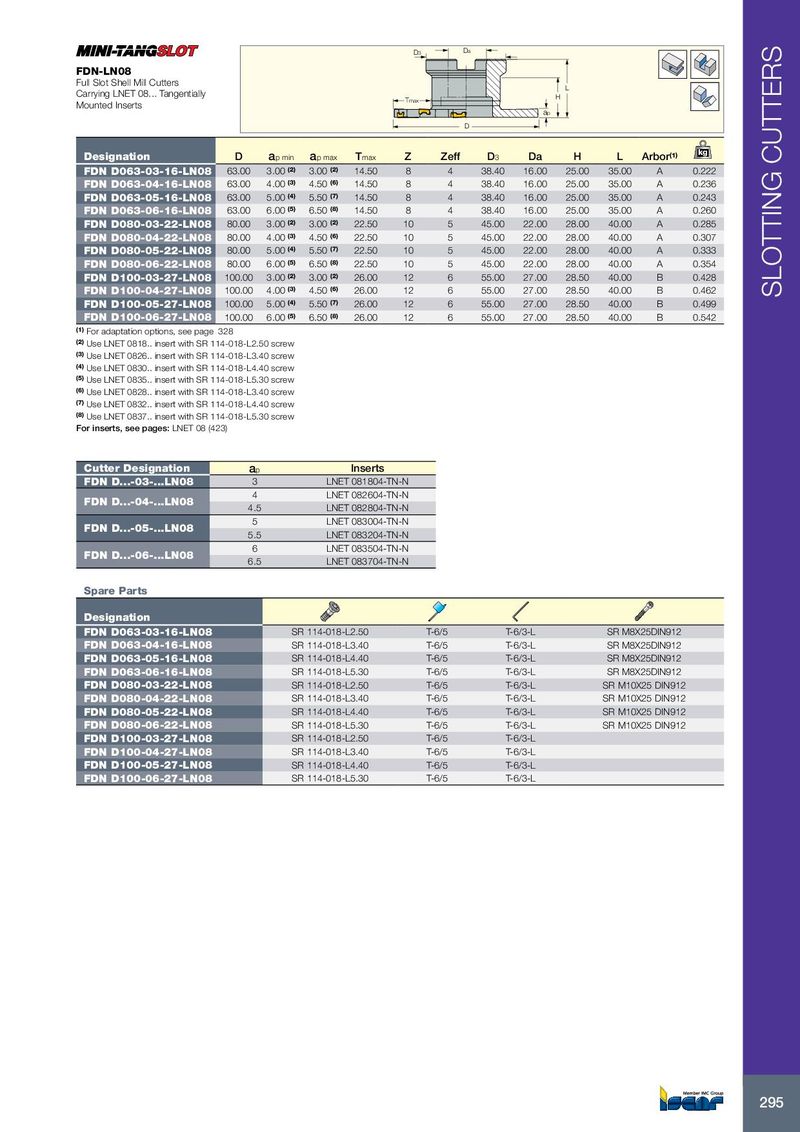

D3 Da FDN-LN08 Full Slot Shell Mill Cutters L Carrying LNET 08... Tangentially Tmax H Mounted Inserts ap D kg Designation D a p min a p max T max Z Zeff D 3 Da H L Arbor (1) FDN D063-03-16-LN08 63.00 3.00 (2) 3.00 (2) 14.50 8 4 38.40 16.00 25.00 35.00 A 0.222 FDN D063-04-16-LN08 63.00 4.00 (3) 4.50 (6) 14.50 8 4 38.40 16.00 25.00 35.00 A 0.236 FDN D063-05-16-LN08 63.00 5.00 (4) 5.50 (7) 14.50 8 4 38.40 16.00 25.00 35.00 A 0.243 FDN D063-06-16-LN08 63.00 6.00 (5) 6.50 (8) 14.50 8 4 38.40 16.00 25.00 35.00 A 0.260 FDN D080-03-22-LN08 80.00 3.00 (2) 3.00 (2) 22.50 10 5 45.00 22.00 28.00 40.00 A 0.285 FDN D080-04-22-LN08 80.00 4.00 (3) 4.50 (6) 22.50 10 5 45.00 22.00 28.00 40.00 A 0.307 FDN D080-05-22-LN08 80.00 5.00 (4) 5.50 (7) 22.50 10 5 45.00 22.00 28.00 40.00 A 0.333 FDN D080-06-22-LN08 80.00 6.00 (5) 6.50 (8) 22.50 10 5 45.00 22.00 28.00 40.00 A 0.354 FDN D100-03-27-LN08 100.00 3.00 (2) 3.00 (2) 26.00 12 6 55.00 27.00 28.50 40.00 B 0.428 FDN D100-04-27-LN08 100.00 4.00 (3) 4.50 (6) 26.00 12 6 55.00 27.00 28.50 40.00 B 0.462 SLOTTING CUTTERS FDN D100-05-27-LN08 100.00 5.00 (4) 5.50 (7) 26.00 12 6 55.00 27.00 28.50 40.00 B 0.499 FDN D100-06-27-LN08 100.00 6.00 (5) 6.50 (8) 26.00 12 6 55.00 27.00 28.50 40.00 B 0.542 (1) For adaptation options, see page 328 (2) Use LNET 0818.. insert with SR 114-018-L2.50 screw (3) Use LNET 0826.. insert with SR 114-018-L3.40 screw (4) Use LNET 0830.. insert with SR 114-018-L4.40 screw (5) Use LNET 0835.. insert with SR 114-018-L5.30 screw (6) Use LNET 0828.. insert with SR 114-018-L3.40 screw (7) Use LNET 0832.. insert with SR 114-018-L4.40 screw (8) Use LNET 0837.. insert with SR 114-018-L5.30 screw For inserts, see pages: LNET 08 (423) Cutter Designation a p Inserts FDN D...-03-...LN08 3 LNET 081804-TN-N 4 LNET 082604-TN-N FDN D...-04-...LN08 4.5 LNET 082804-TN-N 5 LNET 083004-TN-N FDN D...-05-...LN08 5.5 LNET 083204-TN-N 6 LNET 083504-TN-N FDN D...-06-...LN08 6.5 LNET 083704-TN-N Spare Parts Designation FDN D063-03-16-LN08 SR 114-018-L2.50 T-6/5 T-6/3-L SR M8X25DIN912 FDN D063-04-16-LN08 SR 114-018-L3.40 T-6/5 T-6/3-L SR M8X25DIN912 FDN D063-05-16-LN08 SR 114-018-L4.40 T-6/5 T-6/3-L SR M8X25DIN912 FDN D063-06-16-LN08 SR 114-018-L5.30 T-6/5 T-6/3-L SR M8X25DIN912 FDN D080-03-22-LN08 SR 114-018-L2.50 T-6/5 T-6/3-L SR M10X25 DIN912 FDN D080-04-22-LN08 SR 114-018-L3.40 T-6/5 T-6/3-L SR M10X25 DIN912 FDN D080-05-22-LN08 SR 114-018-L4.40 T-6/5 T-6/3-L SR M10X25 DIN912 FDN D080-06-22-LN08 SR 114-018-L5.30 T-6/5 T-6/3-L SR M10X25 DIN912 FDN D100-03-27-LN08 SR 114-018-L2.50 T-6/5 T-6/3-L FDN D100-04-27-LN08 SR 114-018-L3.40 T-6/5 T-6/3-L FDN D100-05-27-LN08 SR 114-018-L4.40 T-6/5 T-6/3-L FDN D100-06-27-LN08 SR 114-018-L5.30 T-6/5 T-6/3-L 295
