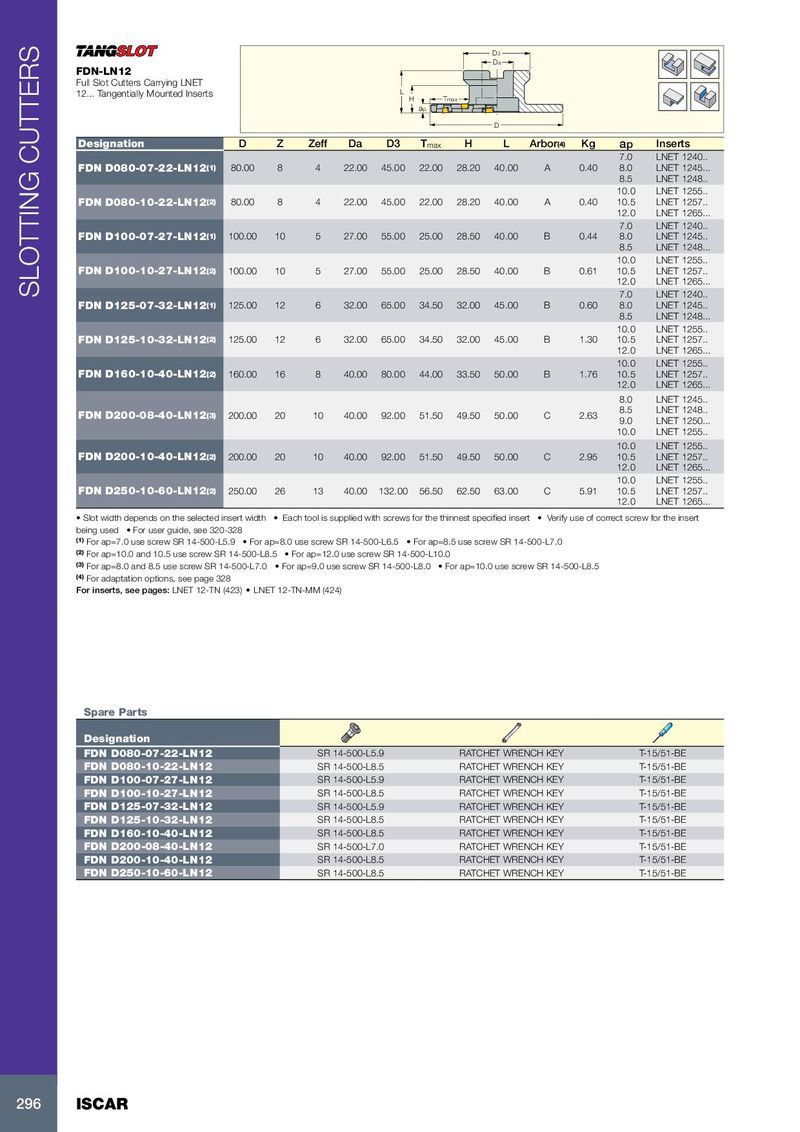

Каталог Iscar вращающийся инструмент 2017 - страница 300

D 3 Da FDN-LN12 Full Slot Cutters Carrying LNET 12... Tangentially Mounted Inserts L H Tmax ap D Designation D Z Zeff Da D3 T max H L Arbor (4) Kg ap Inserts 7.0 LNET 1240.. FDN D080-07-22-LN12 (1) 80.00 8 4 22.00 45.00 22.00 28.20 40.00 A 0.40 8.0 LNET 1245... 8.5 LNET 1248.. 10.0 LNET 1255.. FDN D080-10-22-LN12 (2) 80.00 8 4 22.00 45.00 22.00 28.20 40.00 A 0.40 10.5 LNET 1257.. 12.0 LNET 1265... 7.0 LNET 1240.. FDN D100-07-27-LN12 (1) 100.00 10 5 27.00 55.00 25.00 28.50 40.00 B 0.44 8.0 LNET 1245.. 8.5 LNET 1248... 10.0 LNET 1255.. FDN D100-10-27-LN12 (2) 100.00 10 5 27.00 55.00 25.00 28.50 40.00 B 0.61 10.5 LNET 1257.. 12.0 LNET 1265... SLOTTING CUTTERS 7.0 LNET 1240.. FDN D125-07-32-LN12 (1) 125.00 12 6 32.00 65.00 34.50 32.00 45.00 B 0.60 8.0 LNET 1245.. 8.5 LNET 1248... 10.0 LNET 1255.. FDN D125-10-32-LN12 (2) 125.00 12 6 32.00 65.00 34.50 32.00 45.00 B 1.30 10.5 LNET 1257.. 12.0 LNET 1265... 10.0 LNET 1255.. FDN D160-10-40-LN12 (2) 160.00 16 8 40.00 80.00 44.00 33.50 50.00 B 1.76 10.5 LNET 1257.. 12.0 LNET 1265... 8.0 LNET 1245.. 8.5 LNET 1248.. FDN D200-08-40-LN12 (3) 200.00 20 10 40.00 92.00 51.50 49.50 50.00 C 2.63 9.0 LNET 1250... 10.0 LNET 1255.. 10.0 LNET 1255.. FDN D200-10-40-LN12 (2) 200.00 20 10 40.00 92.00 51.50 49.50 50.00 C 2.95 10.5 LNET 1257.. 12.0 LNET 1265... 10.0 LNET 1255.. FDN D250-10-60-LN12 (2) 250.00 26 13 40.00 132.00 56.50 62.50 63.00 C 5.91 10.5 LNET 1257.. 12.0 LNET 1265... • Slot width depends on the selected insert width • Each tool is supplied with screws for the thinnest specified insert • Verify use of correct screw for the insert being used • For user guide, see 320-328 (1) For ap=7.0 use screw SR 14-500-L5.9 • For ap=8.0 use screw SR 14-500-L6.5 • For ap=8.5 use screw SR 14-500-L7.0 (2) For ap=10.0 and 10.5 use screw SR 14-500-L8.5 • For ap=12.0 use screw SR 14-500-L10.0 (3) For ap=8.0 and 8.5 use screw SR 14-500-L7.0 • For ap=9.0 use screw SR 14-500-L8.0 • For ap=10.0 use screw SR 14-500-L8.5 (4) For adaptation options, see page 328 For inserts, see pages: LNET 12-TN (423) • LNET 12-TN-MM (424) Spare Parts Designation FDN D080-07-22-LN12 SR 14-500-L5.9 RATCHET WRENCH KEY T-15/51-BE FDN D080-10-22-LN12 SR 14-500-L8.5 RATCHET WRENCH KEY T-15/51-BE FDN D100-07-27-LN12 SR 14-500-L5.9 RATCHET WRENCH KEY T-15/51-BE FDN D100-10-27-LN12 SR 14-500-L8.5 RATCHET WRENCH KEY T-15/51-BE FDN D125-07-32-LN12 SR 14-500-L5.9 RATCHET WRENCH KEY T-15/51-BE FDN D125-10-32-LN12 SR 14-500-L8.5 RATCHET WRENCH KEY T-15/51-BE FDN D160-10-40-LN12 SR 14-500-L8.5 RATCHET WRENCH KEY T-15/51-BE FDN D200-08-40-LN12 SR 14-500-L7.0 RATCHET WRENCH KEY T-15/51-BE FDN D200-10-40-LN12 SR 14-500-L8.5 RATCHET WRENCH KEY T-15/51-BE FDN D250-10-60-LN12 SR 14-500-L8.5 RATCHET WRENCH KEY T-15/51-BE 296 ISCAR
