Каталог Iscar вращающийся инструмент 2017 - страница 292

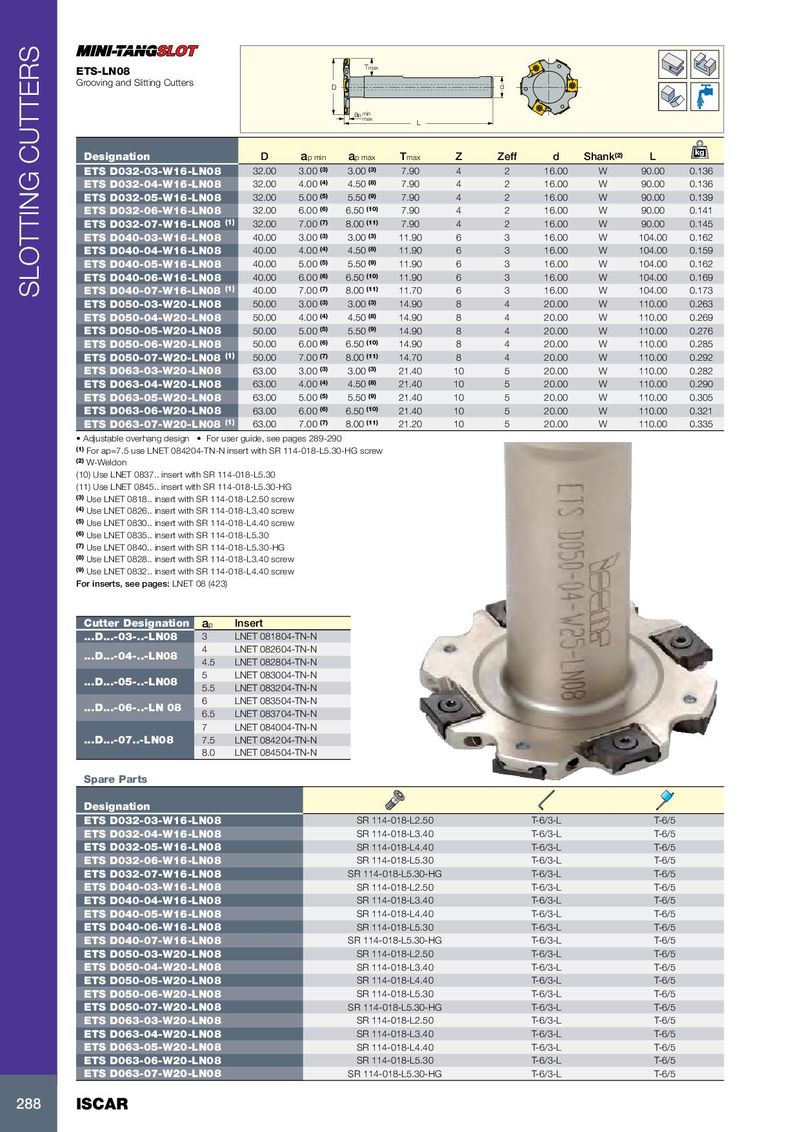

Tmax ETS-LN08 Grooving and Slitting Cutters D d ap min max L kg Designation D a p min a p max T max Z Zeff d Shank (2) L ETS D032-03-W16-LN08 32.00 3.00 (3) 3.00 (3) 7.90 4 2 16.00 W 90.00 0.136 ETS D032-04-W16-LN08 32.00 4.00 (4) 4.50 (8) 7.90 4 2 16.00 W 90.00 0.136 ETS D032-05-W16-LN08 32.00 5.00 (5) 5.50 (9) 7.90 4 2 16.00 W 90.00 0.139 ETS D032-06-W16-LN08 32.00 6.00 (6) 6.50 (10) 7.90 4 2 16.00 W 90.00 0.141 ETS D032-07-W16-LN08 (1) 32.00 7.00 (7) 8.00 (11) 7.90 4 2 16.00 W 90.00 0.145 ETS D040-03-W16-LN08 40.00 3.00 (3) 3.00 (3) 11.90 6 3 16.00 W 104.00 0.162 ETS D040-04-W16-LN08 40.00 4.00 (4) 4.50 (8) 11.90 6 3 16.00 W 104.00 0.159 ETS D040-05-W16-LN08 40.00 5.00 (5) 5.50 (9) 11.90 6 3 16.00 W 104.00 0.162 ETS D040-06-W16-LN08 40.00 6.00 (6) 6.50 (10) 11.90 6 3 16.00 W 104.00 0.169 SLOTTING CUTTERS ETS D040-07-W16-LN08 (1) 40.00 7.00 (7) 8.00 (11) 11.70 6 3 16.00 W 104.00 0.173 ETS D050-03-W20-LN08 50.00 3.00 (3) 3.00 (3) 14.90 8 4 20.00 W 110.00 0.263 ETS D050-04-W20-LN08 50.00 4.00 (4) 4.50 (8) 14.90 8 4 20.00 W 110.00 0.269 ETS D050-05-W20-LN08 50.00 5.00 (5) 5.50 (9) 14.90 8 4 20.00 W 110.00 0.276 ETS D050-06-W20-LN08 50.00 6.00 (6) 6.50 (10) 14.90 8 4 20.00 W 110.00 0.285 ETS D050-07-W20-LN08 (1) 50.00 7.00 (7) 8.00 (11) 14.70 8 4 20.00 W 110.00 0.292 ETS D063-03-W20-LN08 63.00 3.00 (3) 3.00 (3) 21.40 10 5 20.00 W 110.00 0.282 ETS D063-04-W20-LN08 63.00 4.00 (4) 4.50 (8) 21.40 10 5 20.00 W 110.00 0.290 ETS D063-05-W20-LN08 63.00 5.00 (5) 5.50 (9) 21.40 10 5 20.00 W 110.00 0.305 ETS D063-06-W20-LN08 63.00 6.00 (6) 6.50 (10) 21.40 10 5 20.00 W 110.00 0.321 ETS D063-07-W20-LN08 (1) 63.00 7.00 (7) 8.00 (11) 21.20 10 5 20.00 W 110.00 0.335 • Adjustable overhang design • For user guide, see pages 289-290 (1) For ap=7.5 use LNET 084204-TN-N insert with SR 114-018-L5.30-HG screw (2) W-Weldon (10) Use LNET 0837.. insert with SR 114-018-L5.30 (11) Use LNET 0845.. insert with SR 114-018-L5.30-HG (3) Use LNET 0818.. insert with SR 114-018-L2.50 screw (4) Use LNET 0826.. insert with SR 114-018-L3.40 screw (5) Use LNET 0830.. insert with SR 114-018-L4.40 screw (6) Use LNET 0835.. insert with SR 114-018-L5.30 (7) Use LNET 0840.. insert with SR 114-018-L5.30-HG (8) Use LNET 0828.. insert with SR 114-018-L3.40 screw (9) Use LNET 0832.. insert with SR 114-018-L4.40 screw For inserts, see pages: LNET 08 (423) Cutter Designation a p Insert ...D...-03-..-LN08 3 LNET 081804-TN-N 4 LNET 082604-TN-N ...D...-04-..-LN08 4.5 LNET 082804-TN-N 5 LNET 083004-TN-N ...D...-05-..-LN08 5.5 LNET 083204-TN-N 6 LNET 083504-TN-N ...D...-06-..-LN 08 6.5 LNET 083704-TN-N 7 LNET 084004-TN-N ...D...-07..-LN08 7.5 LNET 084204-TN-N 8.0 LNET 084504-TN-N Spare Parts Designation ETS D032-03-W16-LN08 SR 114-018-L2.50 T-6/3-L T-6/5 ETS D032-04-W16-LN08 SR 114-018-L3.40 T-6/3-L T-6/5 ETS D032-05-W16-LN08 SR 114-018-L4.40 T-6/3-L T-6/5 ETS D032-06-W16-LN08 SR 114-018-L5.30 T-6/3-L T-6/5 ETS D032-07-W16-LN08 SR 114-018-L5.30-HG T-6/3-L T-6/5 ETS D040-03-W16-LN08 SR 114-018-L2.50 T-6/3-L T-6/5 ETS D040-04-W16-LN08 SR 114-018-L3.40 T-6/3-L T-6/5 ETS D040-05-W16-LN08 SR 114-018-L4.40 T-6/3-L T-6/5 ETS D040-06-W16-LN08 SR 114-018-L5.30 T-6/3-L T-6/5 ETS D040-07-W16-LN08 SR 114-018-L5.30-HG T-6/3-L T-6/5 ETS D050-03-W20-LN08 SR 114-018-L2.50 T-6/3-L T-6/5 ETS D050-04-W20-LN08 SR 114-018-L3.40 T-6/3-L T-6/5 ETS D050-05-W20-LN08 SR 114-018-L4.40 T-6/3-L T-6/5 ETS D050-06-W20-LN08 SR 114-018-L5.30 T-6/3-L T-6/5 ETS D050-07-W20-LN08 SR 114-018-L5.30-HG T-6/3-L T-6/5 ETS D063-03-W20-LN08 SR 114-018-L2.50 T-6/3-L T-6/5 ETS D063-04-W20-LN08 SR 114-018-L3.40 T-6/3-L T-6/5 ETS D063-05-W20-LN08 SR 114-018-L4.40 T-6/3-L T-6/5 ETS D063-06-W20-LN08 SR 114-018-L5.30 T-6/3-L T-6/5 ETS D063-07-W20-LN08 SR 114-018-L5.30-HG T-6/3-L T-6/5 288 ISCAR
