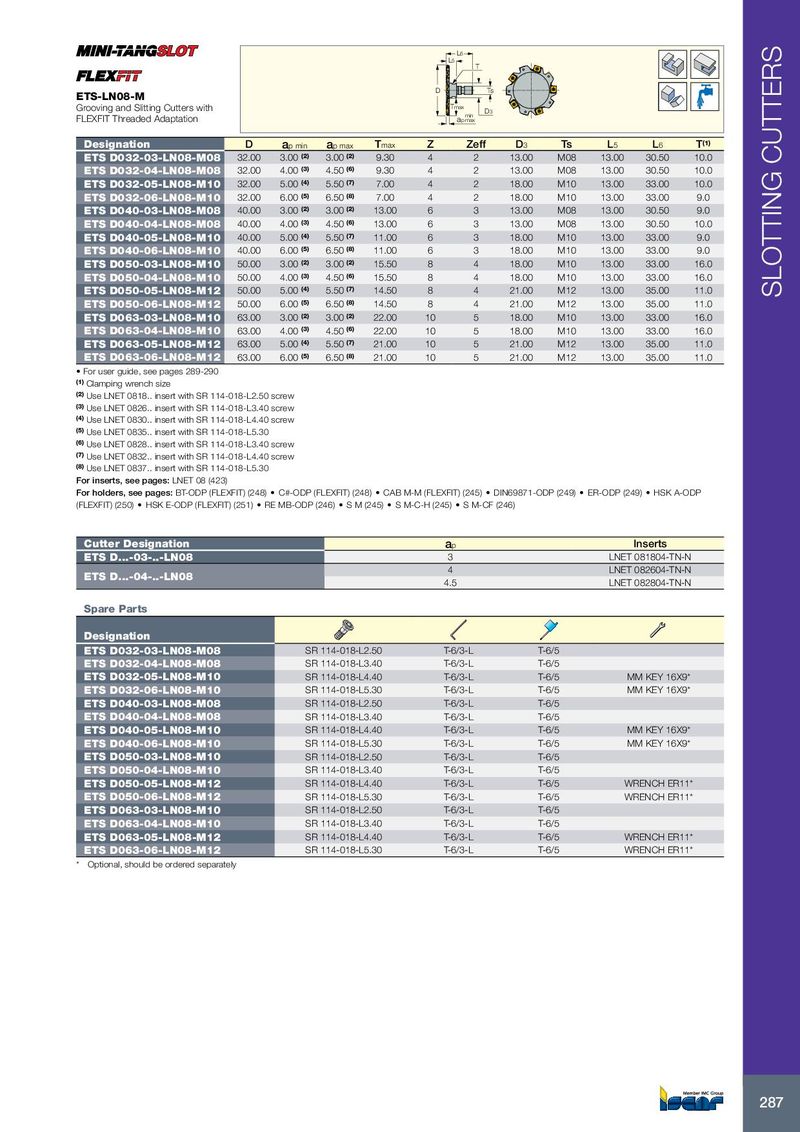

L6 L5 T D Ts ETS-LN08-M Grooving and Slitting Cutters with Tmax min D3 FLEXFIT Threaded Adaptation ap max Designation D a p min a p max T max Z Zeff D 3 Ts L 5 L 6 T (1) ETS D032-03-LN08-M08 32.00 3.00 (2) 3.00 (2) 9.30 4 2 13.00 M08 13.00 30.50 10.0 ETS D032-04-LN08-M08 32.00 4.00 (3) 4.50 (6) 9.30 4 2 13.00 M08 13.00 30.50 10.0 ETS D032-05-LN08-M10 32.00 5.00 (4) 5.50 (7) 7.00 4 2 18.00 M10 13.00 33.00 10.0 ETS D032-06-LN08-M10 32.00 6.00 (5) 6.50 (8) 7.00 4 2 18.00 M10 13.00 33.00 9.0 ETS D040-03-LN08-M08 40.00 3.00 (2) 3.00 (2) 13.00 6 3 13.00 M08 13.00 30.50 9.0 ETS D040-04-LN08-M08 40.00 4.00 (3) 4.50 (6) 13.00 6 3 13.00 M08 13.00 30.50 10.0 ETS D040-05-LN08-M10 40.00 5.00 (4) 5.50 (7) 11.00 6 3 18.00 M10 13.00 33.00 9.0 ETS D040-06-LN08-M10 40.00 6.00 (5) 6.50 (8) 11.00 6 3 18.00 M10 13.00 33.00 9.0 ETS D050-03-LN08-M10 50.00 3.00 (2) 3.00 (2) 15.50 8 4 18.00 M10 13.00 33.00 16.0 ETS D050-04-LN08-M10 50.00 4.00 (3) 4.50 (6) 15.50 8 4 18.00 M10 13.00 33.00 16.0 ETS D050-05-LN08-M12 50.00 5.00 (4) 5.50 (7) 14.50 8 4 21.00 M12 13.00 35.00 11.0 SLOTTING CUTTERS ETS D050-06-LN08-M12 50.00 6.00 (5) 6.50 (8) 14.50 8 4 21.00 M12 13.00 35.00 11.0 ETS D063-03-LN08-M10 63.00 3.00 (2) 3.00 (2) 22.00 10 5 18.00 M10 13.00 33.00 16.0 ETS D063-04-LN08-M10 63.00 4.00 (3) 4.50 (6) 22.00 10 5 18.00 M10 13.00 33.00 16.0 ETS D063-05-LN08-M12 63.00 5.00 (4) 5.50 (7) 21.00 10 5 21.00 M12 13.00 35.00 11.0 ETS D063-06-LN08-M12 63.00 6.00 (5) 6.50 (8) 21.00 10 5 21.00 M12 13.00 35.00 11.0 • For user guide, see pages 289-290 (1) Clamping wrench size (2) Use LNET 0818.. insert with SR 114-018-L2.50 screw (3) Use LNET 0826.. insert with SR 114-018-L3.40 screw (4) Use LNET 0830.. insert with SR 114-018-L4.40 screw (5) Use LNET 0835.. insert with SR 114-018-L5.30 (6) Use LNET 0828.. insert with SR 114-018-L3.40 screw (7) Use LNET 0832.. insert with SR 114-018-L4.40 screw (8) Use LNET 0837.. insert with SR 114-018-L5.30 For inserts, see pages: LNET 08 (423) For holders, see pages: BT-ODP (FLEXFIT) (248) • C#-ODP (FLEXFIT) (248) • CAB M-M (FLEXFIT) (245) • DIN69871-ODP (249) • ER-ODP (249) • HSK A-ODP (FLEXFIT) (250) • HSK E-ODP (FLEXFIT) (251) • RE MB-ODP (246) • S M (245) • S M-C-H (245) • S M-CF (246) Cutter Designation a p Inserts ETS D...-03-..-LN08 3 LNET 081804-TN-N 4 LNET 082604-TN-N ETS D...-04-..-LN08 4.5 LNET 082804-TN-N Spare Parts Designation ETS D032-03-LN08-M08 SR 114-018-L2.50 T-6/3-L T-6/5 ETS D032-04-LN08-M08 SR 114-018-L3.40 T-6/3-L T-6/5 ETS D032-05-LN08-M10 SR 114-018-L4.40 T-6/3-L T-6/5 MM KEY 16X9* ETS D032-06-LN08-M10 SR 114-018-L5.30 T-6/3-L T-6/5 MM KEY 16X9* ETS D040-03-LN08-M08 SR 114-018-L2.50 T-6/3-L T-6/5 ETS D040-04-LN08-M08 SR 114-018-L3.40 T-6/3-L T-6/5 ETS D040-05-LN08-M10 SR 114-018-L4.40 T-6/3-L T-6/5 MM KEY 16X9* ETS D040-06-LN08-M10 SR 114-018-L5.30 T-6/3-L T-6/5 MM KEY 16X9* ETS D050-03-LN08-M10 SR 114-018-L2.50 T-6/3-L T-6/5 ETS D050-04-LN08-M10 SR 114-018-L3.40 T-6/3-L T-6/5 ETS D050-05-LN08-M12 SR 114-018-L4.40 T-6/3-L T-6/5 WRENCH ER11* ETS D050-06-LN08-M12 SR 114-018-L5.30 T-6/3-L T-6/5 WRENCH ER11* ETS D063-03-LN08-M10 SR 114-018-L2.50 T-6/3-L T-6/5 ETS D063-04-LN08-M10 SR 114-018-L3.40 T-6/3-L T-6/5 ETS D063-05-LN08-M12 SR 114-018-L4.40 T-6/3-L T-6/5 WRENCH ER11* ETS D063-06-LN08-M12 SR 114-018-L5.30 T-6/3-L T-6/5 WRENCH ER11* * Optional, should be ordered separately 287
