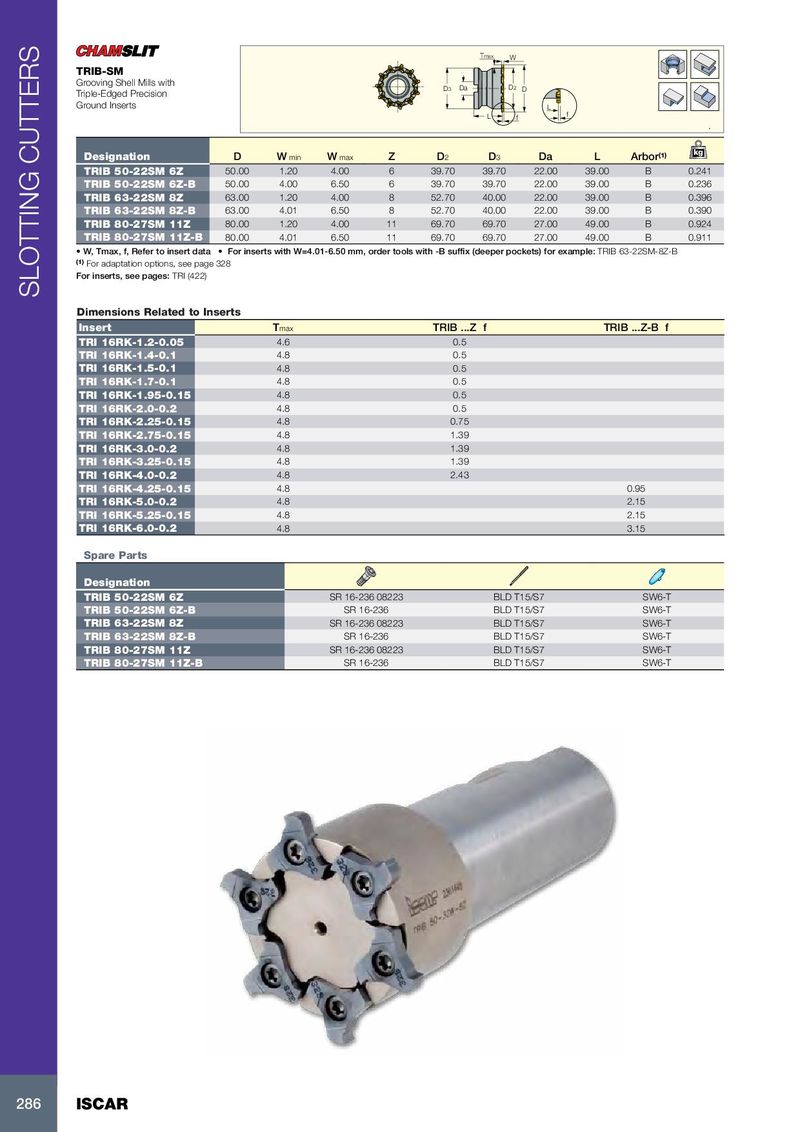

Каталог Iscar вращающийся инструмент 2017 - страница 290

Tmax W TRIB-SM d D Grooving Shell Mills with D 3 Da D2 D Triple-Edged Precision Ground Inserts H L L f f . Designation D W min W max Z D 2 D 3 Da L Arbor (1) kg TRIB 50-22SM 6Z 50.00 1.20 4.00 6 39.70 39.70 22.00 39.00 B 0.241 TRIB 50-22SM 6Z-B 50.00 4.00 6.50 6 39.70 39.70 22.00 39.00 B 0.236 TRIB 63-22SM 8Z 63.00 1.20 4.00 8 52.70 40.00 22.00 39.00 B 0.396 TRIB 63-22SM 8Z-B 63.00 4.01 6.50 8 52.70 40.00 22.00 39.00 B 0.390 TRIB 80-27SM 11Z 80.00 1.20 4.00 11 69.70 69.70 27.00 49.00 B 0.924 TRIB 80-27SM 11Z-B 80.00 4.01 6.50 11 69.70 69.70 27.00 49.00 B 0.911 • W, Tmax, f, Refer to insert data • For inserts with W=4.01-6.50 mm, order tools with -B suffix (deeper pockets) for example: TRIB 63-22SM-8Z-B (1) For adaptation options, see page 328 For inserts, see pages: TRI (422) SLOTTING CUTTERS Dimensions Related to Inserts Insert T max TRIB ...Z f TRIB ...Z-B f TRI 16RK-1.2-0.05 4.6 0.5 TRI 16RK-1.4-0.1 4.8 0.5 TRI 16RK-1.5-0.1 4.8 0.5 TRI 16RK-1.7-0.1 4.8 0.5 TRI 16RK-1.95-0.15 4.8 0.5 TRI 16RK-2.0-0.2 4.8 0.5 TRI 16RK-2.25-0.15 4.8 0.75 TRI 16RK-2.75-0.15 4.8 1.39 TRI 16RK-3.0-0.2 4.8 1.39 TRI 16RK-3.25-0.15 4.8 1.39 TRI 16RK-4.0-0.2 4.8 2.43 TRI 16RK-4.25-0.15 4.8 0.95 TRI 16RK-5.0-0.2 4.8 2.15 TRI 16RK-5.25-0.15 4.8 2.15 TRI 16RK-6.0-0.2 4.8 3.15 Spare Parts Designation TRIB 50-22SM 6Z SR 16-236 08223 BLD T15/S7 SW6-T TRIB 50-22SM 6Z-B SR 16-236 BLD T15/S7 SW6-T TRIB 63-22SM 8Z SR 16-236 08223 BLD T15/S7 SW6-T TRIB 63-22SM 8Z-B SR 16-236 BLD T15/S7 SW6-T TRIB 80-27SM 11Z SR 16-236 08223 BLD T15/S7 SW6-T TRIB 80-27SM 11Z-B SR 16-236 BLD T15/S7 SW6-T 286 ISCAR
