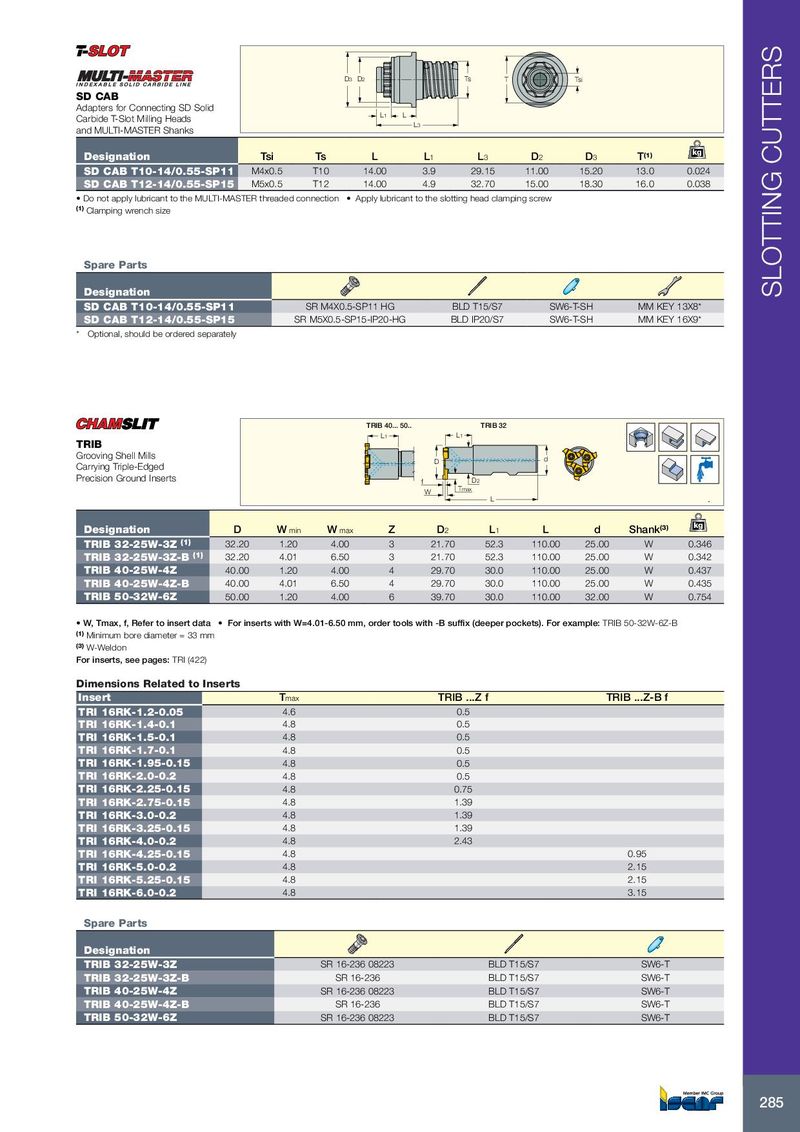

Каталог Iscar вращающийся инструмент 2017 - страница 289

D3 D2 Ts T Tsi SD CAB Adapters for Connecting SD Solid L1 L Carbide T-Slot Milling Heads L3 and MULTI-MASTER Shanks kg Designation Tsi Ts L L 1 L 3 D 2 D 3 T (1) SD CAB T10-14/0.55-SP11 M4x0.5 T10 14.00 3.9 29.15 11.00 15.20 13.0 0.024 SD CAB T12-14/0.55-SP15 M5x0.5 T12 14.00 4.9 32.70 15.00 18.30 16.0 0.038 • Do not apply lubricant to the MULTI-MASTER threaded connection • Apply lubricant to the slotting head clamping screw (1) Clamping wrench size Spare Parts Designation SLOTTING CUTTERS SD CAB T10-14/0.55-SP11 SR M4X0.5-SP11 HG BLD T15/S7 SW6-T-SH MM KEY 13X8* SD CAB T12-14/0.55-SP15 SR M5X0.5-SP15-IP20-HG BLD IP20/S7 SW6-T-SH MM KEY 16X9* * Optional, should be ordered separately TRIB 40... 50.. TRIB 32 L1 L1 TRIB Grooving Shell Mills D d Carrying Triple-Edged Precision Ground Inserts f D2 W Tmax L . Designation D W min W max Z D 2 L 1 L d Shank (3) kg TRIB 32-25W-3Z (1) 32.20 1.20 4.00 3 21.70 52.3 110.00 25.00 W 0.346 TRIB 32-25W-3Z-B (1) 32.20 4.01 6.50 3 21.70 52.3 110.00 25.00 W 0.342 TRIB 40-25W-4Z 40.00 1.20 4.00 4 29.70 30.0 110.00 25.00 W 0.437 TRIB 40-25W-4Z-B 40.00 4.01 6.50 4 29.70 30.0 110.00 25.00 W 0.435 TRIB 50-32W-6Z 50.00 1.20 4.00 6 39.70 30.0 110.00 32.00 W 0.754 • W, Tmax, f, Refer to insert data • For inserts with W=4.01-6.50 mm, order tools with -B suffix (deeper pockets). For example: TRIB 50-32W-6Z-B (1) Minimum bore diameter = 33 mm (3) W-Weldon For inserts, see pages: TRI (422) Dimensions Related to Inserts Insert T max TRIB ...Z f TRIB ...Z-B f TRI 16RK-1.2-0.05 4.6 0.5 TRI 16RK-1.4-0.1 4.8 0.5 TRI 16RK-1.5-0.1 4.8 0.5 TRI 16RK-1.7-0.1 4.8 0.5 TRI 16RK-1.95-0.15 4.8 0.5 TRI 16RK-2.0-0.2 4.8 0.5 TRI 16RK-2.25-0.15 4.8 0.75 TRI 16RK-2.75-0.15 4.8 1.39 TRI 16RK-3.0-0.2 4.8 1.39 TRI 16RK-3.25-0.15 4.8 1.39 TRI 16RK-4.0-0.2 4.8 2.43 TRI 16RK-4.25-0.15 4.8 0.95 TRI 16RK-5.0-0.2 4.8 2.15 TRI 16RK-5.25-0.15 4.8 2.15 TRI 16RK-6.0-0.2 4.8 3.15 Spare Parts Designation TRIB 32-25W-3Z SR 16-236 08223 BLD T15/S7 SW6-T TRIB 32-25W-3Z-B SR 16-236 BLD T15/S7 SW6-T TRIB 40-25W-4Z SR 16-236 08223 BLD T15/S7 SW6-T TRIB 40-25W-4Z-B SR 16-236 BLD T15/S7 SW6-T TRIB 50-32W-6Z SR 16-236 08223 BLD T15/S7 SW6-T 285
