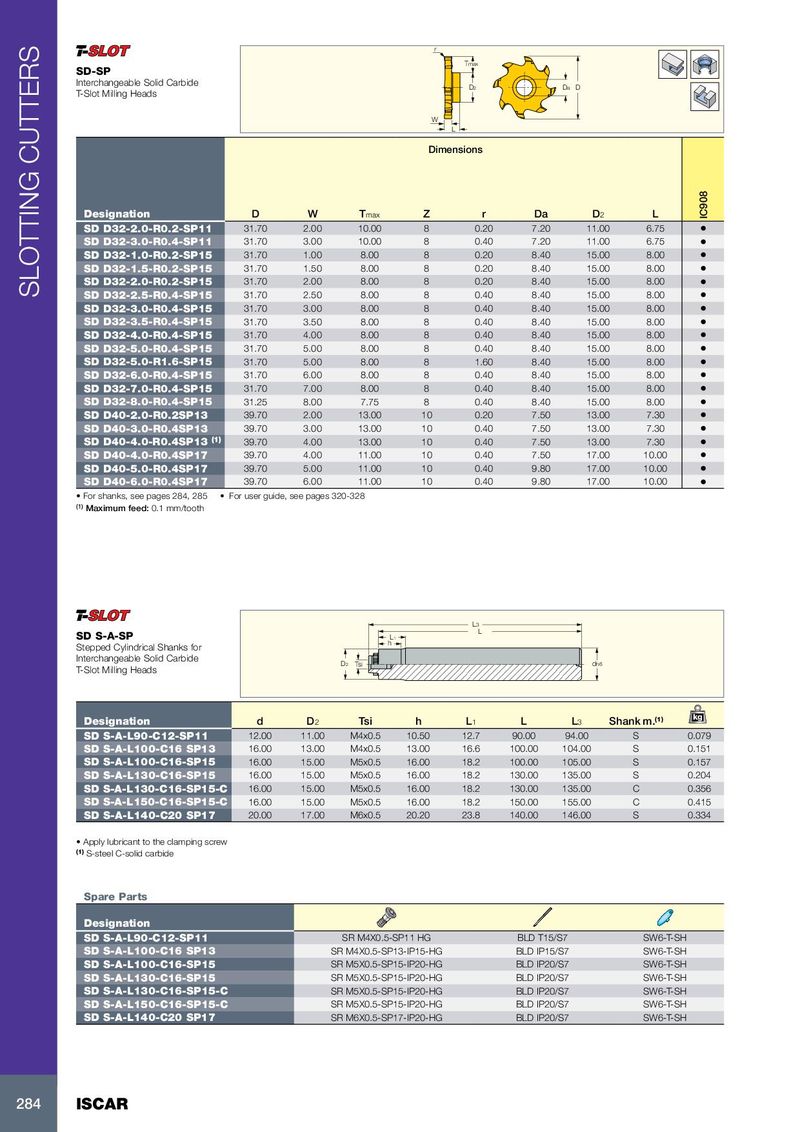

Каталог Iscar вращающийся инструмент 2017 - страница 288

r Tmax SD-SP Interchangeable Solid Carbide D2 Da D T-Slot Milling Heads W L Dimensions Designation D W T max Z r Da D 2 L IC908 SD D32-2.0-R0.2-SP11 31.70 2.00 10.00 8 0.20 7.20 11.00 6.75 • SD D32-3.0-R0.4-SP11 31.70 3.00 10.00 8 0.40 7.20 11.00 6.75 • SD D32-1.0-R0.2-SP15 31.70 1.00 8.00 8 0.20 8.40 15.00 8.00 • SD D32-1.5-R0.2-SP15 31.70 1.50 8.00 8 0.20 8.40 15.00 8.00 • SD D32-2.0-R0.2-SP15 31.70 2.00 8.00 8 0.20 8.40 15.00 8.00 • SLOTTING CUTTERS SD D32-2.5-R0.4-SP15 31.70 2.50 8.00 8 0.40 8.40 15.00 8.00 • SD D32-3.0-R0.4-SP15 31.70 3.00 8.00 8 0.40 8.40 15.00 8.00 • SD D32-3.5-R0.4-SP15 31.70 3.50 8.00 8 0.40 8.40 15.00 8.00 • SD D32-4.0-R0.4-SP15 31.70 4.00 8.00 8 0.40 8.40 15.00 8.00 • SD D32-5.0-R0.4-SP15 31.70 5.00 8.00 8 0.40 8.40 15.00 8.00 • SD D32-5.0-R1.6-SP15 31.70 5.00 8.00 8 1.60 8.40 15.00 8.00 • SD D32-6.0-R0.4-SP15 31.70 6.00 8.00 8 0.40 8.40 15.00 8.00 • SD D32-7.0-R0.4-SP15 31.70 7.00 8.00 8 0.40 8.40 15.00 8.00 • SD D32-8.0-R0.4-SP15 31.25 8.00 7.75 8 0.40 8.40 15.00 8.00 • SD D40-2.0-R0.2SP13 39.70 2.00 13.00 10 0.20 7.50 13.00 7.30 • SD D40-3.0-R0.4SP13 39.70 3.00 13.00 10 0.40 7.50 13.00 7.30 • SD D40-4.0-R0.4SP13 (1) 39.70 4.00 13.00 10 0.40 7.50 13.00 7.30 • SD D40-4.0-R0.4SP17 39.70 4.00 11.00 10 0.40 7.50 17.00 10.00 • SD D40-5.0-R0.4SP17 39.70 5.00 11.00 10 0.40 9.80 17.00 10.00 • SD D40-6.0-R0.4SP17 39.70 6.00 11.00 10 0.40 9.80 17.00 10.00 • • For shanks, see pages 284, 285 • For user guide, see pages 320-328 (1) Maximum feed: 0.1 mm/tooth L3 L SD S-A-SP L1 h Stepped Cylindrical Shanks for Interchangeable Solid Carbide D2 Tsi dh6 T-Slot Milling Heads kg Designation d D 2 Tsi h L 1 L L 3 Shank m. (1) SD S-A-L90-C12-SP11 12.00 11.00 M4x0.5 10.50 12.7 90.00 94.00 S 0.079 SD S-A-L100-C16 SP13 16.00 13.00 M4x0.5 13.00 16.6 100.00 104.00 S 0.151 SD S-A-L100-C16-SP15 16.00 15.00 M5x0.5 16.00 18.2 100.00 105.00 S 0.157 SD S-A-L130-C16-SP15 16.00 15.00 M5x0.5 16.00 18.2 130.00 135.00 S 0.204 SD S-A-L130-C16-SP15-C 16.00 15.00 M5x0.5 16.00 18.2 130.00 135.00 C 0.356 SD S-A-L150-C16-SP15-C 16.00 15.00 M5x0.5 16.00 18.2 150.00 155.00 C 0.415 SD S-A-L140-C20 SP17 20.00 17.00 M6x0.5 20.20 23.8 140.00 146.00 S 0.334 • Apply lubricant to the clamping screw (1) S-steel C-solid carbide Spare Parts Designation SD S-A-L90-C12-SP11 SR M4X0.5-SP11 HG BLD T15/S7 SW6-T-SH SD S-A-L100-C16 SP13 SR M4X0.5-SP13-IP15-HG BLD IP15/S7 SW6-T-SH SD S-A-L100-C16-SP15 SR M5X0.5-SP15-IP20-HG BLD IP20/S7 SW6-T-SH SD S-A-L130-C16-SP15 SR M5X0.5-SP15-IP20-HG BLD IP20/S7 SW6-T-SH SD S-A-L130-C16-SP15-C SR M5X0.5-SP15-IP20-HG BLD IP20/S7 SW6-T-SH SD S-A-L150-C16-SP15-C SR M5X0.5-SP15-IP20-HG BLD IP20/S7 SW6-T-SH SD S-A-L140-C20 SP17 SR M6X0.5-SP17-IP20-HG BLD IP20/S7 SW6-T-SH 284 ISCAR
