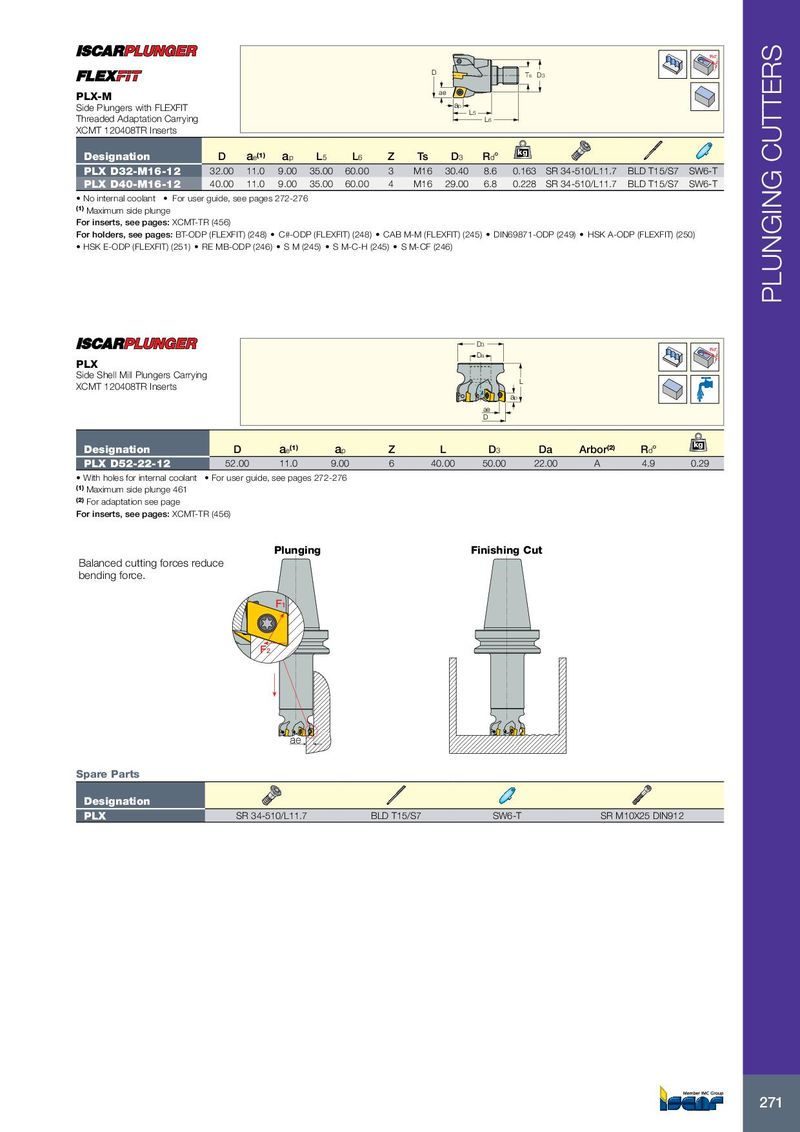

Rd° D Ts D3 ae PLX-M Side Plungers with FLEXFIT ap L5 Threaded Adaptation Carrying L6 XCMT 120408TR Inserts kg Designation D a e (1) a p L 5 L 6 Z Ts D 3 R d ° PLX D32-M16-12 32.00 11.0 9.00 35.00 60.00 3 M16 30.40 8.6 0.163 SR 34-510/L11.7 BLD T15/S7 SW6-T PLX D40-M16-12 40.00 11.0 9.00 35.00 60.00 4 M16 29.00 6.8 0.228 SR 34-510/L11.7 BLD T15/S7 SW6-T • No internal coolant • For user guide, see pages 272-276 (1) Maximum side plunge For inserts, see pages: XCMT-TR (456) For holders, see pages: BT-ODP (FLEXFIT) (248) • C#-ODP (FLEXFIT) (248) • CAB M-M (FLEXFIT) (245) • DIN69871-ODP (249) • HSK A-ODP (FLEXFIT) (250) • HSK E-ODP (FLEXFIT) (251) • RE MB-ODP (246) • S M (245) • S M-C-H (245) • S M-CF (246) PLUNGING CUTTERS D 3 Rd° Da PLX Side Shell Mill Plungers Carrying L XCMT 120408TR Inserts ap ae D Designation D a e (1) a p Z L D 3 Da Arbor (2) kg R d ° PLX D52-22-12 52.00 11.0 9.00 6 40.00 50.00 22.00 A 4.9 0.29 • With holes for internal coolant • For user guide, see pages 272-276 (1) Maximum side plunge 461 (2) For adaptation see page For inserts, see pages: XCMT-TR (456) Plunging Finishing Cut Balanced cutting forces reduce bending force. F 1 F 2 ae Spare Parts Designation PLX SR 34-510/L11.7 BLD T15/S7 SW6-T SR M10X25 DIN912 271
