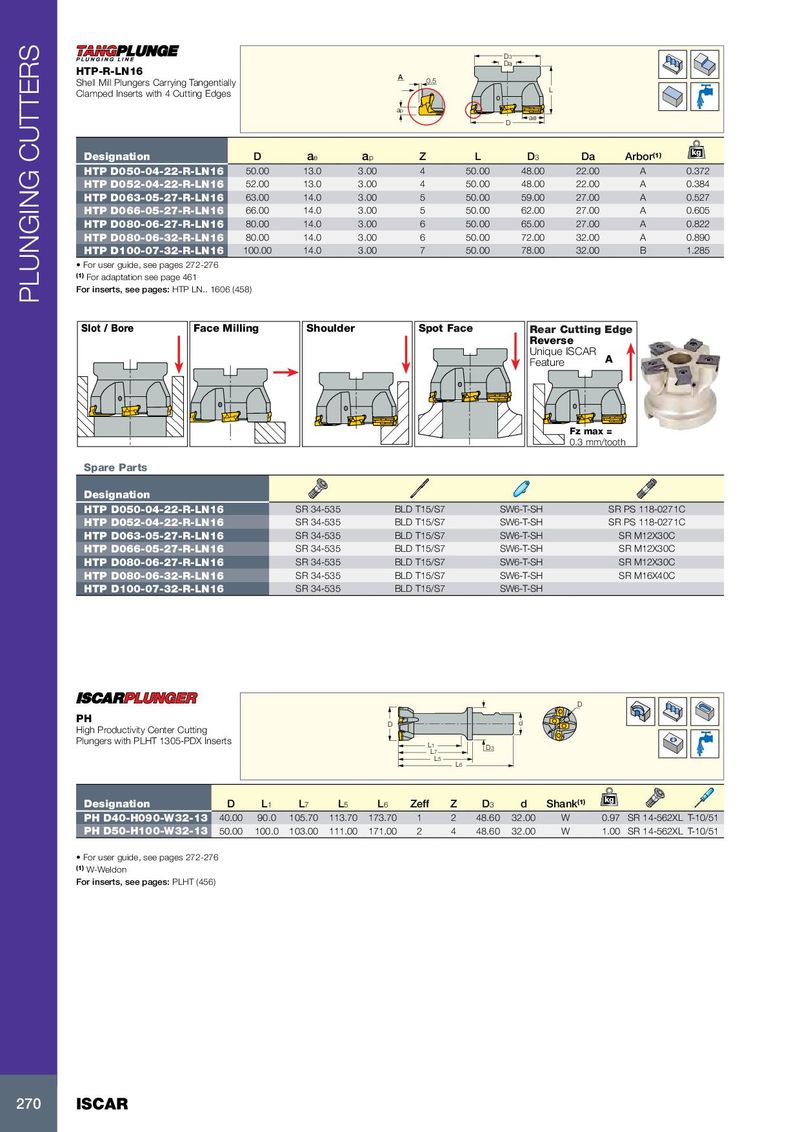

| HTP-R-LN16 | A 05 | D D | 3 a | |||||
| Shell Mill Plungers Carrying Tangentially Clamped Inserts with 4 Cutting Edges | ap . | L D ae | ||||||
| Designation | D | ae | ap | Z | L | D3 | Da | Arbor(1) kg |
| HTP D050-04-22-R-LN16 | 50.00 | 13.0 | 3.00 | 4 | 50.00 | 48.00 | 22.00 | A 0.372 |
| HTP D052-04-22-R-LN16 | 52.00 | 13.0 | 3.00 | 4 | 50.00 | 48.00 | 22.00 | A 0.384 |
| HTP D063-05-27-R-LN16 | 63.00 | 14.0 | 3.00 | 5 | 50.00 | 59.00 | 27.00 | A 0.527 |
| HTP D066-05-27-R-LN16 | 66.00 | 14.0 | 3.00 | 5 | 50.00 | 62.00 | 27.00 | A 0.605 |
| HTP D080-06-27-R-LN16 | 80.00 | 14.0 | 3.00 | 6 | 50.00 | 65.00 | 27.00 | A 0.822 |
| HTP D080-06-32-R-LN16 | 80.00 | 14.0 | 3.00 | 6 | 50.00 | 72.00 | 32.00 | A 0.890 |
| HTP D100-07-32-R-LN16 | 100.00 | 14.0 | 3.00 | 7 | 50.00 | 78.00 | 32.00 | B 1.285 |
- For user guide, see pages 272-276
(1) For adaptation see page 461 For inserts, see pages: HTP LN.. 1606 (458)
Slot / Bore Face Milling
Shoulder
Spot Face
Rear Cutting Edge
Reverse
Unique ISCAR
Feature A
Fz max = 0.3 mm/tooth
| Spare Parts | ||||
| Designation | ||||
| HTP D050-04-22-R-LN16 | SR 34-535 | BLD T15/S7 | SW6-T-SH | SR PS 118-0271C |
| HTP D052-04-22-R-LN16 | SR 34-535 | BLD T15/S7 | SW6-T-SH | SR PS 118-0271C |
| HTP D063-05-27-R-LN16 | SR 34-535 | BLD T15/S7 | SW6-T-SH | SR M12X30C |
| HTP D066-05-27-R-LN16 | SR 34-535 | BLD T15/S7 | SW6-T-SH | SR M12X30C |
| HTP D080-06-27-R-LN16 | SR 34-535 | BLD T15/S7 | SW6-T-SH | SR M12X30C |
| HTP D080-06-32-R-LN16 | SR 34-535 | BLD T15/S7 | SW6-T-SH | SR M16X40C |
| HTP D100-07-32-R-LN16 | SR 34-535 | BLD T15/S7 | SW6-T-SH |
D
PH
High Productivity Center Cutting D d
Plungers with PLHT 1305-PDX Inserts L1 D L 3 7
L 5 L 6
| Designation | D | L | L | L | L | Zeff | Z | D | d | Shank(1) | kg | ||||
| 1 | 7 | 5 | 6 | 3 | |||||||||||
| PH D40-H090-W32-13 | 40.00 | 90.0 | 105.70 113.70 173.70 | 1 | 2 | 48.60 | 32.00 | W | 0.97 SR 14-562XL T-10/51 | ||||||
| PH D50-H100-W32-13 | 50.00 | 100.0 103.00 111.00 171.00 | 2 | 4 | 48.60 | 32.00 | W | 1.00 SR 14-562XL T-10/51 |
- For user guide, see pages 272-276
(1) W-Weldon For inserts, see pages: PLHT (456)
