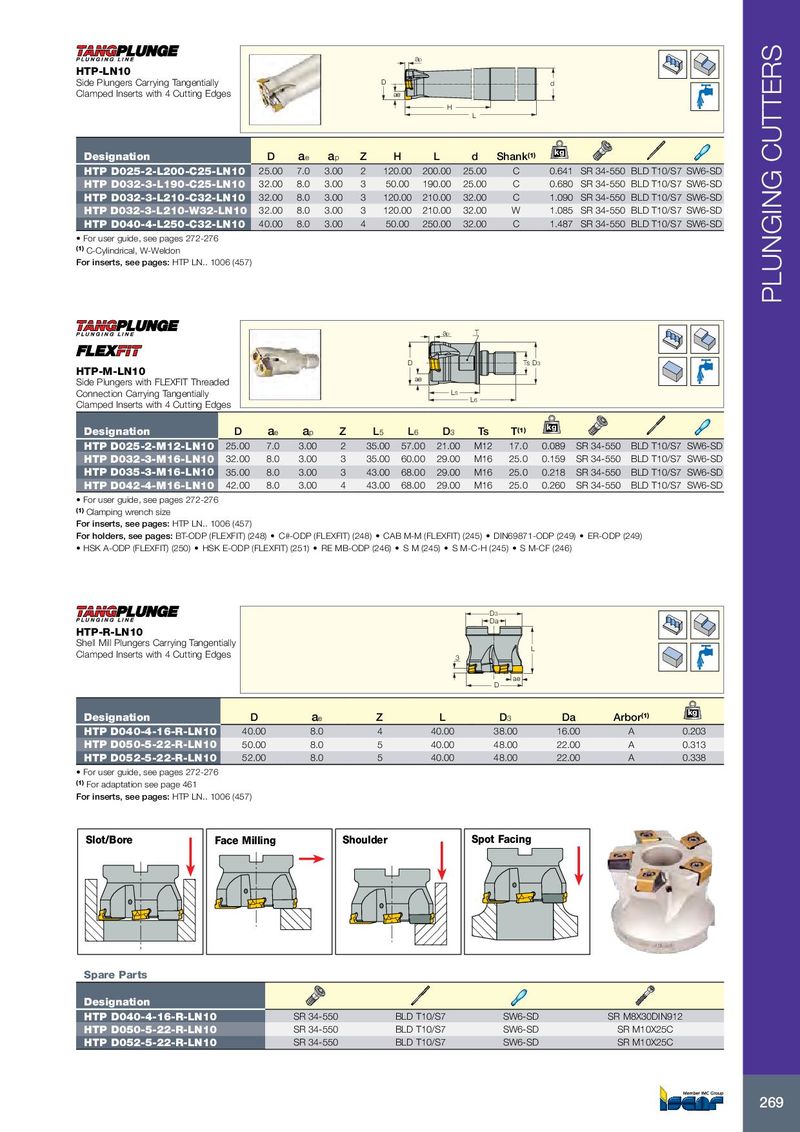

| HTP-LN10 Side Plungers Carrying Tangentially Clamped Inserts with 4 Cutting Edges | D ae | H ap | L | d | |||||||
| Designation | D | ae | ap | Z H | L | d | Shank(1) | kg | |||
| HTP D025-2-L200-C25-LN10 | 25.00 | 7.0 | 3.00 | 2 120.00 | 200.00 | 25.00 | C | 0.641 | SR 34-550 | BLD T10/S7 | SW6-SD |
| HTP D032-3-L190-C25-LN10 | 32.00 | 8.0 | 3.00 | 3 50.00 | 190.00 | 25.00 | C | 0.680 | SR 34-550 | BLD T10/S7 | SW6-SD |
| HTP D032-3-L210-C32-LN10 | 32.00 | 8.0 | 3.00 | 3 120.00 | 210.00 | 32.00 | C | 1.090 | SR 34-550 | BLD T10/S7 | SW6-SD |
| HTP D032-3-L210-W32-LN10 | 32.00 | 8.0 | 3.00 | 3 120.00 | 210.00 | 32.00 | W | 1.085 | SR 34-550 | BLD T10/S7 | SW6-SD |
| HTP D040-4-L250-C32-LN10 | 40.00 | 8.0 | 3.00 | 4 50.00 | 250.00 | 32.00 | C | 1.487 | SR 34-550 | BLD T10/S7 | SW6-SD |
- For user guide, see pages 272-276
(1) C-Cylindrical, W-Weldon For inserts, see pages: HTP LN.. 1006 (457)
| ap | T | |||||||||||
| HTP-M-LN10 Side Plungers with FLEXFIT Threade | d | D ae | Ts D3 | |||||||||
| Connection Carrying Tangentially Clamped Inserts with 4 CuttingEdge | s | L5 | L6 | |||||||||
| Designation | D | ae | ap | Z L5 | L6 | D3 | Ts | T(1) | kg | |||
| HTP D025-2-M12-LN10 | 25.00 | 7.0 | 3.00 | 2 35.00 | 57.00 | 21.00 | M12 | 17.0 | 0.089 | SR 34-550 | BLD T10/S7 | SW6-SD |
| HTP D032-3-M16-LN10 | 32.00 | 8.0 | 3.00 | 3 35.00 | 60.00 | 29.00 | M16 | 25.0 | 0.159 | SR 34-550 | BLD T10/S7 | SW6-SD |
| HTP D035-3-M16-LN10 | 35.00 | 8.0 | 3.00 | 3 43.00 | 68.00 | 29.00 | M16 | 25.0 | 0.218 | SR 34-550 | BLD T10/S7 | SW6-SD |
| HTP D042-4-M16-LN10 | 42.00 | 8.0 | 3.00 | 4 43.00 | 68.00 | 29.00 | M16 | 25.0 | 0.260 | SR 34-550 | BLD T10/S7 | SW6-SD |
- For user guide, see pages 272-276
(1) Clamping wrench size For inserts, see pages: HTP LN.. 1006 (457) For holders, see pages: BT-ODP (FLEXFIT) (248) C#-ODP (FLEXFIT) (248) CAB M-M (FLEXFIT) (245) DIN69871-ODP (249) ER-ODP (249)
- HSK A-ODP (FLEXFIT) (250)
- HSK E-ODP (FLEXFIT) (251)
- RE MB-ODP (246)
- S M (245)
- S M-C-H (245)
- S M-CF (246)
HTP-R-LN10
Shell Mill Plungers Carrying Tangentially Clamped Inserts with 4 Cutting Edges
3
D3 Da
L
ae D
| Designation | D | ae | Z L | D3 | Da | Arbor(1) | kg |
| HTP D040-4-16-R-LN10 | 40.00 | 8.0 | 4 40.00 | 38.00 | 16.00 | A | 0.203 |
| HTP D050-5-22-R-LN10 | 50.00 | 8.0 | 5 40.00 | 48.00 | 22.00 | A | 0.313 |
| HTP D052-5-22-R-LN10 | 52.00 | 8.0 | 5 40.00 | 48.00 | 22.00 | A | 0.338 |
- For user guide, see pages 272-276
(1) For adaptation see page 461 For inserts, see pages: HTP LN.. 1006 (457)
| Slot/Bore | Face Mil | ling | Shoulder | Spot Facing | |
| Spare Parts | |||||
| Designation | |||||
| HTP D040-4-16-R-LN | 10 | SR 34-550 | BLD T10/S7 | SW6-SD | SR M8X30DIN912 |
| HTP D050-5-22-R-LN | 10 | SR 34-550 | BLD T10/S7 | SW6-SD | SR M10X25C |
| HTP D052-5-22-R-LN | 10 | SR 34-550 | BLD T10/S7 | SW6-SD | SR M10X25C |
