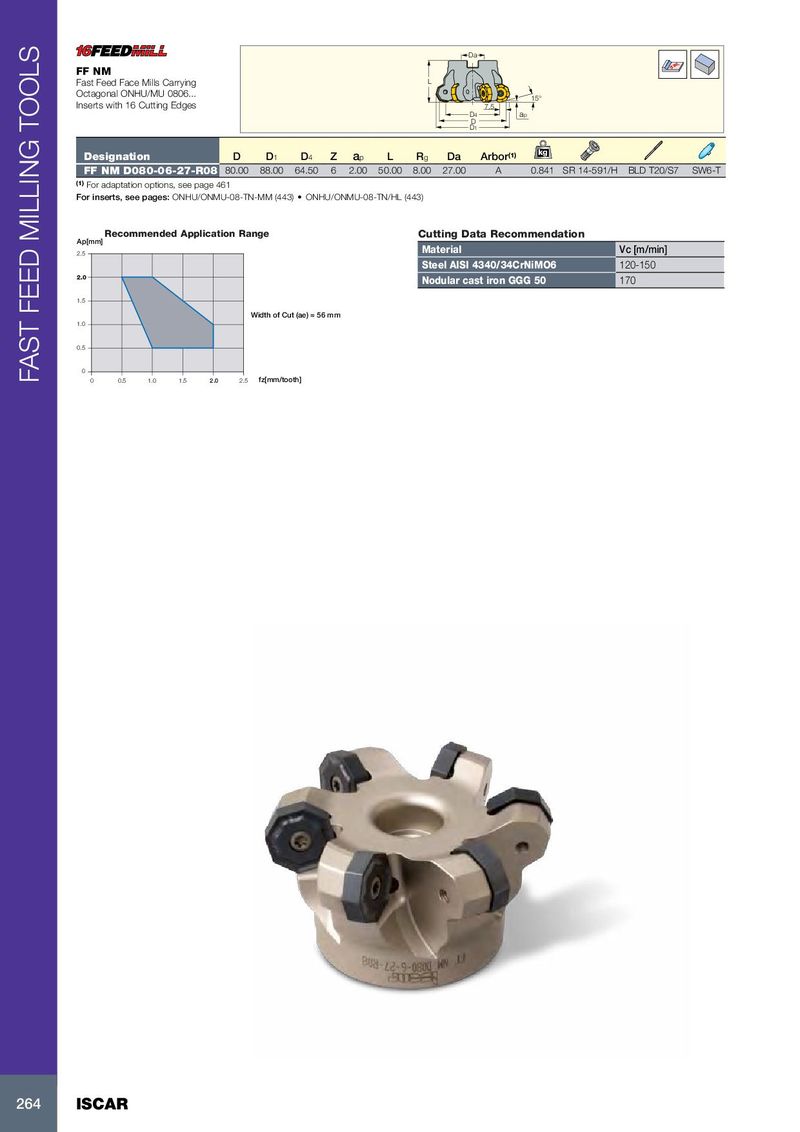

Da FF NM Fast Feed Face Mills Carrying L Octagonal ONHU/MU 0806... 15° Inserts with 16 Cutting Edges 7.5 D4 ap D D1 Designation D D 1 D 4 Z a p L R g Da Arbor (1) kg FF NM D080-06-27-R08 80.00 88.00 64.50 6 2.00 50.00 8.00 27.00 A 0.841 SR 14-591/H BLD T20/S7 SW6-T (1) For adaptation options, see page 461 For inserts, see pages: ONHU/ONMU-08-TN-MM (443) • ONHU/ONMU-08-TN/HL (443) Recommended Application Range Cutting Data Recommendation Ap[mm] 2.5 Material Vc [m/min] Steel AISI 4340/34CrNiMO6 120-150 2.0 Nodular cast iron GGG 50 170 1.5 Width of Cut (ae) = 56 mm 1.0 0.5 0 FAST FEED MILLING TOOLS 0 0.5 1.0 1.5 2.0 2.5 fz[mm/tooth] 264 ISCAR
