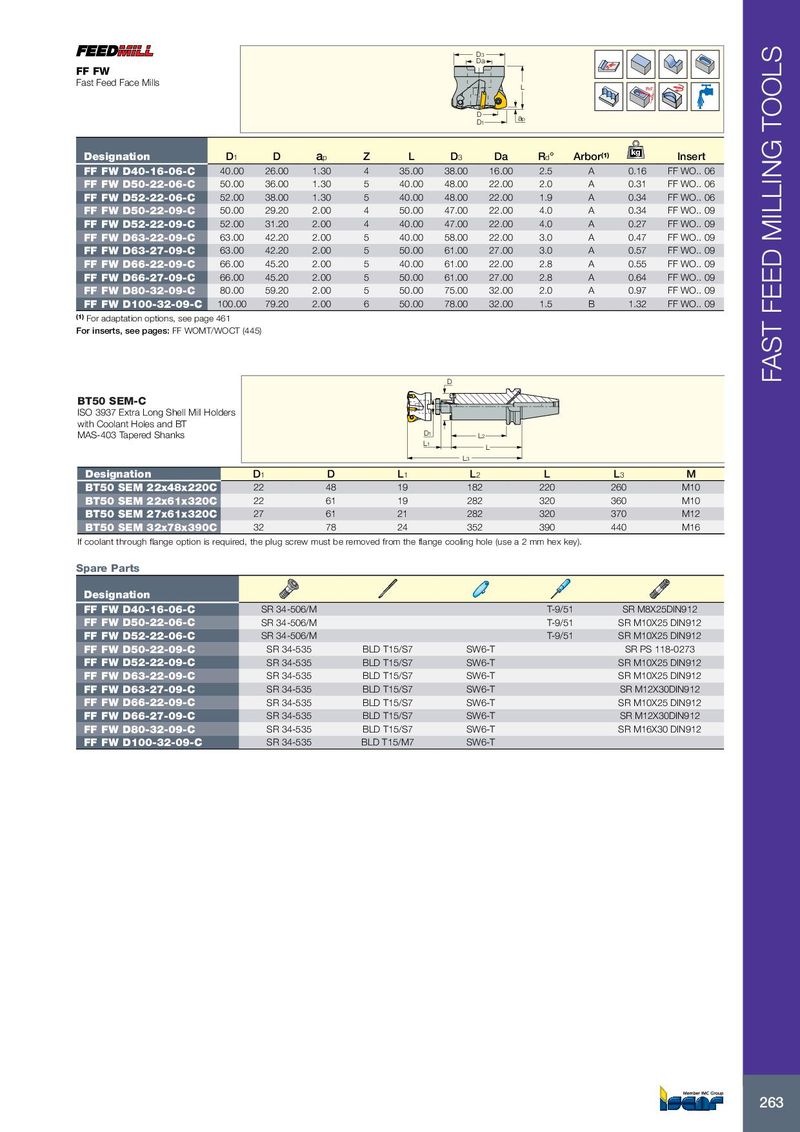

| FF FW | Da D3 | ||||||||||
| Fast Feed Face Mills | L | ||||||||||
| D1 D ap | Rd° | ||||||||||
| Designation | D1 | D | ap | Z | L | D3 | Da | Rd° | Arbor(1) | kg | Insert |
| FF FW D40-16-06-C | 40.00 | 26.00 | 1.30 | 4 | 35.00 | 38.00 | 16.00 | 2.5 | A | 0.16 | FF WO.. 06 |
| FF FW D50-22-06-C | 50.00 | 36.00 | 1.30 | 5 | 40.00 | 48.00 | 22.00 | 2.0 | A | 0.31 | FF WO.. 06 |
| FF FW D52-22-06-C | 52.00 | 38.00 | 1.30 | 5 | 40.00 | 48.00 | 22.00 | 1.9 | A | 0.34 | FF WO.. 06 |
| FF FW D50-22-09-C | 50.00 | 29.20 | 2.00 | 4 | 50.00 | 47.00 | 22.00 | 4.0 | A | 0.34 | FF WO.. 09 |
| FF FW D52-22-09-C | 52.00 | 31.20 | 2.00 | 4 | 40.00 | 47.00 | 22.00 | 4.0 | A | 0.27 | FF WO.. 09 |
| FF FW D63-22-09-C | 63.00 | 42.20 | 2.00 | 5 | 40.00 | 58.00 | 22.00 | 3.0 | A | 0.47 | FF WO.. 09 |
| FF FW D63-27-09-C | 63.00 | 42.20 | 2.00 | 5 | 50.00 | 61.00 | 27.00 | 3.0 | A | 0.57 | FF WO.. 09 |
| FF FW D66-22-09-C | 66.00 | 45.20 | 2.00 | 5 | 40.00 | 61.00 | 22.00 | 2.8 | A | 0.55 | FF WO.. 09 |
| FF FW D66-27-09-C | 66.00 | 45.20 | 2.00 | 5 | 50.00 | 61.00 | 27.00 | 2.8 | A | 0.64 | FF WO.. 09 |
| FF FW D80-32-09-C | 80.00 | 59.20 | 2.00 | 5 | 50.00 | 75.00 | 32.00 | 2.0 | A | 0.97 | FF WO.. 09 |
| FF FW D100-32-09-C | 100.00 | 79.20 | 2.00 | 6 | 50.00 | 78.00 | 32.00 | 1.5 | B | 1.32 | FF WO.. 09 |
(1) For adaptation options, see page 461 For inserts, see pages: FF WOMT/WOCT (445)
D
BT50 SEM-C
ISO 3937 Extra Long Shell Mill Holders with Coolant Holes and BT
| MAS-403 Tapered Shanks | D1 | L | |
| 2 | |||
| L 1 | L | ||
| L 3 |
| Designation | D1 | D | L1 | L2 | L | L3 | M |
| BT50 SEM 22x48x220C | 22 | 48 | 19 | 182 | 220 | 260 | M10 |
| BT50 SEM 22x61x320C | 22 | 61 | 19 | 282 | 320 | 360 | M10 |
| BT50 SEM 27x61x320C | 27 | 61 | 21 | 282 | 320 | 370 | M12 |
| BT50 SEM 32x78x390C | 32 | 78 | 24 | 352 | 390 | 440 | M16 |
If coolant through flange option is required, the plug screw must be removed from the flange cooling hole (use a 2 mm hex key).
| Spare Parts | |||||
| Designation | |||||
| FF FW D40-16-06-C | SR 34-506/M | T-9/51 | SR M8X25DIN912 | ||
| FF FW D50-22-06-C | SR 34-506/M | T-9/51 | SR M10X25 DIN912 | ||
| FF FW D52-22-06-C | SR 34-506/M | T-9/51 | SR M10X25 DIN912 | ||
| FF FW D50-22-09-C | SR 34-535 | BLD T15/S7 | SW6-T | SR PS 118-0273 | |
| FF FW D52-22-09-C | SR 34-535 | BLD T15/S7 | SW6-T | SR M10X25 DIN912 | |
| FF FW D63-22-09-C | SR 34-535 | BLD T15/S7 | SW6-T | SR M10X25 DIN912 | |
| FF FW D63-27-09-C | SR 34-535 | BLD T15/S7 | SW6-T | SR M12X30DIN912 | |
| FF FW D66-22-09-C | SR 34-535 | BLD T15/S7 | SW6-T | SR M10X25 DIN912 | |
| FF FW D66-27-09-C | SR 34-535 | BLD T15/S7 | SW6-T | SR M12X30DIN912 | |
| FF FW D80-32-09-C | SR 34-535 | BLD T15/S7 | SW6-T | SR M16X30 DIN912 | |
| FF FW D100-32-09-C | SR 34-535 | BLD T15/M7 | SW6-T |
