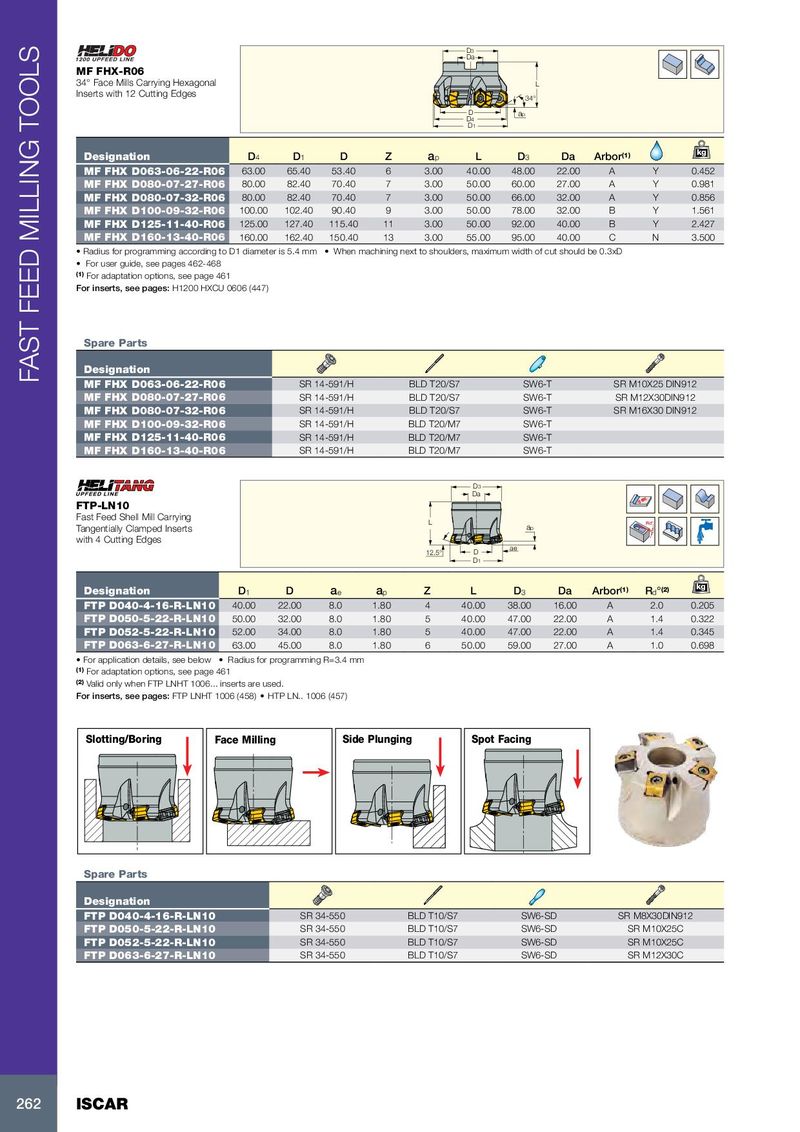

| MF FHX-R06 | D3 Da | ||||||||||
| 34° Face Mills Carrying Hexagonal Inserts with 12 Cutting Edges | D4 D1 D | L ap 34° | |||||||||
| Designation | D4 | D1 | D | Z | ap | L | D3 | Da | Arbor(1) | kg | |
| MF FHX D063-06-22-R06 | 63.00 | 65.40 | 53.40 | 6 | 3.00 | 40.00 | 48.00 | 22.00 | A | Y | 0.452 |
| MF FHX D080-07-27-R06 | 80.00 | 82.40 | 70.40 | 7 | 3.00 | 50.00 | 60.00 | 27.00 | A | Y | 0.981 |
| MF FHX D080-07-32-R06 | 80.00 | 82.40 | 70.40 | 7 | 3.00 | 50.00 | 66.00 | 32.00 | A | Y | 0.856 |
| MF FHX D100-09-32-R06 | 100.00 | 102.40 | 90.40 | 9 | 3.00 | 50.00 | 78.00 | 32.00 | B | Y | 1.561 |
| MF FHX D125-11-40-R06 | 125.00 | 127.40 | 115.40 | 11 | 3.00 | 50.00 | 92.00 | 40.00 | B | Y | 2.427 |
| MF FHX D160-13-40-R06 | 160.00 | 162.40 | 150.40 | 13 | 3.00 | 55.00 | 95.00 | 40.00 | C | N | 3.500 |
- Radius for programming according to D1 diameter is 5.4 mm
- When machining next to shoulders, maximum width of cut should be 0.3xD
- For user guide, see pages 462-468
(1) For adaptation options, see page 461 For inserts, see pages: H1200 HXCU 0606 (447)
| Spare Parts | |||||||||
| Designation | |||||||||
| MF FHX D063-06-22-R06 | SR 14-591/H | BLD T20/ | S7 | SW6-T | SR M10X2 | 5 DIN912 | |||
| MF FHX D080-07-27-R06 | SR 14-591/H | BLD T20/ | S7 | SW6-T | SR M12X3 | 0DIN912 | |||
| MF FHX D080-07-32-R06 | SR 14-591/H | BLD T20/ | S7 | SW6-T | SR M16X3 | 0 DIN912 | |||
| MF FHX D100-09-32-R06 | SR 14-591/H | BLD T20/ | M7 | SW6-T | |||||
| MF FHX D125-11-40-R06 | SR 14-591/H | BLD T20/ | M7 | SW6-T | |||||
| MF FHX D160-13-40-R06 | SR 14-591/H | BLD T20/ | M7 | SW6-T | |||||
| FTP-LN10 | Da D3 | ||||||||
| Fast Feed Shell Mill Carrying Tangentially Clamped Inserts with 4 Cutting Edges | L | ap | Rd° | ||||||
| 12.5° | D1 D | ae | |||||||
| Designation | D1 | D ae | ap | Z | L | D3 | Da | Arbor(1) Rd | °(2) kg |
| FTP D040-4-16-R-LN10 | 40.00 | 22.00 8.0 | 1.80 | 4 | 40.00 | 38.00 | 16.00 | A 2. | 0 0.205 |
| FTP D050-5-22-R-LN10 | 50.00 | 32.00 8.0 | 1.80 | 5 | 40.00 | 47.00 | 22.00 | A 1. | 4 0.322 |
| FTP D052-5-22-R-LN10 | 52.00 | 34.00 8.0 | 1.80 | 5 | 40.00 | 47.00 | 22.00 | A 1. | 4 0.345 |
| FTP D063-6-27-R-LN10 | 63.00 | 45.00 8.0 | 1.80 | 6 | 50.00 | 59.00 | 27.00 | A 1. | 0 0.698 |
- For application details, see below
- Radius for programming R=3.4 mm
(1) For adaptation options, see page 461 (2) Valid only when FTP LNHT 1006... inserts are used. For inserts, see pages: FTP LNHT 1006 (458) HTP LN.. 1006 (457)
Slotting/Boring Face Milling Side Plunging Spot Facing
Spare Parts
| Designation | ||||
| FTP D040-4-16-R-LN10 | SR 34-550 | BLD T10/S7 | SW6-SD | SR M8X30DIN912 |
| FTP D050-5-22-R-LN10 | SR 34-550 | BLD T10/S7 | SW6-SD | SR M10X25C |
| FTP D052-5-22-R-LN10 | SR 34-550 | BLD T10/S7 | SW6-SD | SR M10X25C |
| FTP D063-6-27-R-LN10 | SR 34-550 | BLD T10/S7 | SW6-SD | SR M12X30C |
