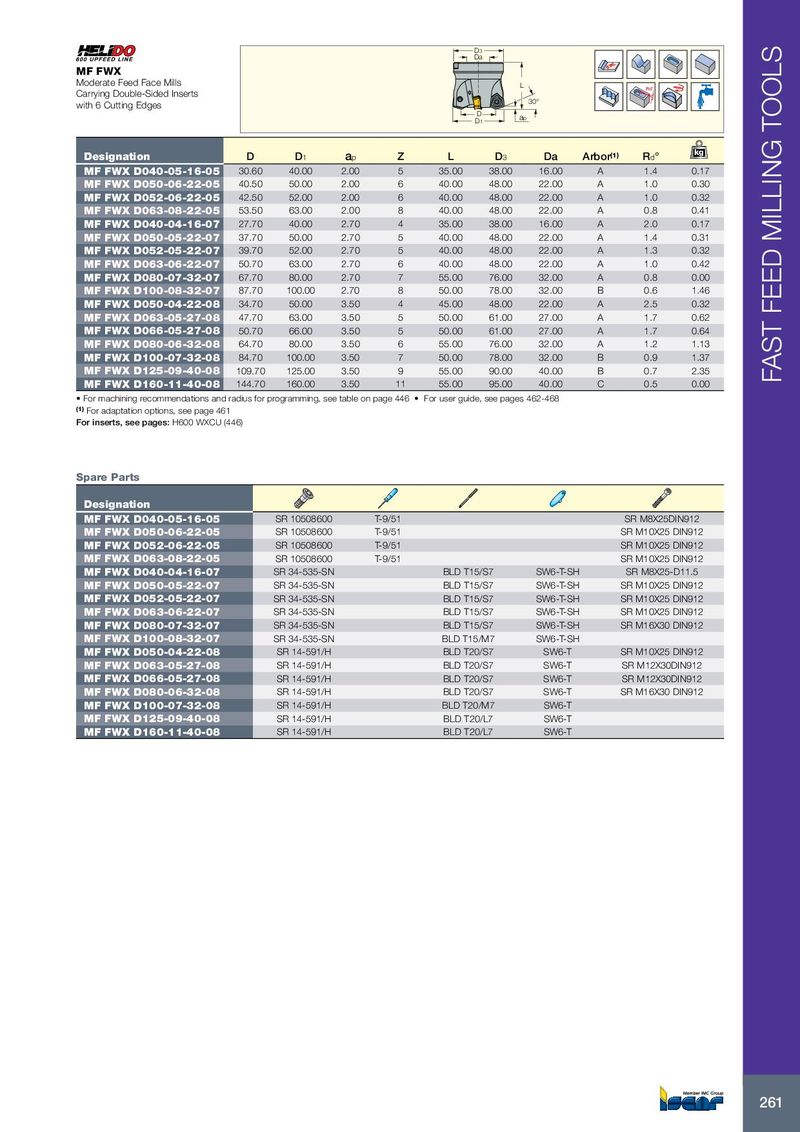

D3 Da MF FWX Moderate Feed Face Mills L Rd° Carrying Double-Sided Inserts 30° with 6 Cutting Edges D D1 ap kg Designation D D 1 a p Z L D 3 Da Arbor (1) R d ° MF FWX D040-05-16-05 30.60 40.00 2.00 5 35.00 38.00 16.00 A 1.4 0.17 MF FWX D050-06-22-05 40.50 50.00 2.00 6 40.00 48.00 22.00 A 1.0 0.30 MF FWX D052-06-22-05 42.50 52.00 2.00 6 40.00 48.00 22.00 A 1.0 0.32 MF FWX D063-08-22-05 53.50 63.00 2.00 8 40.00 48.00 22.00 A 0.8 0.41 MF FWX D040-04-16-07 27.70 40.00 2.70 4 35.00 38.00 16.00 A 2.0 0.17 MF FWX D050-05-22-07 37.70 50.00 2.70 5 40.00 48.00 22.00 A 1.4 0.31 MF FWX D052-05-22-07 39.70 52.00 2.70 5 40.00 48.00 22.00 A 1.3 0.32 MF FWX D063-06-22-07 50.70 63.00 2.70 6 40.00 48.00 22.00 A 1.0 0.42 MF FWX D080-07-32-07 67.70 80.00 2.70 7 55.00 76.00 32.00 A 0.8 0.00 MF FWX D100-08-32-07 87.70 100.00 2.70 8 50.00 78.00 32.00 B 0.6 1.46 MF FWX D050-04-22-08 34.70 50.00 3.50 4 45.00 48.00 22.00 A 2.5 0.32 MF FWX D063-05-27-08 47.70 63.00 3.50 5 50.00 61.00 27.00 A 1.7 0.62 MF FWX D066-05-27-08 50.70 66.00 3.50 5 50.00 61.00 27.00 A 1.7 0.64 MF FWX D080-06-32-08 64.70 80.00 3.50 6 55.00 76.00 32.00 A 1.2 1.13 MF FWX D100-07-32-08 84.70 100.00 3.50 7 50.00 78.00 32.00 B 0.9 1.37 MF FWX D125-09-40-08 109.70 125.00 3.50 9 55.00 90.00 40.00 B 0.7 2.35 FAST FEED MILLING TOOLS MF FWX D160-11-40-08 144.70 160.00 3.50 11 55.00 95.00 40.00 C 0.5 0.00 • For machining recommendations and radius for programming, see table on page 446 • For user guide, see pages 462-468 (1) For adaptation options, see page 461 For inserts, see pages: H600 WXCU (446) Spare Parts Designation MF FWX D040-05-16-05 SR 10508600 T-9/51 SR M8X25DIN912 MF FWX D050-06-22-05 SR 10508600 T-9/51 SR M10X25 DIN912 MF FWX D052-06-22-05 SR 10508600 T-9/51 SR M10X25 DIN912 MF FWX D063-08-22-05 SR 10508600 T-9/51 SR M10X25 DIN912 MF FWX D040-04-16-07 SR 34-535-SN BLD T15/S7 SW6-T-SH SR M8X25-D11.5 MF FWX D050-05-22-07 SR 34-535-SN BLD T15/S7 SW6-T-SH SR M10X25 DIN912 MF FWX D052-05-22-07 SR 34-535-SN BLD T15/S7 SW6-T-SH SR M10X25 DIN912 MF FWX D063-06-22-07 SR 34-535-SN BLD T15/S7 SW6-T-SH SR M10X25 DIN912 MF FWX D080-07-32-07 SR 34-535-SN BLD T15/S7 SW6-T-SH SR M16X30 DIN912 MF FWX D100-08-32-07 SR 34-535-SN BLD T15/M7 SW6-T-SH MF FWX D050-04-22-08 SR 14-591/H BLD T20/S7 SW6-T SR M10X25 DIN912 MF FWX D063-05-27-08 SR 14-591/H BLD T20/S7 SW6-T SR M12X30DIN912 MF FWX D066-05-27-08 SR 14-591/H BLD T20/S7 SW6-T SR M12X30DIN912 MF FWX D080-06-32-08 SR 14-591/H BLD T20/S7 SW6-T SR M16X30 DIN912 MF FWX D100-07-32-08 SR 14-591/H BLD T20/M7 SW6-T MF FWX D125-09-40-08 SR 14-591/H BLD T20/L7 SW6-T MF FWX D160-11-40-08 SR 14-591/H BLD T20/L7 SW6-T 261
