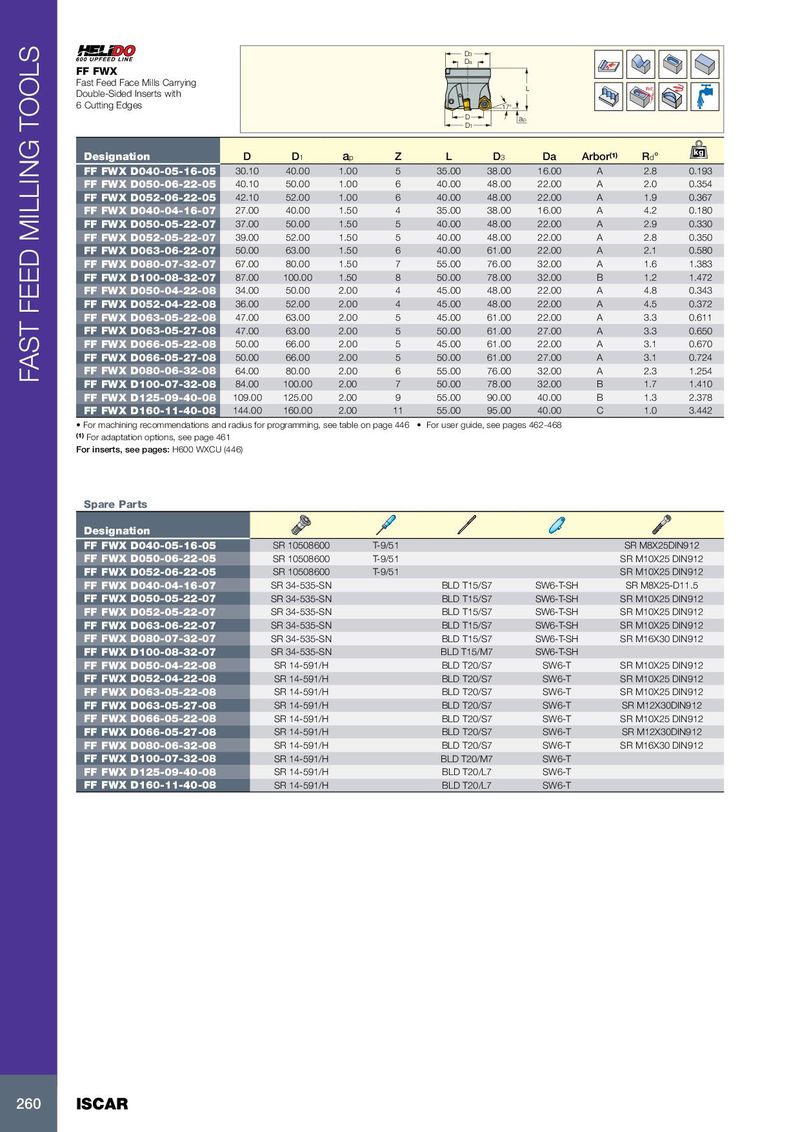

D3 Da FF FWX Fast Feed Face Mills Carrying L Rd° Double-Sided Inserts with 6 Cutting Edges 17° D ap D1 kg Designation D D 1 a p Z L D 3 Da Arbor (1) R d ° FF FWX D040-05-16-05 30.10 40.00 1.00 5 35.00 38.00 16.00 A 2.8 0.193 FF FWX D050-06-22-05 40.10 50.00 1.00 6 40.00 48.00 22.00 A 2.0 0.354 FF FWX D052-06-22-05 42.10 52.00 1.00 6 40.00 48.00 22.00 A 1.9 0.367 FF FWX D040-04-16-07 27.00 40.00 1.50 4 35.00 38.00 16.00 A 4.2 0.180 FF FWX D050-05-22-07 37.00 50.00 1.50 5 40.00 48.00 22.00 A 2.9 0.330 FF FWX D052-05-22-07 39.00 52.00 1.50 5 40.00 48.00 22.00 A 2.8 0.350 FF FWX D063-06-22-07 50.00 63.00 1.50 6 40.00 61.00 22.00 A 2.1 0.580 FF FWX D080-07-32-07 67.00 80.00 1.50 7 55.00 76.00 32.00 A 1.6 1.383 FF FWX D100-08-32-07 87.00 100.00 1.50 8 50.00 78.00 32.00 B 1.2 1.472 FF FWX D050-04-22-08 34.00 50.00 2.00 4 45.00 48.00 22.00 A 4.8 0.343 FF FWX D052-04-22-08 36.00 52.00 2.00 4 45.00 48.00 22.00 A 4.5 0.372 FF FWX D063-05-22-08 47.00 63.00 2.00 5 45.00 61.00 22.00 A 3.3 0.611 FF FWX D063-05-27-08 47.00 63.00 2.00 5 50.00 61.00 27.00 A 3.3 0.650 FF FWX D066-05-22-08 50.00 66.00 2.00 5 45.00 61.00 22.00 A 3.1 0.670 FF FWX D066-05-27-08 50.00 66.00 2.00 5 50.00 61.00 27.00 A 3.1 0.724 FF FWX D080-06-32-08 64.00 80.00 2.00 6 55.00 76.00 32.00 A 2.3 1.254 FAST FEED MILLING TOOLS FF FWX D100-07-32-08 84.00 100.00 2.00 7 50.00 78.00 32.00 B 1.7 1.410 FF FWX D125-09-40-08 109.00 125.00 2.00 9 55.00 90.00 40.00 B 1.3 2.378 FF FWX D160-11-40-08 144.00 160.00 2.00 11 55.00 95.00 40.00 C 1.0 3.442 • For machining recommendations and radius for programming, see table on page 446 • For user guide, see pages 462-468 (1) For adaptation options, see page 461 For inserts, see pages: H600 WXCU (446) Spare Parts Designation FF FWX D040-05-16-05 SR 10508600 T-9/51 SR M8X25DIN912 FF FWX D050-06-22-05 SR 10508600 T-9/51 SR M10X25 DIN912 FF FWX D052-06-22-05 SR 10508600 T-9/51 SR M10X25 DIN912 FF FWX D040-04-16-07 SR 34-535-SN BLD T15/S7 SW6-T-SH SR M8X25-D11.5 FF FWX D050-05-22-07 SR 34-535-SN BLD T15/S7 SW6-T-SH SR M10X25 DIN912 FF FWX D052-05-22-07 SR 34-535-SN BLD T15/S7 SW6-T-SH SR M10X25 DIN912 FF FWX D063-06-22-07 SR 34-535-SN BLD T15/S7 SW6-T-SH SR M10X25 DIN912 FF FWX D080-07-32-07 SR 34-535-SN BLD T15/S7 SW6-T-SH SR M16X30 DIN912 FF FWX D100-08-32-07 SR 34-535-SN BLD T15/M7 SW6-T-SH FF FWX D050-04-22-08 SR 14-591/H BLD T20/S7 SW6-T SR M10X25 DIN912 FF FWX D052-04-22-08 SR 14-591/H BLD T20/S7 SW6-T SR M10X25 DIN912 FF FWX D063-05-22-08 SR 14-591/H BLD T20/S7 SW6-T SR M10X25 DIN912 FF FWX D063-05-27-08 SR 14-591/H BLD T20/S7 SW6-T SR M12X30DIN912 FF FWX D066-05-22-08 SR 14-591/H BLD T20/S7 SW6-T SR M10X25 DIN912 FF FWX D066-05-27-08 SR 14-591/H BLD T20/S7 SW6-T SR M12X30DIN912 FF FWX D080-06-32-08 SR 14-591/H BLD T20/S7 SW6-T SR M16X30 DIN912 FF FWX D100-07-32-08 SR 14-591/H BLD T20/M7 SW6-T FF FWX D125-09-40-08 SR 14-591/H BLD T20/L7 SW6-T FF FWX D160-11-40-08 SR 14-591/H BLD T20/L7 SW6-T 260 ISCAR
