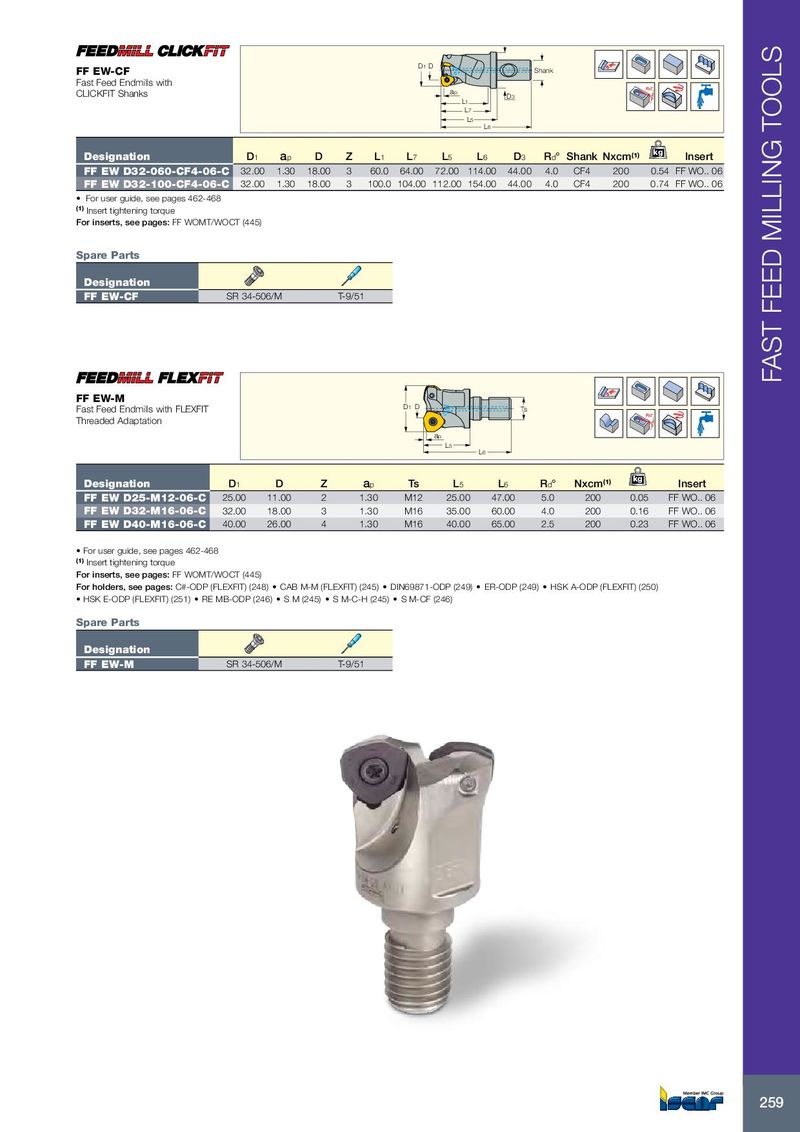

Каталог Iscar вращающийся инструмент 2017 - страница 263

D1 D FF EW-CF Shank Fast Feed Endmills with CLICKFIT Shanks ap Rd° D3 L1 L7 L5 L6 Designation D 1 a p D Z L 1 L 7 L 5 L 6 D 3 R d ° Shank Nxcm (1) kg Insert FF EW D32-060-CF4-06-C 32.00 1.30 18.00 3 60.0 64.00 72.00 114.00 44.00 4.0 CF4 200 0.54 FF WO.. 06 FF EW D32-100-CF4-06-C 32.00 1.30 18.00 3 100.0 104.00 112.00 154.00 44.00 4.0 CF4 200 0.74 FF WO.. 06 • For user guide, see pages 462-468 (1) Insert tightening torque For inserts, see pages: FF WOMT/WOCT (445) Spare Parts Designation FF EW-CF SR 34-506/M T-9/51 FAST FEED MILLING TOOLS FF EW-M Fast Feed Endmills with FLEXFIT D1 D Ts Rd° Threaded Adaptation ap L5 L6 Designation D 1 D Z a p Ts L 5 L 6 R d ° Nxcm (1) kg Insert FF EW D25-M12-06-C 25.00 11.00 2 1.30 M12 25.00 47.00 5.0 200 0.05 FF WO.. 06 FF EW D32-M16-06-C 32.00 18.00 3 1.30 M16 35.00 60.00 4.0 200 0.16 FF WO.. 06 FF EW D40-M16-06-C 40.00 26.00 4 1.30 M16 40.00 65.00 2.5 200 0.23 FF WO.. 06 • For user guide, see pages 462-468 (1) Insert tightening torque For inserts, see pages: FF WOMT/WOCT (445) For holders, see pages: C#-ODP (FLEXFIT) (248) • CAB M-M (FLEXFIT) (245) • DIN69871-ODP (249) • ER-ODP (249) • HSK A-ODP (FLEXFIT) (250) • HSK E-ODP (FLEXFIT) (251) • RE MB-ODP (246) • S M (245) • S M-C-H (245) • S M-CF (246) Spare Parts Designation FF EW-M SR 34-506/M T-9/51 259
