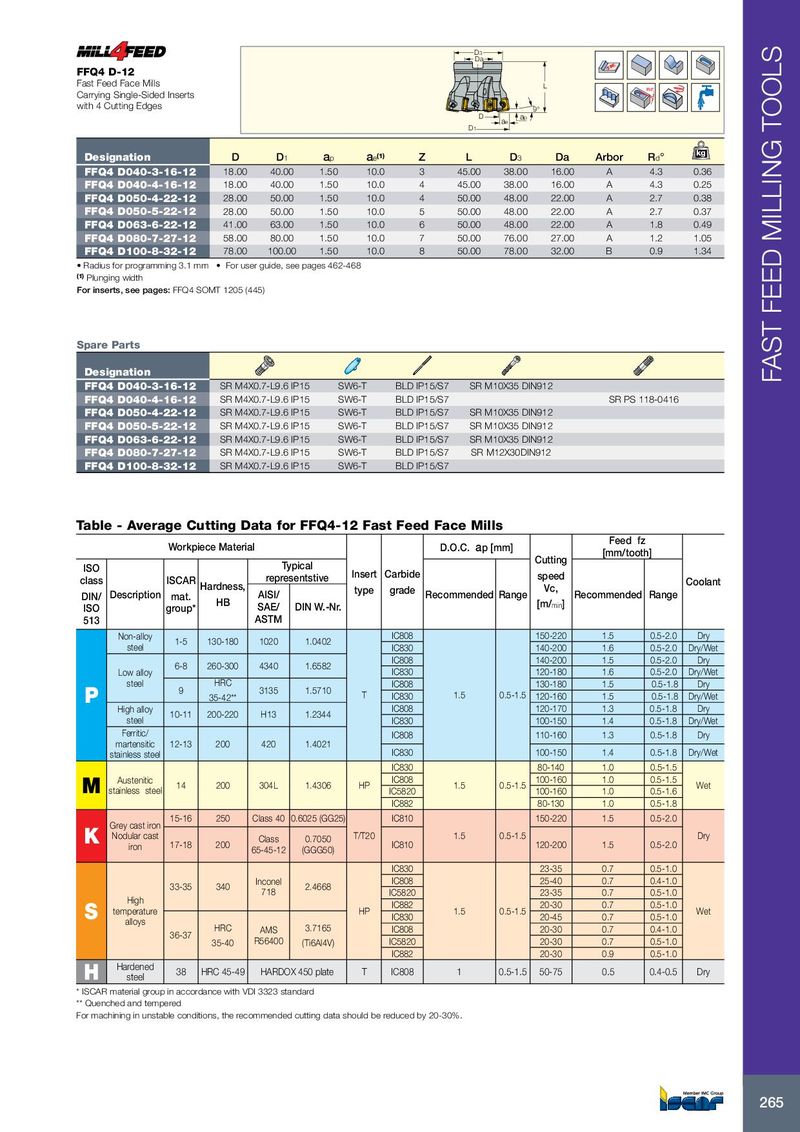

| FFQ4 D-12 | Da D3 | ||||||||||
| Fast Feed Face Mills Carrying Single-Sided Inserts with 4 Cutting Edges | D D1 | 9° ap ae | L | Rd° | |||||||
| Designation | D | D1 | ap | ae(1) | Z | L | D3 | Da | Arbor | Rd° | kg |
| FFQ4 D040-3-16-12 | 18.00 | 40.00 | 1.50 | 10.0 | 3 | 45.00 | 38.00 | 16.00 | A | 4.3 | 0.36 |
| FFQ4 D040-4-16-12 | 18.00 | 40.00 | 1.50 | 10.0 | 4 | 45.00 | 38.00 | 16.00 | A | 4.3 | 0.25 |
| FFQ4 D050-4-22-12 | 28.00 | 50.00 | 1.50 | 10.0 | 4 | 50.00 | 48.00 | 22.00 | A | 2.7 | 0.38 |
| FFQ4 D050-5-22-12 | 28.00 | 50.00 | 1.50 | 10.0 | 5 | 50.00 | 48.00 | 22.00 | A | 2.7 | 0.37 |
| FFQ4 D063-6-22-12 | 41.00 | 63.00 | 1.50 | 10.0 | 6 | 50.00 | 48.00 | 22.00 | A | 1.8 | 0.49 |
| FFQ4 D080-7-27-12 | 58.00 | 80.00 | 1.50 | 10.0 | 7 | 50.00 | 76.00 | 27.00 | A | 1.2 | 1.05 |
| FFQ4 D100-8-32-12 | 78.00 | 100.00 | 1.50 | 10.0 | 8 | 50.00 | 78.00 | 32.00 | B | 0.9 | 1.34 |
- Radius for programming 3.1 mm
- For user guide, see pages 462-468
(1) Plunging width For inserts, see pages: FFQ4 SOMT 1205 (445)
Spare Parts
| Designation | |||||
| FFQ4 D040-3-16-12 | SR M4X0.7-L9.6 IP15 | SW6-T | BLD IP15/S7 | SR M10X35 DIN912 | |
| FFQ4 D040-4-16-12 | SR M4X0.7-L9.6 IP15 | SW6-T | BLD IP15/S7 | SR PS 118-0416 | |
| FFQ4 D050-4-22-12 | SR M4X0.7-L9.6 IP15 | SW6-T | BLD IP15/S7 | SR M10X35 DIN912 | |
| FFQ4 D050-5-22-12 | SR M4X0.7-L9.6 IP15 | SW6-T | BLD IP15/S7 | SR M10X35 DIN912 | |
| FFQ4 D063-6-22-12 | SR M4X0.7-L9.6 IP15 | SW6-T | BLD IP15/S7 | SR M10X35 DIN912 | |
| FFQ4 D080-7-27-12 | SR M4X0.7-L9.6 IP15 | SW6-T | BLD IP15/S7 | SR M12X30DIN912 | |
| FFQ4 D100-8-32-12 | SR M4X0.7-L9.6 IP15 | SW6-T | BLD IP15/S7 |
Table - Average Cutting Data for FFQ4-12 Fast Feed Face Mills
| Workpi | ece Materi | al | D.O.C.a | p [mm] | Feed f [mm/toot | z h] | |||||||
| ISO class | ISCAR | Hardness, | Ty repre | pical sentstive | Insert t | Carbide d | Cutting speed Vc | Coolant | |||||
| DIN/ | Description | mat. | HB | AISI/ | ype | grae | Recommend | ed Range | , | Recommended | Range | ||
| ISO 513 | group | SAE/ ASTM | DIN W.-Nr. | [m/min] | |||||||||
| Non-alloy | IC808 | 150-220 | 1.5 | 0.5-2.0 | Dry | ||||||||
| steel | 1-5 | 130-180 | 1020 | 1.0402 | IC830 | 140-200 | 1.6 | 0.5-2.0 | Dry/Wet | ||||
| IC808 | 140-200 | 1.5 | 0.5-2.0 | Dry | |||||||||
| Low alloy | 6-8 | 260-300 | 4340 | 1.6582 | IC830 | 120-180 | 1.6 | 0.5-2.0 | Dry/Wet | ||||
| steel | HRC | IC808 | 130-180 | 1.5 | 0.5-1.8 | Dry | |||||||
| P | 9 | 35-42 | 3135 | 1.5710 | T | IC830 | 1.5 | 0.5-1.5 | 120-160 | 1.5 | 0.5-1.8 | Dry/Wet | |
| High alloy | 1011 | 200220 | H13 | 12344 | IC808 | 120-170 | 1.3 | 0.5-1.8 | Dry | ||||
| steel | - | - | . | IC830 | 100-150 | 1.4 | 0.5-1.8 | Dry/Wet | |||||
| Ferritic/ titi | 1213 | 200 | 420 | 14021 | IC808 | 110-160 | 1.3 | 0.5-1.8 | Dry | ||||
| marensc stainless steel | - | . | IC830 | 100-150 | 1.4 | 0.5-1.8 | Dry/Wet | ||||||
| IC830 | 80-140 | 1.0 | 0.5-1.5 | ||||||||||
| M | Austenitic stainless steel | 14 | 200 | 304L | 1.4306 | HP | IC808 IC5820 | 1.5 | 0.5-1.5 | 100-160 100-160 | 1.0 1.0 | 0.5-1.5 0.5-1.6 | Wet |
| IC882 | 80-130 | 1.0 | 0.5-1.8 | ||||||||||
| Grey cast iron | 15-16 | 250 | Class 40 | 0.6025 (GG25) | IC810 | 150-220 | 1.5 | 0.5-2.0 | |||||
| K | Nodular cast | Class | 07050 | T/T20 | 1.5 | 0.5-1.5 | Dry | ||||||
| iron | 17-18 | 200 | 65-45-12 | . (GGG50) | IC810 | 120-200 | 1.5 | 0.5-2.0 | |||||
| IC830 | 23-35 | 0.7 | 0.5-1.0 | ||||||||||
| Inconel | IC808 | 25-40 | 0.7 | 0.4-1.0 | |||||||||
| 33-35 | 340 | 718 | 2.4668 | IC5820 | 23-35 | 0.7 | 0.5-1.0 | ||||||
| High | IC882 | 20-30 | 0.7 | 0.5-1.0 | |||||||||
| S | temperature | HP | IC830 | 1.5 | 0.5-1.5 | 20-45 | 0.7 | 0.5-1.0 | Wet | ||||
| alloys | HRC | AMS | 3.7165 | IC808 | 20-30 | 0.7 | 0.4-1.0 | ||||||
| 36-37 | 35-40 | R56400 | (Ti6Al4V) | IC5820 | 20-30 | 0.7 | 0.5-1.0 | ||||||
| IC882 | 20-30 | 0.9 | 0.5-1.0 | ||||||||||
| H | Hardened steel | 38 | HRC 45-49 | HARDO | X 450 plate | T | IC808 | 1 | 0.5-1.5 | 50-75 | 0.5 | 0.4-0.5 | Dry |
* ISCAR material group in accordance with VDI 3323 standard ** Quenched and tempered For machining in unstable conditions, the recommended cutting data should be reduced by 20-30%.
