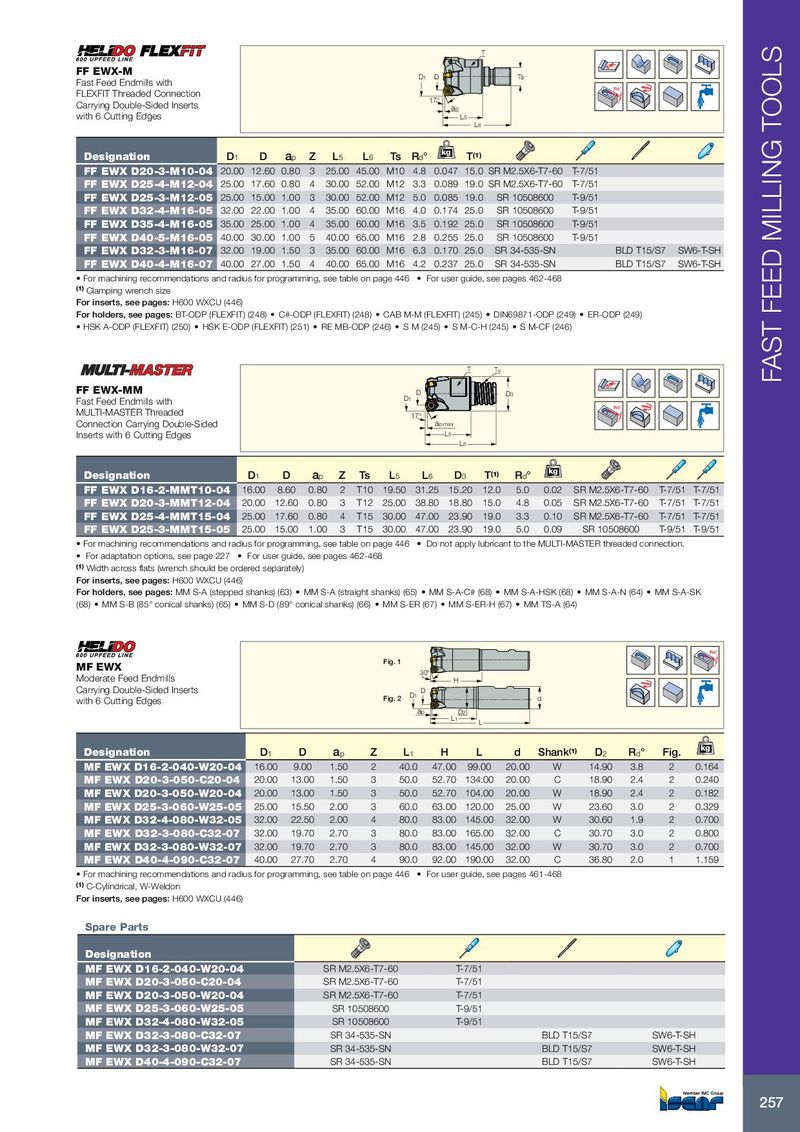

| FF EWX-M | D1 | D | T | Ts | |||||||||
| Fast Feed Endmills with FLEXFIT Threaded Connection Carrying Double-Sided Inserts with 6 Cutting Edges | 17° ap | L6 L5 | Rd° | ||||||||||
| Designation | D1 | D | ap | Z L5 | L6 | Ts | Rd° | kg | T(1) | ||||
| FF EWX D20-3-M10-04 | 20.00 | 12.60 | 0.80 | 3 25.00 | 45.00 | M10 | 4.8 | 0.047 | 15.0 | SR M2.5X6-T7-60 | T-7/51 | ||
| FF EWX D25-4-M12-04 | 25.00 | 17.60 | 0.80 | 4 30.00 | 52.00 | M12 | 3.3 | 0.089 | 19.0 | SR M2.5X6-T7-60 | T-7/51 | ||
| FF EWX D25-3-M12-05 | 25.00 | 15.00 | 1.00 | 3 30.00 | 52.00 | M12 | 5.0 | 0.085 | 19.0 | SR 10508600 | T-9/51 | ||
| FF EWX D32-4-M16-05 | 32.00 | 22.00 | 1.00 | 4 35.00 | 60.00 | M16 | 4.0 | 0.174 | 25.0 | SR 10508600 | T-9/51 | ||
| FF EWX D35-4-M16-05 | 35.00 | 25.00 | 1.00 | 4 35.00 | 60.00 | M16 | 3.5 | 0.192 | 25.0 | SR 10508600 | T-9/51 | ||
| FF EWX D40-5-M16-05 | 40.00 | 30.00 | 1.00 | 5 40.00 | 65.00 | M16 | 2.8 | 0.255 | 25.0 | SR 10508600 | T-9/51 | ||
| FF EWX D32-3-M16-07 | 32.00 | 19.00 | 1.50 | 3 35.00 | 60.00 | M16 | 6.3 | 0.170 | 25.0 | SR 34-535-SN | BL | D T15/S7 S | W6-T-SH |
| FF EWX D40-4-M16-07 | 40.00 | 27.00 | 1.50 | 4 40.00 | 65.00 | M16 | 4.2 | 0.237 | 25.0 | SR 34-535-SN | BL | D T15/S7 S | W6-T-SH |
- For machining recommendations and radius for programming, see table on page 446
- For user guide, see pages 462-468
(1) Clamping wrench size For inserts, see pages: H600 WXCU (446) For holders, see pages: BT-ODP (FLEXFIT) (248) C#-ODP (FLEXFIT) (248) CAB M-M (FLEXFIT) (245) DIN69871-ODP (249) ER-ODP (249)
- HSK A-ODP (FLEXFIT) (250)
- HSK E-ODP (FLEXFIT) (251)
- RE MB-ODP (246)
- S M (245)
- S M-C-H (245)
- S M-CF (246)
| FF EWX-MM | D1 | D | T | Ts | D3 | ||||||||
| Fast Feed Endmills with MULTI-MASTER Threaded Connection Carrying Double-Sided | 17° ap | max | Rd° | ||||||||||
| Inserts with 6 Cutting Edges | L6 L5 | ||||||||||||
| Designation | D1 | D | ap | Z Ts | L5 | L6 | D3 | T(1) | Rd° | kg | |||
| FF EWX D16-2-MMT10-04 | 16.00 | 8.60 | 0.80 | 2 T10 | 19.50 | 31.25 | 15.20 | 12.0 | 5.0 | 0.02 | SR M2.5X6-T7-60 | T-7/51 | T-7/51 |
| FF EWX D20-3-MMT12-04 | 20.00 | 12.60 | 0.80 | 3 T12 | 25.00 | 38.80 | 18.80 | 15.0 | 4.8 | 0.05 | SR M2.5X6-T7-60 | T-7/51 | T-7/51 |
| FF EWX D25-4-MMT15-04 | 25.00 | 17.60 | 0.80 | 4 T15 | 30.00 | 47.00 | 23.90 | 19.0 | 3.3 | 0.10 | SR M2.5X6-T7-60 | T-7/51 | T-7/51 |
| FF EWX D25-3-MMT15-05 | 25.00 | 15.00 | 1.00 | 3 T15 | 30.00 | 47.00 | 23.90 | 19.0 | 5.0 | 0.09 | SR 10508600 | T-9/51 | T-9/51 |
- For machining recommendations and radius for programming, see table on page 446
- Do not apply lubricant to the MULTI-MASTER threaded connection.
- For adaptation options, see page 227
- For user guide, see pages 462-468
(1) Width across flats (wrench should be ordered separately) For inserts, see pages: H600 WXCU (446) For holders, see pages: MM S-A (stepped shanks) (63) MM S-A (straight shanks) (65) MM S-A-C# (68) MM S-A-HSK (68) MM S-A-N (64) MM S-A-SK (68) MM S-B (85° conical shanks) (65) MM S-D (89° conical shanks) (66) MM S-ER (67) MM S-ER-H (67) MM TS-A (64)
| MF EWX | 30 Fig. 1 | ° | Rd° | |||||||||
| Moderate Feed Endmills | H | |||||||||||
| Carrying Double-Sided Inserts with 6 Cutting Edges | D D1 ap Fig. 2 | L1 | L D2 | d | ||||||||
| Designation | D1 | D | ap | Z L1 | H | L | d | Shank(1) | D2 | Rd° | Fig. | kg |
| MF EWX D16-2-040-W20-04 | 16.00 | 9.00 | 1.50 | 2 40.0 | 47.00 | 99.00 | 20.00 | W | 14.90 | 3.8 | 2 | 0.164 |
| MF EWX D20-3-050-C20-04 | 20.00 | 13.00 | 1.50 | 3 50.0 | 52.70 | 134.00 | 20.00 | C | 18.90 | 2.4 | 2 | 0.240 |
| MF EWX D20-3-050-W20-04 | 20.00 | 13.00 | 1.50 | 3 50.0 | 52.70 | 104.00 | 20.00 | W | 18.90 | 2.4 | 2 | 0.182 |
| MF EWX D25-3-060-W25-05 | 25.00 | 15.50 | 2.00 | 3 60.0 | 63.00 | 120.00 | 25.00 | W | 23.60 | 3.0 | 2 | 0.329 |
| MF EWX D32-4-080-W32-05 | 32.00 | 22.50 | 2.00 | 4 80.0 | 83.00 | 145.00 | 32.00 | W | 30.60 | 1.9 | 2 | 0.700 |
| MF EWX D32-3-080-C32-07 | 32.00 | 19.70 | 2.70 | 3 80.0 | 83.00 | 165.00 | 32.00 | C | 30.70 | 3.0 | 2 | 0.800 |
| MF EWX D32-3-080-W32-07 | 32.00 | 19.70 | 2.70 | 3 80.0 | 83.00 | 145.00 | 32.00 | W | 30.70 | 3.0 | 2 | 0.700 |
| MF EWX D40-4-090-C32-07 | 40.00 | 27.70 | 2.70 | 4 90.0 | 92.00 | 190.00 | 32.00 | C | 36.80 | 2.0 | 1 | 1.159 |
- For machining recommendations and radius for programming, see table on page 446
- For user guide, see pages 461-468
(1) C-Cylindrical, W-Weldon For inserts, see pages: H600 WXCU (446)
Spare Parts
| Designation | ||||
| MF EWX D16-2-040-W20-04 | SR M2.5X6-T7-60 | T-7/51 | ||
| MF EWX D20-3-050-C20-04 | SR M2.5X6-T7-60 | T-7/51 | ||
| MF EWX D20-3-050-W20-04 | SR M2.5X6-T7-60 | T-7/51 | ||
| MF EWX D25-3-060-W25-05 | SR 10508600 | T-9/51 | ||
| MF EWX D32-4-080-W32-05 | SR 10508600 | T-9/51 | ||
| MF EWX D32-3-080-C32-07 | SR 34-535-SN | BLD T15/S7 | SW6-T-SH | |
| MF EWX D32-3-080-W32-07 | SR 34-535-SN | BLD T15/S7 | SW6-T-SH | |
| MF EWX D40-4-090-C32-07 | SR 34-535-SN | BLD T15/S7 | SW6-T-SH |
