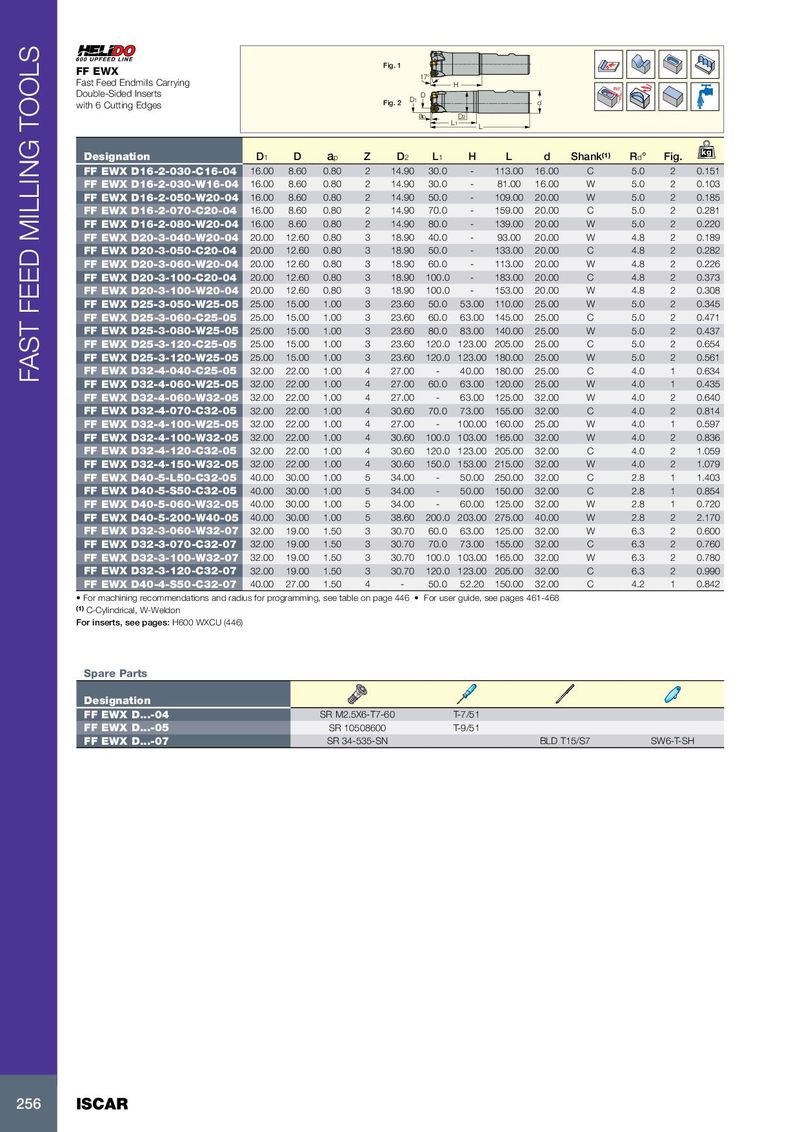

Каталог Iscar вращающийся инструмент 2017 - страница 260
Навигация
Каталог Iscar токарные пластины ISO 2022
Каталог Iscar инструмент для фрезерования
Каталог Iscar решения для глубокого сверления
Каталог Iscar полирующие фрезы
Новые режущие инструменты Iscar 2026
Каталог Iscar новые продукты 2018
| FF EWX | Fig. 1 | 17° | |||||||||||
| Fast Feed Endmills Carrying | H | Rd° | |||||||||||
| Double-Sided Inserts ith 6 Ctti Ed | D1 Fig. 2 | D | d | ||||||||||
| w ung ges | |||||||||||||
| a | p | L1 L D2 | |||||||||||
| Designation | D1 | D | ap | Z | D2 | L1 | H | L | d | Shank(1) | Rd° | Fig. | kg |
| FF EWX D16-2-030-C16-04 | 16.00 | 8.60 | 0.80 | 2 | 14.90 | 30.0 | - | 113.00 | 16.00 | C | 5.0 | 2 | 0.151 |
| FF EWX D16-2-030-W16-04 | 16.00 | 8.60 | 0.80 | 2 | 14.90 | 30.0 | - | 81.00 | 16.00 | W | 5.0 | 2 | 0.103 |
| FF EWX D16-2-050-W20-04 | 16.00 | 8.60 | 0.80 | 2 | 14.90 | 50.0 | - | 109.00 | 20.00 | W | 5.0 | 2 | 0.185 |
| FF EWX D16-2-070-C20-04 | 16.00 | 8.60 | 0.80 | 2 | 14.90 | 70.0 | - | 159.00 | 20.00 | C | 5.0 | 2 | 0.281 |
| FF EWX D16-2-080-W20-04 | 16.00 | 8.60 | 0.80 | 2 | 14.90 | 80.0 | - | 139.00 | 20.00 | W | 5.0 | 2 | 0.220 |
| FF EWX D20-3-040-W20-04 | 20.00 | 12.60 | 0.80 | 3 | 18.90 | 40.0 | - | 93.00 | 20.00 | W | 4.8 | 2 | 0.189 |
| FF EWX D20-3-050-C20-04 | 20.00 | 12.60 | 0.80 | 3 | 18.90 | 50.0 | - | 133.00 | 20.00 | C | 4.8 | 2 | 0.282 |
| FF EWX D20-3-060-W20-04 | 20.00 | 12.60 | 0.80 | 3 | 18.90 | 60.0 | - | 113.00 | 20.00 | W | 4.8 | 2 | 0.226 |
| FF EWX D20-3-100-C20-04 | 20.00 | 12.60 | 0.80 | 3 | 18.90 | 100.0 | - | 183.00 | 20.00 | C | 4.8 | 2 | 0.373 |
| FF EWX D20-3-100-W20-04 | 20.00 | 12.60 | 0.80 | 3 | 18.90 | 100.0 | - | 153.00 | 20.00 | W | 4.8 | 2 | 0.308 |
| FF EWX D25-3-050-W25-05 | 25.00 | 15.00 | 1.00 | 3 | 23.60 | 50.0 | 53.00 | 110.00 | 25.00 | W | 5.0 | 2 | 0.345 |
| FF EWX D25-3-060-C25-05 | 25.00 | 15.00 | 1.00 | 3 | 23.60 | 60.0 | 63.00 | 145.00 | 25.00 | C | 5.0 | 2 | 0.471 |
| FF EWX D25-3-080-W25-05 | 25.00 | 15.00 | 1.00 | 3 | 23.60 | 80.0 | 83.00 | 140.00 | 25.00 | W | 5.0 | 2 | 0.437 |
| FF EWX D25-3-120-C25-05 | 25.00 | 15.00 | 1.00 | 3 | 23.60 | 120.0 | 123.00 | 205.00 | 25.00 | C | 5.0 | 2 | 0.654 |
| FF EWX D25-3-120-W25-05 | 25.00 | 15.00 | 1.00 | 3 | 23.60 | 120.0 | 123.00 | 180.00 | 25.00 | W | 5.0 | 2 | 0.561 |
| FF EWX D32-4-040-C25-05 | 32.00 | 22.00 | 1.00 | 4 | 27.00 | - | 40.00 | 180.00 | 25.00 | C | 4.0 | 1 | 0.634 |
| FF EWX D32-4-060-W25-05 | 32.00 | 22.00 | 1.00 | 4 | 27.00 | 60.0 | 63.00 | 120.00 | 25.00 | W | 4.0 | 1 | 0.435 |
| FF EWX D32-4-060-W32-05 | 32.00 | 22.00 | 1.00 | 4 | 27.00 | - | 63.00 | 125.00 | 32.00 | W | 4.0 | 2 | 0.640 |
| FF EWX D32-4-070-C32-05 | 32.00 | 22.00 | 1.00 | 4 | 30.60 | 70.0 | 73.00 | 155.00 | 32.00 | C | 4.0 | 2 | 0.814 |
| FF EWX D32-4-100-W25-05 | 32.00 | 22.00 | 1.00 | 4 | 27.00 | - | 100.00 | 160.00 | 25.00 | W | 4.0 | 1 | 0.597 |
| FF EWX D32-4-100-W32-05 | 32.00 | 22.00 | 1.00 | 4 | 30.60 | 100.0 | 103.00 | 165.00 | 32.00 | W | 4.0 | 2 | 0.836 |
| FF EWX D32-4-120-C32-05 | 32.00 | 22.00 | 1.00 | 4 | 30.60 | 120.0 | 123.00 | 205.00 | 32.00 | C | 4.0 | 2 | 1.059 |
| FF EWX D32-4-150-W32-05 | 32.00 | 22.00 | 1.00 | 4 | 30.60 | 150.0 | 153.00 | 215.00 | 32.00 | W | 4.0 | 2 | 1.079 |
| FF EWX D40-5-L50-C32-05 | 40.00 | 30.00 | 1.00 | 5 | 34.00 | - | 50.00 | 250.00 | 32.00 | C | 2.8 | 1 | 1.403 |
| FF EWX D40-5-S50-C32-05 | 40.00 | 30.00 | 1.00 | 5 | 34.00 | - | 50.00 | 150.00 | 32.00 | C | 2.8 | 1 | 0.854 |
| FF EWX D40-5-060-W32-05 | 40.00 | 30.00 | 1.00 | 5 | 34.00 | - | 60.00 | 125.00 | 32.00 | W | 2.8 | 1 | 0.720 |
| FF EWX D40-5-200-W40-05 | 40.00 | 30.00 | 1.00 | 5 | 38.60 | 200.0 | 203.00 | 275.00 | 40.00 | W | 2.8 | 2 | 2.170 |
| FF EWX D32-3-060-W32-07 | 32.00 | 19.00 | 1.50 | 3 | 30.70 | 60.0 | 63.00 | 125.00 | 32.00 | W | 6.3 | 2 | 0.600 |
| FF EWX D32-3-070-C32-07 | 32.00 | 19.00 | 1.50 | 3 | 30.70 | 70.0 | 73.00 | 155.00 | 32.00 | C | 6.3 | 2 | 0.760 |
| FF EWX D32-3-100-W32-07 | 32.00 | 19.00 | 1.50 | 3 | 30.70 | 100.0 | 103.00 | 165.00 | 32.00 | W | 6.3 | 2 | 0.780 |
| FF EWX D32-3-120-C32-07 | 32.00 | 19.00 | 1.50 | 3 | 30.70 | 120.0 | 123.00 | 205.00 | 32.00 | C | 6.3 | 2 | 0.990 |
| FF EWX D40-4-S50-C32-07 | 40.00 | 27.00 | 1.50 | 4 | - | 50.0 | 52.20 | 150.00 | 32.00 | C | 4.2 | 1 | 0.842 |
- For machining recommendations and radius for programming, see table on page 446
- For user guide, see pages 461-468
(1) C-Cylindrical, W-Weldon For inserts, see pages: H600 WXCU (446)
Spare Parts
| Designation | ||||
| FF EWX D...-04 | SR M2.5X6-T7-60 | T-7/51 | ||
| FF EWX D...-05 | SR 10508600 | T-9/51 | ||
| FF EWX D...-07 | SR 34-535-SN | BLD T15/S7 | SW6-T-SH |
