Каталог Iscar вращающийся инструмент 2017 - страница 257

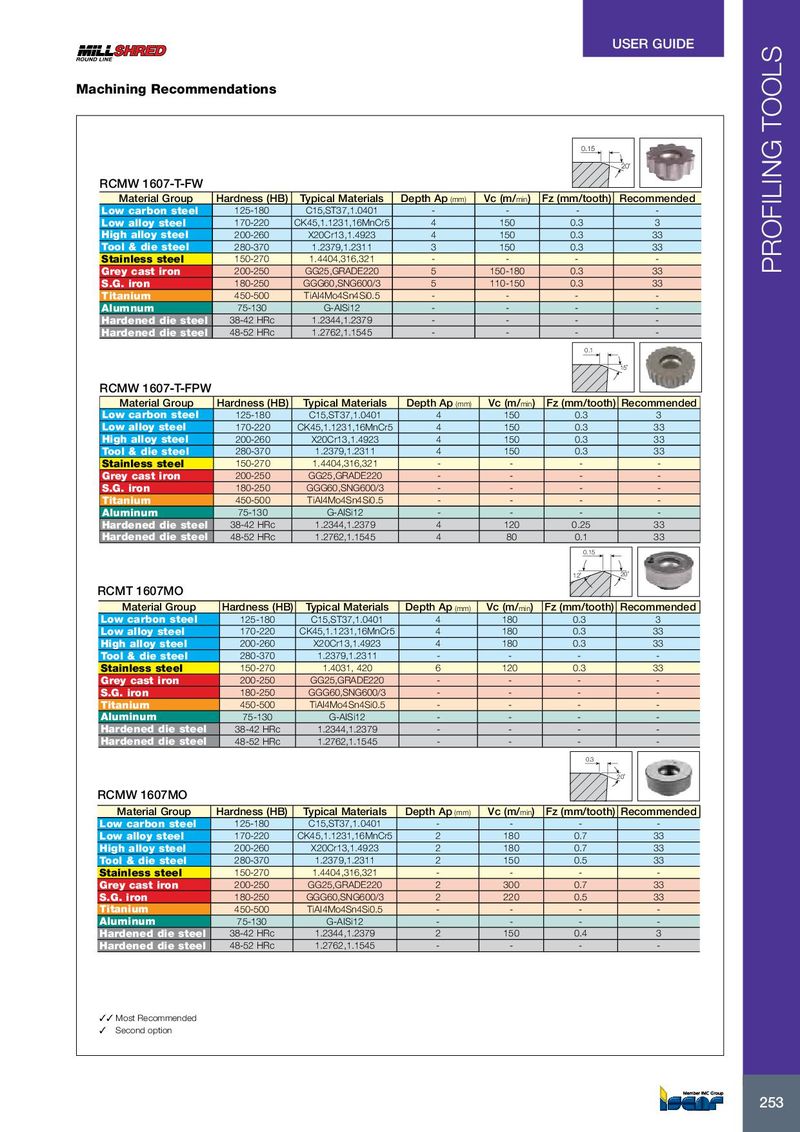

USER GUIDE Machining Recommendations 0.15 20˚ RCMW 1607-T-FW Material Group Hardness (HB) Typical Materials Depth Ap (mm) Vc (m/ min ) Fz (mm/tooth) Recommended Low carbon steel 125-180 C15,ST37,1.0401 - - - - Low alloy steel 170-220 CK45,1.1231,16MnCr5 4 150 0.3 3 High alloy steel 200-260 X20Cr13,1.4923 4 150 0.3 33 Tool & die steel 280-370 1.2379,1.2311 3 150 0.3 33 Stainless steel 150-270 1.4404,316,321 - - - - Grey cast iron 200-250 GG25,GRADE220 5 150-180 0.3 33 PROFILING TOOLS S.G. iron 180-250 GGG60,SNG600/3 5 110-150 0.3 33 Titanium 450-500 TiAI4Mo4Sn4Si0.5 - - - - Alumnum 75-130 G-AISi12 - - - - Hardened die steel 38-42 HRc 1.2344,1.2379 - - - - Hardened die steel 48-52 HRc 1.2762,1.1545 - - - - 0.1 15˚ RCMW 1607-T-FPW Material Group Hardness (HB) Typical Materials Depth Ap (mm) Vc (m/ min ) Fz (mm/tooth) Recommended Low carbon steel 125-180 C15,ST37,1.0401 4 150 0.3 3 Low alloy steel 170-220 CK45,1.1231,16MnCr5 4 150 0.3 33 High alloy steel 200-260 X20Cr13,1.4923 4 150 0.3 33 Tool & die steel 280-370 1.2379,1.2311 4 150 0.3 33 Stainless steel 150-270 1.4404,316,321 - - - - Grey cast iron 200-250 GG25,GRADE220 - - - - S.G. iron 180-250 GGG60,SNG600/3 - - - - Titanium 450-500 TiAI4Mo4Sn4Si0.5 - - - - Aluminum 75-130 G-AISi12 - - - - Hardened die steel 38-42 HRc 1.2344,1.2379 4 120 0.25 33 Hardened die steel 48-52 HRc 1.2762,1.1545 4 80 0.1 33 0.15 12˚ 20˚ RCMT 1607MO Material Group Hardness (HB) Typical Materials Depth Ap (mm) Vc (m/ min ) Fz (mm/tooth) Recommended Low carbon steel 125-180 C15,ST37,1.0401 4 180 0.3 3 Low alloy steel 170-220 CK45,1.1231,16MnCr5 4 180 0.3 33 High alloy steel 200-260 X20Cr13,1.4923 4 180 0.3 33 Tool & die steel 280-370 1.2379,1.2311 - - - - Stainless steel 150-270 1.4031, 420 6 120 0.3 33 Grey cast iron 200-250 GG25,GRADE220 - - - - S.G. iron 180-250 GGG60,SNG600/3 - - - - Titanium 450-500 TiAI4Mo4Sn4Si0.5 - - - - Aluminum 75-130 G-AISi12 - - - - Hardened die steel 38-42 HRc 1.2344,1.2379 - - - - Hardened die steel 48-52 HRc 1.2762,1.1545 - - - - 0.3 20˚ RCMW 1607MO Material Group Hardness (HB) Typical Materials Depth Ap (mm) Vc (m/ min ) Fz (mm/tooth) Recommended Low carbon steel 125-180 C15,ST37,1.0401 - - - - Low alloy steel 170-220 CK45,1.1231,16MnCr5 2 180 0.7 33 High alloy steel 200-260 X20Cr13,1.4923 2 180 0.7 33 Tool & die steel 280-370 1.2379,1.2311 2 150 0.5 33 Stainless steel 150-270 1.4404,316,321 - - - - Grey cast iron 200-250 GG25,GRADE220 2 300 0.7 33 S.G. iron 180-250 GGG60,SNG600/3 2 220 0.5 33 Titanium 450-500 TiAI4Mo4Sn4Si0.5 - - - - Aluminum 75-130 G-AISi12 - - - - Hardened die steel 38-42 HRc 1.2344,1.2379 2 150 0.4 3 Hardened die steel 48-52 HRc 1.2762,1.1545 - - - - ✓✓ Most Recommended ✓ Second option 253 253
