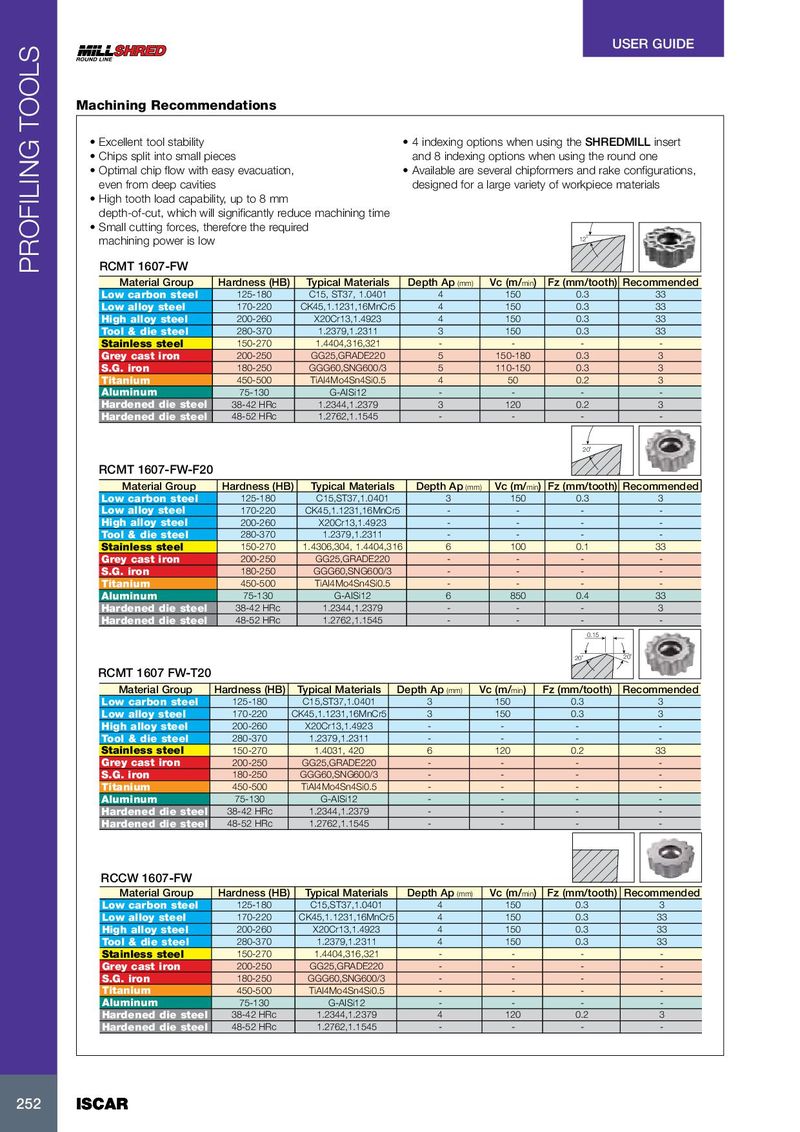

Machining Recommendations

  • Excellent tool stability
  • 4 indexing options when using the SHREDMILL insert
  • Chips split into small pieces and 8 indexing options when using the round one
  • Optimal chip flow with easy evacuation,
  • Available are several chipformers and rake configurations,

even from deep cavities designed for a large variety of workpiece materials

  • High tooth load capability, up to 8 mm depth-of-cut, which will significantly reduce machining time
  • Small cutting forces, therefore the required machining power is low 12˚ RCMT 1607-FW
Material GroupHardness (HB)Typical MaterialsDepth Ap(mm)Vc (m/min)Fz (mm/tooth)Recommended
Low carbon steel125-180C15, ST37, 1.040141500.333
Low alloy steel170-220CK45,1.1231,16MnCr541500.333
High alloy steel200-260X20Cr13,1.492341500.333
Tool & die steel280-3701.2379,1.231131500.333
Stainless steel150-2701.4404,316,321----
Grey cast iron200-250GG25,GRADE2205150-1800.33
S.G. iron180-250GGG60,SNG600/35110-1500.33
Titanium450-500TiAI4Mo4Sn4Si0.54500.23
Aluminum75-130G-AISi12----
Hardened die steel38-42 HRc1.2344,1.237931200.23
Hardened die steel48-52 HRc1.2762,1.1545----

20˚

RCMT 1607-FW-F20

Material GroupHardness (HB)Typical MaterialsDepth Ap(mm)Vc (m/min)Fz (mm/tooth)Recommended
Low carbon steel125-180C15,ST37,1.040131500.33
Low alloy steel170-220CK45,1.1231,16MnCr5----
High alloy steel200-260X20Cr13,1.4923----
Tool & die steel280-3701.2379,1.2311----
Stainless steel150-2701.4306,304, 1.4404,31661000.133
Grey cast iron200-250GG25,GRADE220----
S.G. iron180-250GGG60,SNG600/3----
Titanium450-500TiAI4Mo4Sn4Si0.5----
Aluminum75-130G-AISi1268500.433
Hardened die steel38-42 HRc1.2344,1.2379---3
Hardened die steel48-52 HRc1.2762,1.1545----
RCMT 1607 FW-T200.15 20˚20˚
Material GroupHardness (HB)Typical MaterialsDepth Ap(mm)Vc (m/min)Fz (mm/tooth)Recommended
Low carbon steel125-180C15,ST37,1.040131500.33
Low alloy steel170-220CK45,1.1231,16MnCr531500.33
High alloy steel200-260X20Cr13,1.4923----
Tool & die steel280-3701.2379,1.2311----
Stainless steel150-2701.4031, 42061200.233
Grey cast iron200-250GG25,GRADE220----
S.G. iron180-250GGG60,SNG600/3----
Titanium450-500TiAI4Mo4Sn4Si0.5----
Aluminum75-130G-AISi12----
Hardened die steel38-42 HRc1.2344,1.2379----
Hardened die steel48-52 HRc1.2762,1.1545----

RCCW 1607-FW

Material GroupHardness (HB)Typical MaterialsDepth Ap(mm)Vc (m/min)Fz (mm/tooth)Recommended
Low carbon steel125-180C15,ST37,1.040141500.33
Low alloy steel170-220CK45,1.1231,16MnCr541500.333
High alloy steel200-260X20Cr13,1.492341500.333
Tool & die steel280-3701.2379,1.231141500.333
Stainless steel150-2701.4404,316,321----
Grey cast iron200-250GG25,GRADE220----
S.G. iron180-250GGG60,SNG600/3----
Titanium450-500TiAI4Mo4Sn4Si0.5----
Aluminum75-130G-AISi12----
Hardened die steel38-42 HRc1.2344,1.237941200.23
Hardened die steel48-52 HRc1.2762,1.1545----
