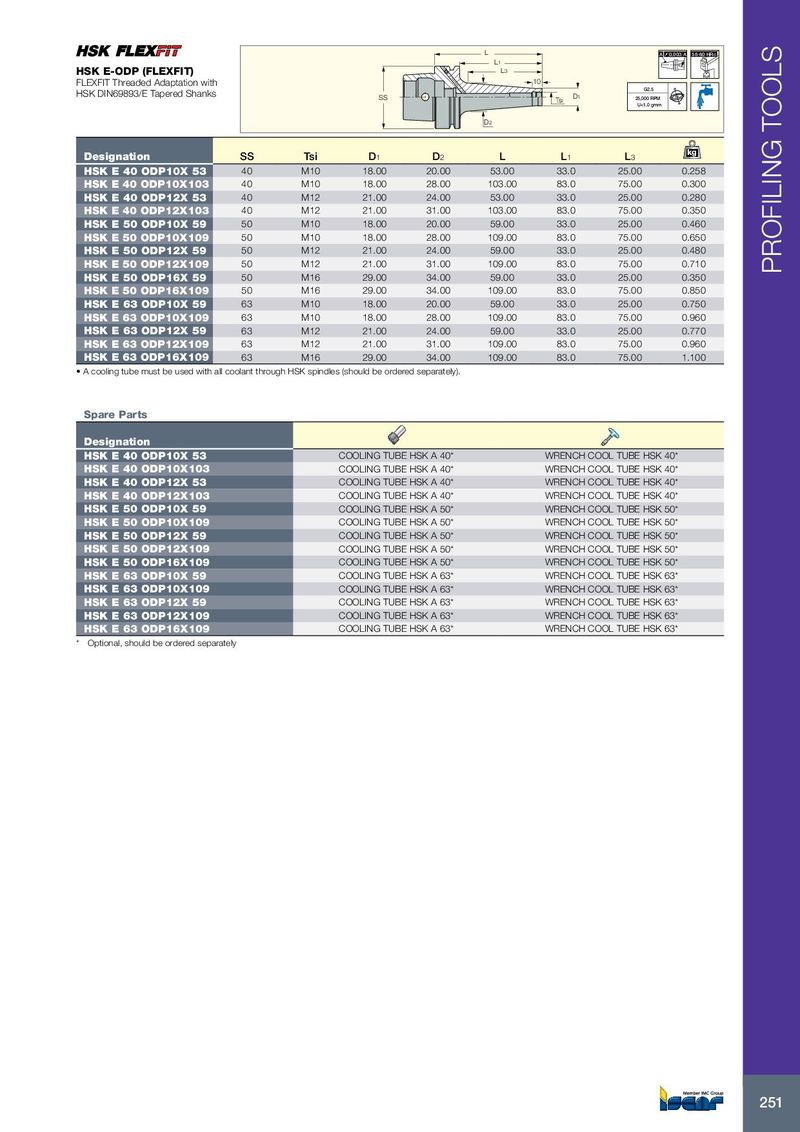

| L | A 0.003 A 58-60 HRc | |||||||
| HSK E-ODP (FLEXFIT) | L1 L3 | |||||||
| FLEXFIT Threaded Adaptation with | 10 | |||||||
| HSK DIN69893/E Tapered Shanks | SS | Tsi D1 | G2.5 25,000 RP U | M m | ||||
| D2 | ||||||||
| Designation | SS | Tsi | D1 | D2 | L | L1 | L3 | kg |
| HSK E 40 ODP10X 53 | 40 | M10 | 18.00 | 20.00 | 53.00 | 33.0 | 25.00 | 0.258 |
| HSK E 40 ODP10X103 | 40 | M10 | 18.00 | 28.00 | 103.00 | 83.0 | 75.00 | 0.300 |
| HSK E 40 ODP12X 53 | 40 | M12 | 21.00 | 24.00 | 53.00 | 33.0 | 25.00 | 0.280 |
| HSK E 40 ODP12X103 | 40 | M12 | 21.00 | 31.00 | 103.00 | 83.0 | 75.00 | 0.350 |
| HSK E 50 ODP10X 59 | 50 | M10 | 18.00 | 20.00 | 59.00 | 33.0 | 25.00 | 0.460 |
| HSK E 50 ODP10X109 | 50 | M10 | 18.00 | 28.00 | 109.00 | 83.0 | 75.00 | 0.650 |
| HSK E 50 ODP12X 59 | 50 | M12 | 21.00 | 24.00 | 59.00 | 33.0 | 25.00 | 0.480 |
| HSK E 50 ODP12X109 | 50 | M12 | 21.00 | 31.00 | 109.00 | 83.0 | 75.00 | 0.710 |
| HSK E 50 ODP16X 59 | 50 | M16 | 29.00 | 34.00 | 59.00 | 33.0 | 25.00 | 0.350 |
| HSK E 50 ODP16X109 | 50 | M16 | 29.00 | 34.00 | 109.00 | 83.0 | 75.00 | 0.850 |
| HSK E 63 ODP10X 59 | 63 | M10 | 18.00 | 20.00 | 59.00 | 33.0 | 25.00 | 0.750 |
| HSK E 63 ODP10X109 | 63 | M10 | 18.00 | 28.00 | 109.00 | 83.0 | 75.00 | 0.960 |
| HSK E 63 ODP12X 59 | 63 | M12 | 21.00 | 24.00 | 59.00 | 33.0 | 25.00 | 0.770 |
| HSK E 63 ODP12X109 | 63 | M12 | 21.00 | 31.00 | 109.00 | 83.0 | 75.00 | 0.960 |
| HSK E 63 ODP16X109 | 63 | M16 | 29.00 | 34.00 | 109.00 | 83.0 | 75.00 | 1.100 |
- A cooling tube must be used with all coolant through HSK spindles (should be ordered separately).
Spare Parts
| Designation | ||
| HSK E 40 ODP10X 53 | COOLING TUBE HSK A 40 | WRENCH COOL TUBE HSK 40 |
| HSK E 40 ODP10X103 | COOLING TUBE HSK A 40 | WRENCH COOL TUBE HSK 40 |
| HSK E 40 ODP12X 53 | COOLING TUBE HSK A 40 | WRENCH COOL TUBE HSK 40 |
| HSK E 40 ODP12X103 | COOLING TUBE HSK A 40 | WRENCH COOL TUBE HSK 40 |
| HSK E 50 ODP10X 59 | COOLING TUBE HSK A 50 | WRENCH COOL TUBE HSK 50 |
| HSK E 50 ODP10X109 | COOLING TUBE HSK A 50 | WRENCH COOL TUBE HSK 50 |
| HSK E 50 ODP12X 59 | COOLING TUBE HSK A 50 | WRENCH COOL TUBE HSK 50 |
| HSK E 50 ODP12X109 | COOLING TUBE HSK A 50 | WRENCH COOL TUBE HSK 50 |
| HSK E 50 ODP16X109 | COOLING TUBE HSK A 50 | WRENCH COOL TUBE HSK 50 |
| HSK E 63 ODP10X 59 | COOLING TUBE HSK A 63 | WRENCH COOL TUBE HSK 63 |
| HSK E 63 ODP10X109 | COOLING TUBE HSK A 63 | WRENCH COOL TUBE HSK 63 |
| HSK E 63 ODP12X 59 | COOLING TUBE HSK A 63 | WRENCH COOL TUBE HSK 63 |
| HSK E 63 ODP12X109 | COOLING TUBE HSK A 63 | WRENCH COOL TUBE HSK 63 |
| HSK E 63 ODP16X109 | COOLING TUBE HSK A 63 | WRENCH COOL TUBE HSK 63 |
* Optional, should be ordered separately
