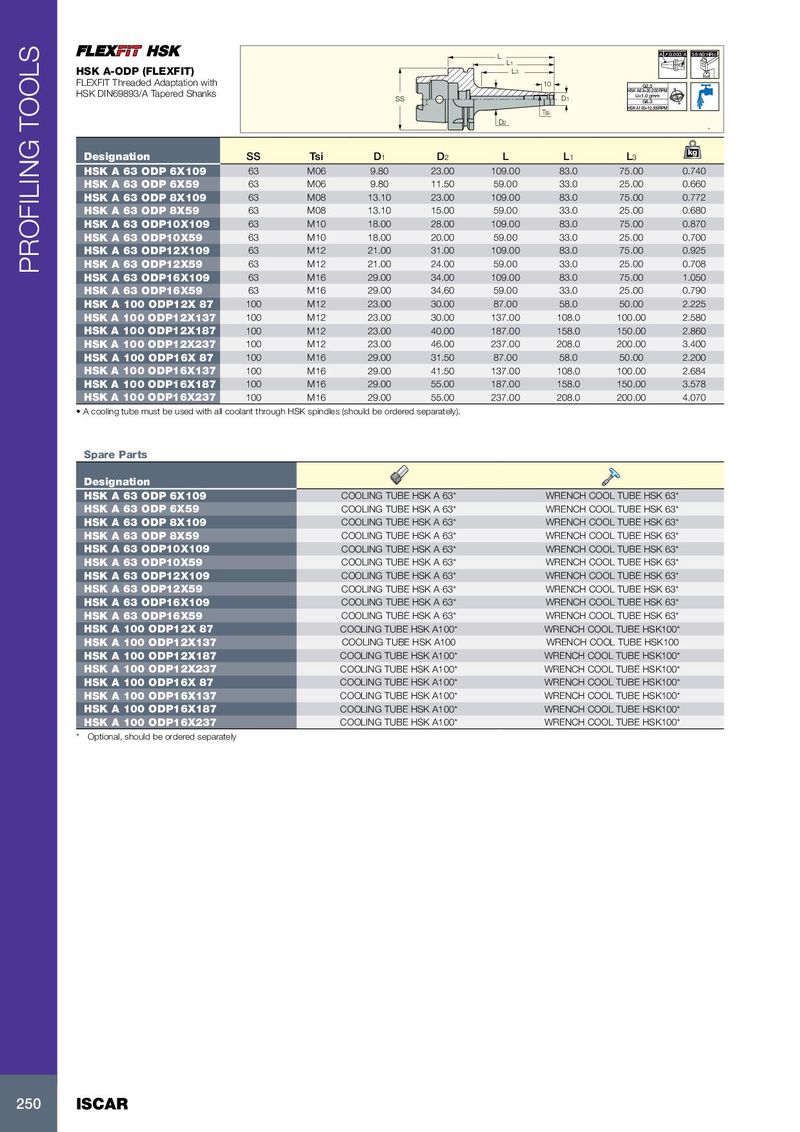

| HSK A-ODP (FLEXFIT) | L L1 L3 | A 0.003 A 58-60 HRc | ||||||
| FLEXFIT Threaded Adaptation with HSK DIN69893/A Tapered Shanks | SS | D2 | 10 D1 Tsi | G2.5 G6.3 HSK A63=20 HSK A100=12 U | . ,000RPM ,000RPM mm | |||
| Designation | SS | Tsi | D1 | D2 | L | L1 | L3 | kg |
| HSK A 63 ODP 6X109 | 63 | M06 | 9.80 | 23.00 | 109.00 | 83.0 | 75.00 | 0.740 |
| HSK A 63 ODP 6X59 | 63 | M06 | 9.80 | 11.50 | 59.00 | 33.0 | 25.00 | 0.660 |
| HSK A 63 ODP 8X109 | 63 | M08 | 13.10 | 23.00 | 109.00 | 83.0 | 75.00 | 0.772 |
| HSK A 63 ODP 8X59 | 63 | M08 | 13.10 | 15.00 | 59.00 | 33.0 | 25.00 | 0.680 |
| HSK A 63 ODP10X109 | 63 | M10 | 18.00 | 28.00 | 109.00 | 83.0 | 75.00 | 0.870 |
| HSK A 63 ODP10X59 | 63 | M10 | 18.00 | 20.00 | 59.00 | 33.0 | 25.00 | 0.700 |
| HSK A 63 ODP12X109 | 63 | M12 | 21.00 | 31.00 | 109.00 | 83.0 | 75.00 | 0.925 |
| HSK A 63 ODP12X59 | 63 | M12 | 21.00 | 24.00 | 59.00 | 33.0 | 25.00 | 0.708 |
| HSK A 63 ODP16X109 | 63 | M16 | 29.00 | 34.00 | 109.00 | 83.0 | 75.00 | 1.050 |
| HSK A 63 ODP16X59 | 63 | M16 | 29.00 | 34.60 | 59.00 | 33.0 | 25.00 | 0.790 |
| HSK A 100 ODP12X 87 | 100 | M12 | 23.00 | 30.00 | 87.00 | 58.0 | 50.00 | 2.225 |
| HSK A 100 ODP12X137 | 100 | M12 | 23.00 | 30.00 | 137.00 | 108.0 | 100.00 | 2.580 |
| HSK A 100 ODP12X187 | 100 | M12 | 23.00 | 40.00 | 187.00 | 158.0 | 150.00 | 2.860 |
| HSK A 100 ODP12X237 | 100 | M12 | 23.00 | 46.00 | 237.00 | 208.0 | 200.00 | 3.400 |
| HSK A 100 ODP16X 87 | 100 | M16 | 29.00 | 31.50 | 87.00 | 58.0 | 50.00 | 2.200 |
| HSK A 100 ODP16X137 | 100 | M16 | 29.00 | 41.50 | 137.00 | 108.0 | 100.00 | 2.684 |
| HSK A 100 ODP16X187 | 100 | M16 | 29.00 | 55.00 | 187.00 | 158.0 | 150.00 | 3.578 |
| HSK A 100 ODP16X237 | 100 | M16 | 29.00 | 55.00 | 237.00 | 208.0 | 200.00 | 4.070 |
- A cooling tube must be used with all coolant through HSK spindles (should be ordered separately).
Spare Parts
| Designation | ||
| HSK A 63 ODP 6X109 | COOLING TUBE HSK A 63 | WRENCH COOL TUBE HSK 63 |
| HSK A 63 ODP 6X59 | COOLING TUBE HSK A 63 | WRENCH COOL TUBE HSK 63 |
| HSK A 63 ODP 8X109 | COOLING TUBE HSK A 63 | WRENCH COOL TUBE HSK 63 |
| HSK A 63 ODP 8X59 | COOLING TUBE HSK A 63 | WRENCH COOL TUBE HSK 63 |
| HSK A 63 ODP10X109 | COOLING TUBE HSK A 63 | WRENCH COOL TUBE HSK 63 |
| HSK A 63 ODP10X59 | COOLING TUBE HSK A 63 | WRENCH COOL TUBE HSK 63 |
| HSK A 63 ODP12X109 | COOLING TUBE HSK A 63 | WRENCH COOL TUBE HSK 63 |
| HSK A 63 ODP12X59 | COOLING TUBE HSK A 63 | WRENCH COOL TUBE HSK 63 |
| HSK A 63 ODP16X109 | COOLING TUBE HSK A 63 | WRENCH COOL TUBE HSK 63 |
| HSK A 63 ODP16X59 | COOLING TUBE HSK A 63 | WRENCH COOL TUBE HSK 63 |
| HSK A 100 ODP12X 87 | COOLING TUBE HSK A100 | WRENCH COOL TUBE HSK100 |
| HSK A 100 ODP12X137 | COOLING TUBE HSK A100 | WRENCH COOL TUBE HSK100 |
| HSK A 100 ODP12X187 | COOLING TUBE HSK A100 | WRENCH COOL TUBE HSK100 |
| HSK A 100 ODP12X237 | COOLING TUBE HSK A100 | WRENCH COOL TUBE HSK100 |
| HSK A 100 ODP16X 87 | COOLING TUBE HSK A100 | WRENCH COOL TUBE HSK100 |
| HSK A 100 ODP16X137 | COOLING TUBE HSK A100 | WRENCH COOL TUBE HSK100 |
| HSK A 100 ODP16X187 | COOLING TUBE HSK A100 | WRENCH COOL TUBE HSK100 |
| HSK A 100 ODP16X237 | COOLING TUBE HSK A100 | WRENCH COOL TUBE HSK100 |
* Optional, should be ordered separately
