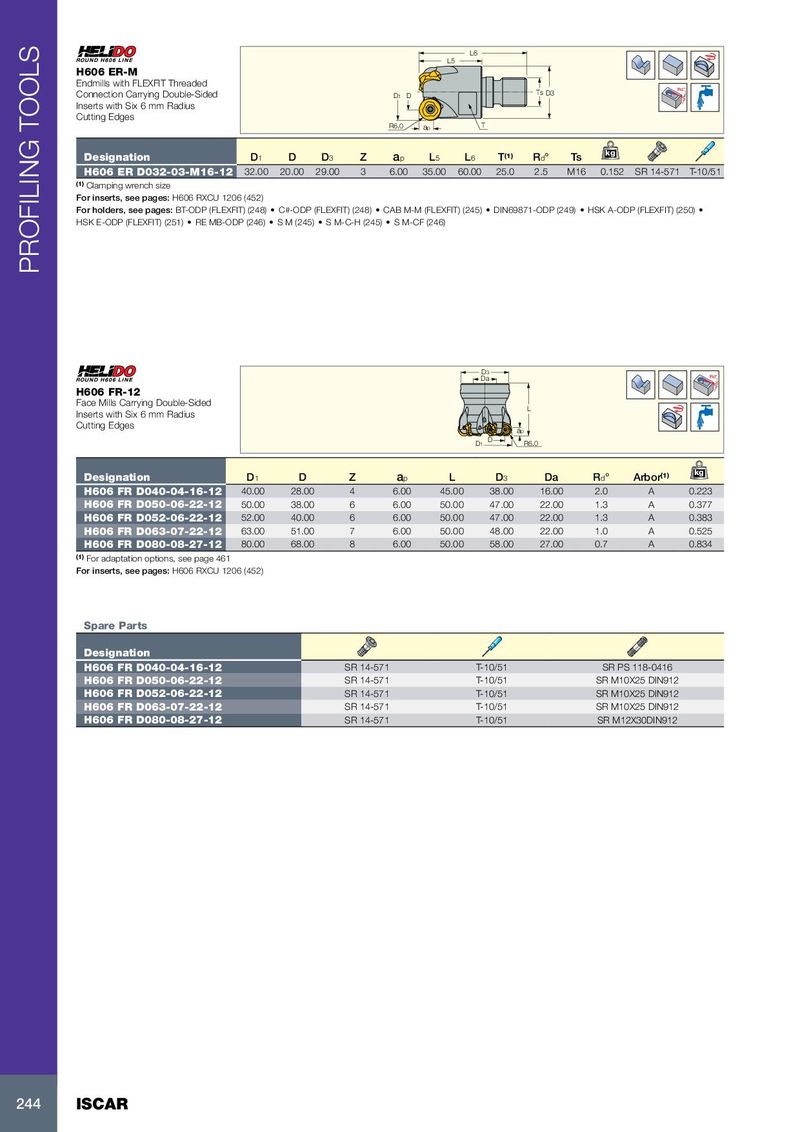

| H606 ER-M | L6 L5 | ||||||||||
| Endmills with FLEXFIT Threaded Connection Carrying Double-Sided Inserts with Six 6 mm Radius Cutting Edges | D1 D R6.0 | T ap | D3 Ts | Rd° | |||||||
| Designation | D1 | D | D3 | Z ap | L5 L6 | T(1) | Rd° | Ts | kg | ||
| H606 ER D032-03-M16-12 | 32.00 | 20.00 | 29.00 | 3 6.00 | 35.00 60.00 | 25.0 | 2.5 | M16 | 0.152 | SR 14-571 | T-10/51 |
(1) Clamping wrench size For inserts, see pages: H606 RXCU 1206 (452) For holders, see pages: BT-ODP (FLEXFIT) (248) • C#-ODP (FLEXFIT) (248) • CAB M-M (FLEXFIT) (245) • DIN69871-ODP (249) • HSK A-ODP (FLEXFIT) (250) • HSK E-ODP (FLEXFIT) (251) • RE MB-ODP (246) • S M (245) • S M-C-H (245) • S M-CF (246)
| H606 FR-12 | Da D3 | Rd° | |||||||||
| Face Mills Carrying Double-Sided Inserts with Six 6 mm Radius Cutting Edges | D1 D R ap | L 6. | 0 | ||||||||
| Designation | D1 | D | Z | ap | L | D3 | Da | Rd° | Arbor(1) | kg | |
| H606 FR D040-04-16-12 | 40.00 | 28.00 | 4 | 6.00 | 45.00 | 38.00 | 16.00 | 2.0 | A | 0.223 | |
| H606 FR D050-06-22-12 | 50.00 | 38.00 | 6 | 6.00 | 50.00 | 47.00 | 22.00 | 1.3 | A | 0.377 | |
| H606 FR D052-06-22-12 | 52.00 | 40.00 | 6 | 6.00 | 50.00 | 47.00 | 22.00 | 1.3 | A | 0.383 | |
| H606 FR D063-07-22-12 | 63.00 | 51.00 | 7 | 6.00 | 50.00 | 48.00 | 22.00 | 1.0 | A | 0.525 | |
| H606 FR D080-08-27-12 | 80.00 | 68.00 | 8 | 6.00 | 50.00 | 58.00 | 27.00 | 0.7 | A | 0.834 |
(1) For adaptation options, see page 461 For inserts, see pages: H606 RXCU 1206 (452)
| Spare Parts | |||
| Designation | |||
| H606 FR D040-04-16-12 | SR 14-571 | T-10/51 | SR PS 118-0416 |
| H606 FR D050-06-22-12 | SR 14-571 | T-10/51 | SR M10X25 DIN912 |
| H606 FR D052-06-22-12 | SR 14-571 | T-10/51 | SR M10X25 DIN912 |
| H606 FR D063-07-22-12 | SR 14-571 | T-10/51 | SR M10X25 DIN912 |
| H606 FR D080-08-27-12 | SR 14-571 | T-10/51 | SR M12X30DIN912 |
