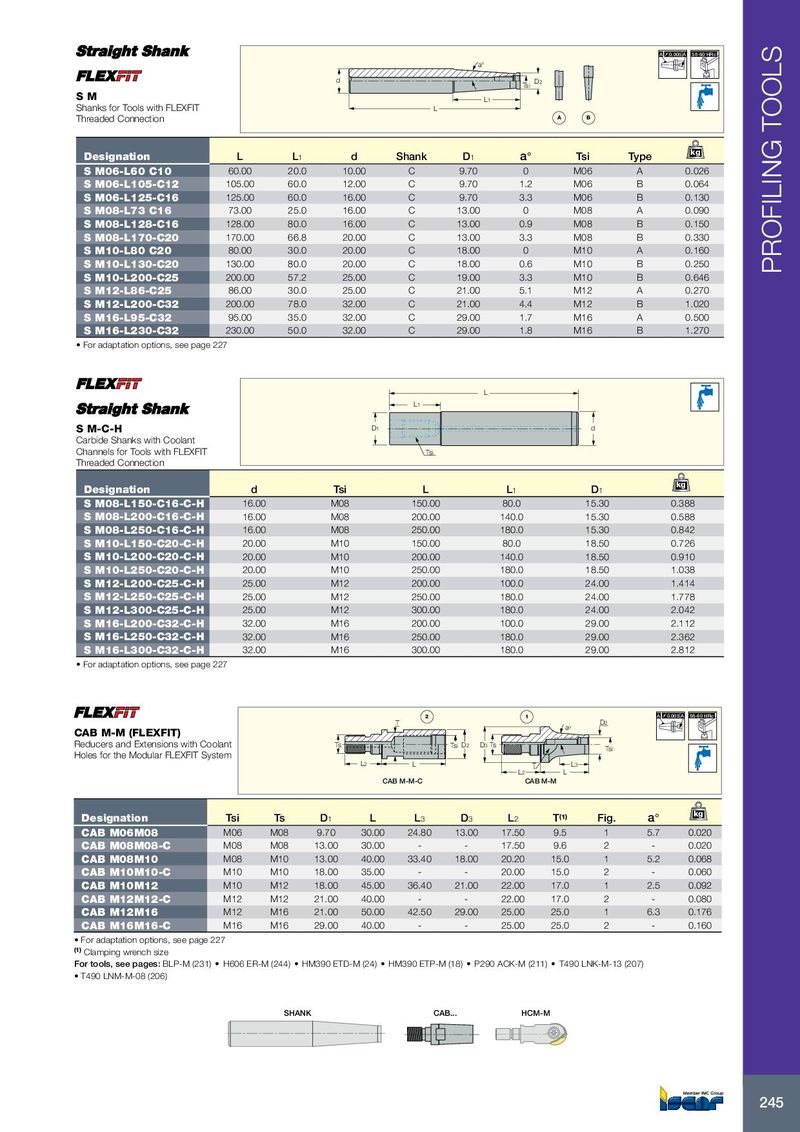

Каталог Iscar вращающийся инструмент 2017 - страница 249
Навигация
Каталог Iscar токарные пластины ISO 2022
Каталог Iscar инструмент для фрезерования
Каталог Iscar решения для глубокого сверления
Каталог Iscar полирующие фрезы
Новые режущие инструменты Iscar 2026
Каталог Iscar новые продукты 2018
| d | a° | D2 | A 0.005 A 58-60 HRc | ||||||
| S M | L1 | Tsi | |||||||
| Shanks for Tools with FLEXFIT | L | ||||||||
| Threaded Connection | A B | ||||||||
| Designation | L | L1 | d | Shank | D1 | a° | Tsi | Type | kg |
| S M06-L60 C10 | 60.00 | 20.0 | 10.00 | C | 9.70 | 0 | M06 | A | 0.026 |
| S M06-L105-C12 | 105.00 | 60.0 | 12.00 | C | 9.70 | 1.2 | M06 | B | 0.064 |
| S M06-L125-C16 | 125.00 | 60.0 | 16.00 | C | 9.70 | 3.3 | M06 | B | 0.130 |
| S M08-L73 C16 | 73.00 | 25.0 | 16.00 | C | 13.00 | 0 | M08 | A | 0.090 |
| S M08-L128-C16 | 128.00 | 80.0 | 16.00 | C | 13.00 | 0.9 | M08 | B | 0.150 |
| S M08-L170-C20 | 170.00 | 66.8 | 20.00 | C | 13.00 | 3.3 | M08 | B | 0.330 |
| S M10-L80 C20 | 80.00 | 30.0 | 20.00 | C | 18.00 | 0 | M10 | A | 0.160 |
| S M10-L130-C20 | 130.00 | 80.0 | 20.00 | C | 18.00 | 0.6 | M10 | B | 0.250 |
| S M10-L200-C25 | 200.00 | 57.2 | 25.00 | C | 19.00 | 3.3 | M10 | B | 0.646 |
| S M12-L86-C25 | 86.00 | 30.0 | 25.00 | C | 21.00 | 5.1 | M12 | A | 0.270 |
| S M12-L200-C32 | 200.00 | 78.0 | 32.00 | C | 21.00 | 4.4 | M12 | B | 1.020 |
| S M16-L95-C32 | 95.00 | 35.0 | 32.00 | C | 29.00 | 1.7 | M16 | A | 0.500 |
| S M16-L230-C32 | 230.00 | 50.0 | 32.00 | C | 29.00 | 1.8 | M16 | B | 1.270 |
- For adaptation options, see page 227
| L1 | L | ||||||
| S M-C-H | D1 | d | |||||
| Carbide Shanks with Coolant | |||||||
| Channels for Tools with FLEXFIT Threaded Connection | Tsi | ||||||
| Designation | d | Tsi | L | L1 | D1 | kg | |
| S M08-L150-C16-C-H | 16.00 | M08 | 150.00 | 80.0 | 15.30 | 0.388 | |
| S M08-L200-C16-C-H | 16.00 | M08 | 200.00 | 140.0 | 15.30 | 0.588 | |
| S M08-L250-C16-C-H | 16.00 | M08 | 250.00 | 180.0 | 15.30 | 0.842 | |
| S M10-L150-C20-C-H | 20.00 | M10 | 150.00 | 80.0 | 18.50 | 0.726 | |
| S M10-L200-C20-C-H | 20.00 | M10 | 200.00 | 140.0 | 18.50 | 0.910 | |
| S M10-L250-C20-C-H | 20.00 | M10 | 250.00 | 180.0 | 18.50 | 1.038 | |
| S M12-L200-C25-C-H | 25.00 | M12 | 200.00 | 100.0 | 24.00 | 1.414 | |
| S M12-L250-C25-C-H | 25.00 | M12 | 250.00 | 180.0 | 24.00 | 1.778 | |
| S M12-L300-C25-C-H | 25.00 | M12 | 300.00 | 180.0 | 24.00 | 2.042 | |
| S M16-L200-C32-C-H | 32.00 | M16 | 200.00 | 100.0 | 29.00 | 2.112 | |
| S M16-L250-C32-C-H | 32.00 | M16 | 250.00 | 180.0 | 29.00 | 2.362 | |
| S M16-L300-C32-C-H | 32.00 | M16 | 300.00 | 180.0 | 29.00 | 2.812 |
- For adaptation options, see page 227
| CAB M-M (FLEXFIT) RddEtiithC | lt | T 2 | 1 | a° | D2 | A | A 0.005 58-60 HRc | ||||
| eucers an xensons w Holes for the Modular FLEXFIT S | oan ystem | Ts | L2 CAB | L M-M-C | Tsi D2 | L2 T CAB 3 Ts | L L3 M-M | Tsi | |||
| Designation | Tsi | Ts | D1 | L | L3 | D3 | L2 | T(1) | Fig. | a° | kg |
| CAB M06M08 | M06 | M08 | 9.70 | 30.00 | 24.80 | 13.00 | 17.50 | 9.5 | 1 | 5.7 | 0.020 |
| CAB M08M08-C | M08 | M08 | 13.00 | 30.00 | - | - | 17.50 | 9.6 | 2 | - | 0.020 |
| CAB M08M10 | M08 | M10 | 13.00 | 40.00 | 33.40 | 18.00 | 20.20 | 15.0 | 1 | 5.2 | 0.068 |
| CAB M10M10-C | M10 | M10 | 18.00 | 35.00 | - | - | 20.00 | 15.0 | 2 | - | 0.060 |
| CAB M10M12 | M10 | M12 | 18.00 | 45.00 | 36.40 | 21.00 | 22.00 | 17.0 | 1 | 2.5 | 0.092 |
| CAB M12M12-C | M12 | M12 | 21.00 | 40.00 | - | - | 22.00 | 17.0 | 2 | - | 0.080 |
| CAB M12M16 | M12 | M16 | 21.00 | 50.00 | 42.50 | 29.00 | 25.00 | 25.0 | 1 | 6.3 | 0.176 |
| CAB M16M16-C | M16 | M16 | 29.00 | 40.00 | - | - | 25.00 | 25.0 | 2 | - | 0.160 |
- For adaptation options, see page 227
(1) Clamping wrench size For tools, see pages: BLP-M (231) H606 ER-M (244) HM390 ETD-M (24) HM390 ETP-M (18) P290 ACK-M (211) T490 LNK-M-13 (207)
- T490 LNM-M-08 (206)
SHANK CAB... HCM-M
SHANK S M...-CF4 CDP
