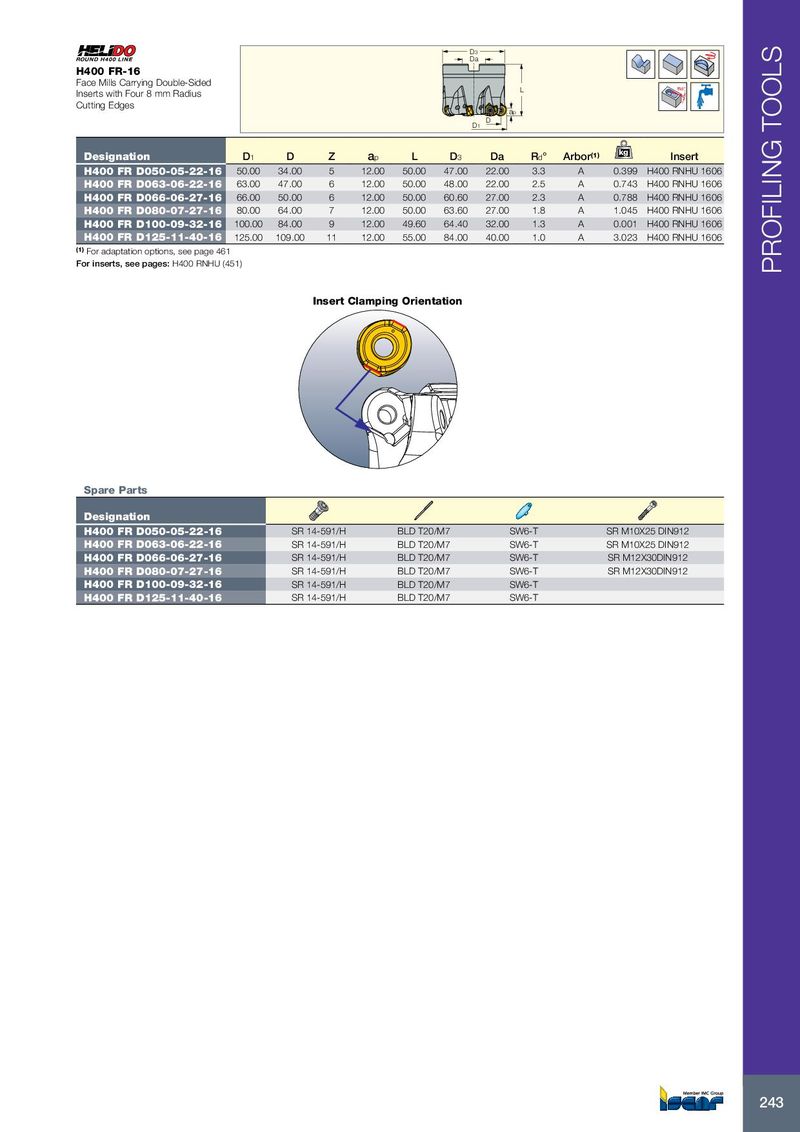

D3 Da H400 FR-16 Face Mills Carrying Double-Sided L Rd° Inserts with Four 8 mm Radius Cutting Edges ap D D1 kg Designation D 1 D Z a p L D 3 Da R d ° Arbor (1) Insert H400 FR D050-05-22-16 50.00 34.00 5 12.00 50.00 47.00 22.00 3.3 A 0.399 H400 RNHU 1606 H400 FR D063-06-22-16 63.00 47.00 6 12.00 50.00 48.00 22.00 2.5 A 0.743 H400 RNHU 1606 H400 FR D066-06-27-16 66.00 50.00 6 12.00 50.00 60.60 27.00 2.3 A 0.788 H400 RNHU 1606 H400 FR D080-07-27-16 80.00 64.00 7 12.00 50.00 63.60 27.00 1.8 A 1.045 H400 RNHU 1606 H400 FR D100-09-32-16 100.00 84.00 9 12.00 49.60 64.40 32.00 1.3 A 0.001 H400 RNHU 1606 H400 FR D125-11-40-16 125.00 109.00 11 12.00 55.00 84.00 40.00 1.0 A 3.023 H400 RNHU 1606 (1) For adaptation options, see page 461 For inserts, see pages: H400 RNHU (451) PROFILING TOOLS Insert Clamping Orientation Spare Parts Designation H400 FR D050-05-22-16 SR 14-591/H BLD T20/M7 SW6-T SR M10X25 DIN912 H400 FR D063-06-22-16 SR 14-591/H BLD T20/M7 SW6-T SR M10X25 DIN912 H400 FR D066-06-27-16 SR 14-591/H BLD T20/M7 SW6-T SR M12X30DIN912 H400 FR D080-07-27-16 SR 14-591/H BLD T20/M7 SW6-T SR M12X30DIN912 H400 FR D100-09-32-16 SR 14-591/H BLD T20/M7 SW6-T H400 FR D125-11-40-16 SR 14-591/H BLD T20/M7 SW6-T 243
