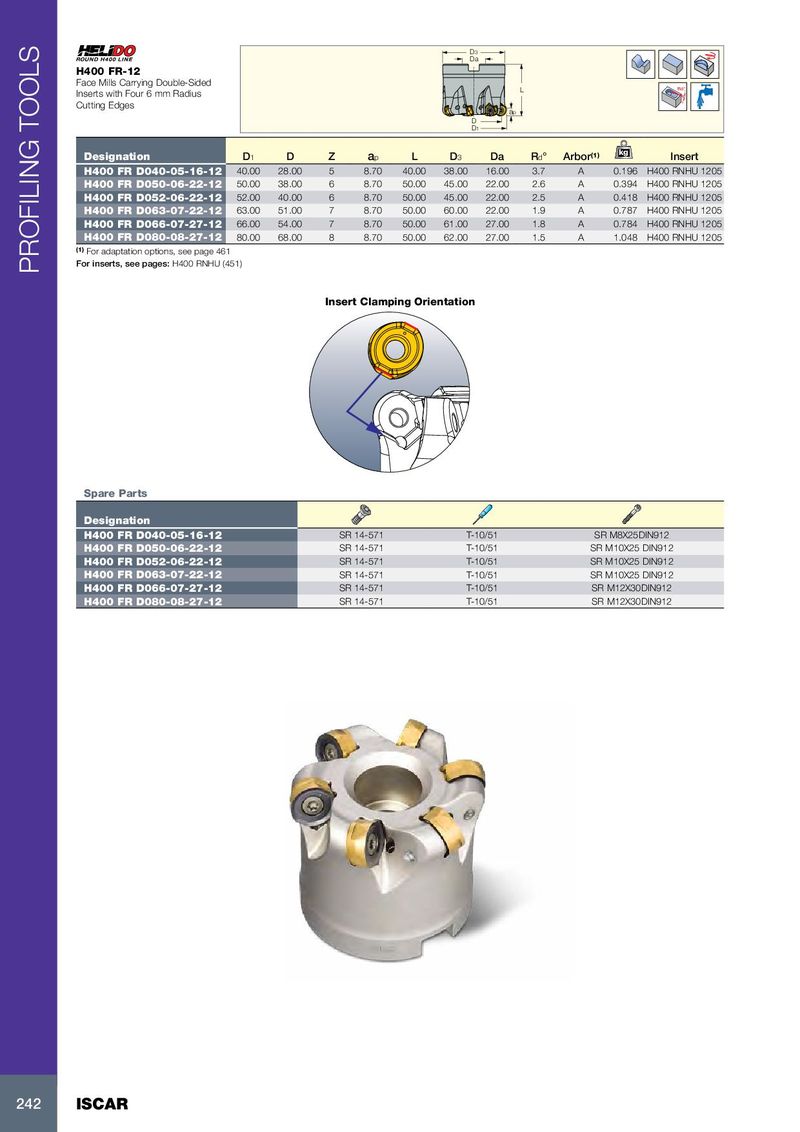

D3 Da H400 FR-12 Face Mills Carrying Double-Sided L Rd° Inserts with Four 6 mm Radius Cutting Edges ap D D1 kg Designation D 1 D Z a p L D 3 Da R d ° Arbor (1) Insert H400 FR D040-05-16-12 40.00 28.00 5 8.70 40.00 38.00 16.00 3.7 A 0.196 H400 RNHU 1205 H400 FR D050-06-22-12 50.00 38.00 6 8.70 50.00 45.00 22.00 2.6 A 0.394 H400 RNHU 1205 H400 FR D052-06-22-12 52.00 40.00 6 8.70 50.00 45.00 22.00 2.5 A 0.418 H400 RNHU 1205 H400 FR D063-07-22-12 63.00 51.00 7 8.70 50.00 60.00 22.00 1.9 A 0.787 H400 RNHU 1205 H400 FR D066-07-27-12 66.00 54.00 7 8.70 50.00 61.00 27.00 1.8 A 0.784 H400 RNHU 1205 H400 FR D080-08-27-12 80.00 68.00 8 8.70 50.00 62.00 27.00 1.5 A 1.048 H400 RNHU 1205 (1) For adaptation options, see page 461 For inserts, see pages: H400 RNHU (451) PROFILING TOOLS Insert Clamping Orientation Spare Parts Designation H400 FR D040-05-16-12 SR 14-571 T-10/51 SR M8X25DIN912 H400 FR D050-06-22-12 SR 14-571 T-10/51 SR M10X25 DIN912 H400 FR D052-06-22-12 SR 14-571 T-10/51 SR M10X25 DIN912 H400 FR D063-07-22-12 SR 14-571 T-10/51 SR M10X25 DIN912 H400 FR D066-07-27-12 SR 14-571 T-10/51 SR M12X30DIN912 H400 FR D080-08-27-12 SR 14-571 T-10/51 SR M12X30DIN912 242 ISCAR
