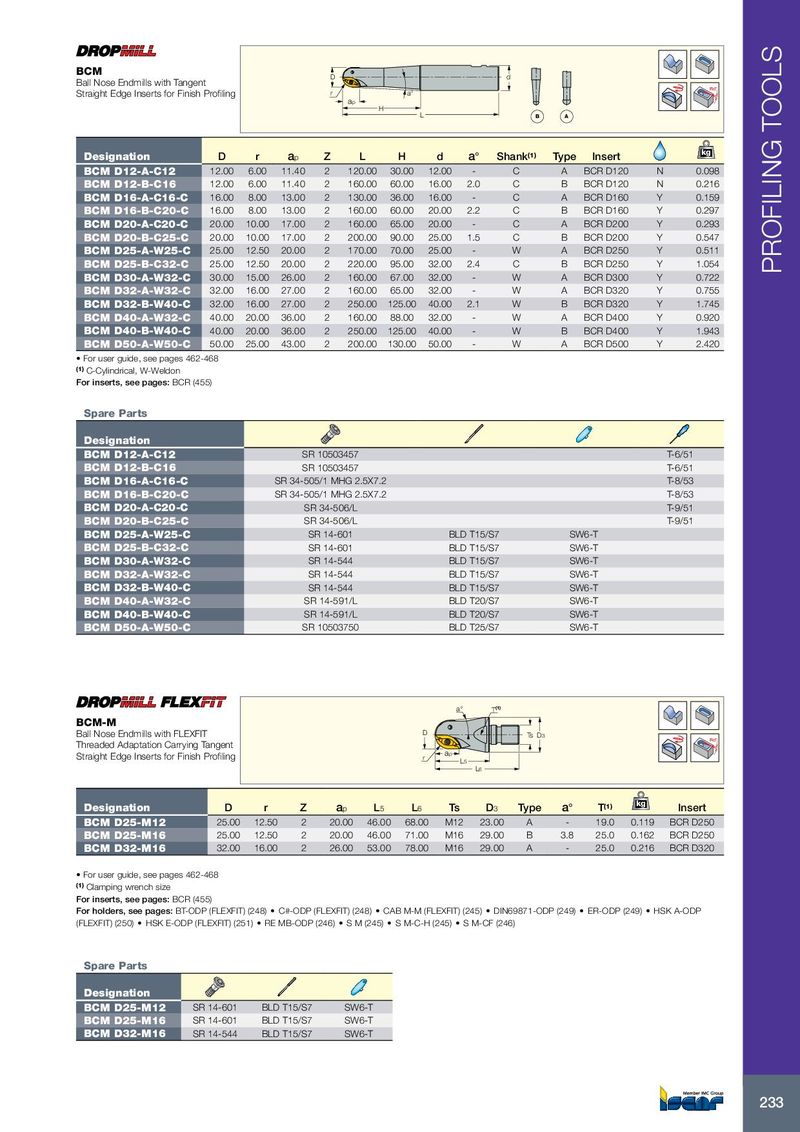

| BCM Ball Nose Endmills with Tangen Straight Edge Inserts for Finish | t Profiling | | | D r | H ap | a° L | | | d B | A | | | Rd° |
| Designation | D | r | ap | Z | L | H | d | a° | Shank(1) | Type | Insert | | kg |
| BCM D12-A-C12 | 12.00 | 6.00 | 11.40 | 2 | 120.00 | 30.00 | 12.00 | - | C | A | BCR D120 | N | 0.098 |
| BCM D12-B-C16 | 12.00 | 6.00 | 11.40 | 2 | 160.00 | 60.00 | 16.00 | 2.0 | C | B | BCR D120 | N | 0.216 |
| BCM D16-A-C16-C | 16.00 | 8.00 | 13.00 | 2 | 130.00 | 36.00 | 16.00 | - | C | A | BCR D160 | Y | 0.159 |
| BCM D16-B-C20-C | 16.00 | 8.00 | 13.00 | 2 | 160.00 | 60.00 | 20.00 | 2.2 | C | B | BCR D160 | Y | 0.297 |
| BCM D20-A-C20-C | 20.00 | 10.00 | 17.00 | 2 | 160.00 | 65.00 | 20.00 | - | C | A | BCR D200 | Y | 0.293 |
| BCM D20-B-C25-C | 20.00 | 10.00 | 17.00 | 2 | 200.00 | 90.00 | 25.00 | 1.5 | C | B | BCR D200 | Y | 0.547 |
| BCM D25-A-W25-C | 25.00 | 12.50 | 20.00 | 2 | 170.00 | 70.00 | 25.00 | - | W | A | BCR D250 | Y | 0.511 |
| BCM D25-B-C32-C | 25.00 | 12.50 | 20.00 | 2 | 220.00 | 95.00 | 32.00 | 2.4 | C | B | BCR D250 | Y | 1.054 |
| BCM D30-A-W32-C | 30.00 | 15.00 | 26.00 | 2 | 160.00 | 67.00 | 32.00 | - | W | A | BCR D300 | Y | 0.722 |
| BCM D32-A-W32-C | 32.00 | 16.00 | 27.00 | 2 | 160.00 | 65.00 | 32.00 | - | W | A | BCR D320 | Y | 0.755 |
| BCM D32-B-W40-C | 32.00 | 16.00 | 27.00 | 2 | 250.00 | 125.00 | 40.00 | 2.1 | W | B | BCR D320 | Y | 1.745 |
| BCM D40-A-W32-C | 40.00 | 20.00 | 36.00 | 2 | 160.00 | 88.00 | 32.00 | - | W | A | BCR D400 | Y | 0.920 |
| BCM D40-B-W40-C | 40.00 | 20.00 | 36.00 | 2 | 250.00 | 125.00 | 40.00 | - | W | B | BCR D400 | Y | 1.943 |
| BCM D50-A-W50-C | 50.00 | 25.00 | 43.00 | 2 | 200.00 | 130.00 | 50.00 | - | W | A | BCR D500 | Y | 2.420 |
- For user guide, see pages 462-468
(1) C-Cylindrical, W-Weldon For inserts, see pages: BCR (455)
Spare Parts
| Designation | | | | |
| BCM D12-A-C12 | SR 10503457 | | | T-6/51 |
| BCM D12-B-C16 | SR 10503457 | | | T-6/51 |
| BCM D16-A-C16-C | SR 34-505/1 MHG 2.5X7.2 | | | T-8/53 |
| BCM D16-B-C20-C | SR 34-505/1 MHG 2.5X7.2 | | | T-8/53 |
| BCM D20-A-C20-C | SR 34-506/L | | | T-9/51 |
| BCM D20-B-C25-C | SR 34-506/L | | | T-9/51 |
| BCM D25-A-W25-C | SR 14-601 | BLD T15/S7 | SW6-T | |
| BCM D25-B-C32-C | SR 14-601 | BLD T15/S7 | SW6-T | |
| BCM D30-A-W32-C | SR 14-544 | BLD T15/S7 | SW6-T | |
| BCM D32-A-W32-C | SR 14-544 | BLD T15/S7 | SW6-T | |
| BCM D32-B-W40-C | SR 14-544 | BLD T15/S7 | SW6-T | |
| BCM D40-A-W32-C | SR 14-591/L | BLD T20/S7 | SW6-T | |
| BCM D40-B-W40-C | SR 14-591/L | BLD T20/S7 | SW6-T | |
| BCM D50-A-W50-C | SR 10503750 | BLD T25/S7 | SW6-T | |
| Designation BCM-M Ball Nose Endmills with FLEXFIT Threaded Adaptation Carrying Ta Straight Edge Inserts for Finish Pr | D ngent ofiling | r | Z | ap | L5 | D r L6 | ap L5 a° Ts | L6 T(1) D3 | Ts D3 Type | a° | T(1) | kg | Rd° Insert |
| BCM D25-M12 | 25.00 | 12.50 | 2 | 20.00 | 46.00 | 68.00 | M12 | 23.00 | A | - | 19.0 | 0.119 | BCR D250 |
| BCM D25-M16 | 25.00 | 12.50 | 2 | 20.00 | 46.00 | 71.00 | M16 | 29.00 | B | 3.8 | 25.0 | 0.162 | BCR D250 |
| BCM D32-M16 | 32.00 | 16.00 | 2 | 26.00 | 53.00 | 78.00 | M16 | 29.00 | A | - | 25.0 | 0.216 | BCR D320 |
- For user guide, see pages 462-468
(1) Clamping wrench size For inserts, see pages: BCR (455) For holders, see pages: BT-ODP (FLEXFIT) (248) C#-ODP (FLEXFIT) (248) CAB M-M (FLEXFIT) (245) DIN69871-ODP (249) ER-ODP (249) HSK A-ODP (FLEXFIT) (250) HSK E-ODP (FLEXFIT) (251) RE MB-ODP (246) S M (245) S M-C-H (245) S M-CF (246)
| Spare Parts | | | |
| Designation | | | |
| BCM D25-M12 | SR 14-601 | BLD T15/S7 | SW6-T |
| BCM D25-M16 | SR 14-601 | BLD T15/S7 | SW6-T |
| BCM D32-M16 | SR 14-544 | BLD T15/S7 | SW6-T |
