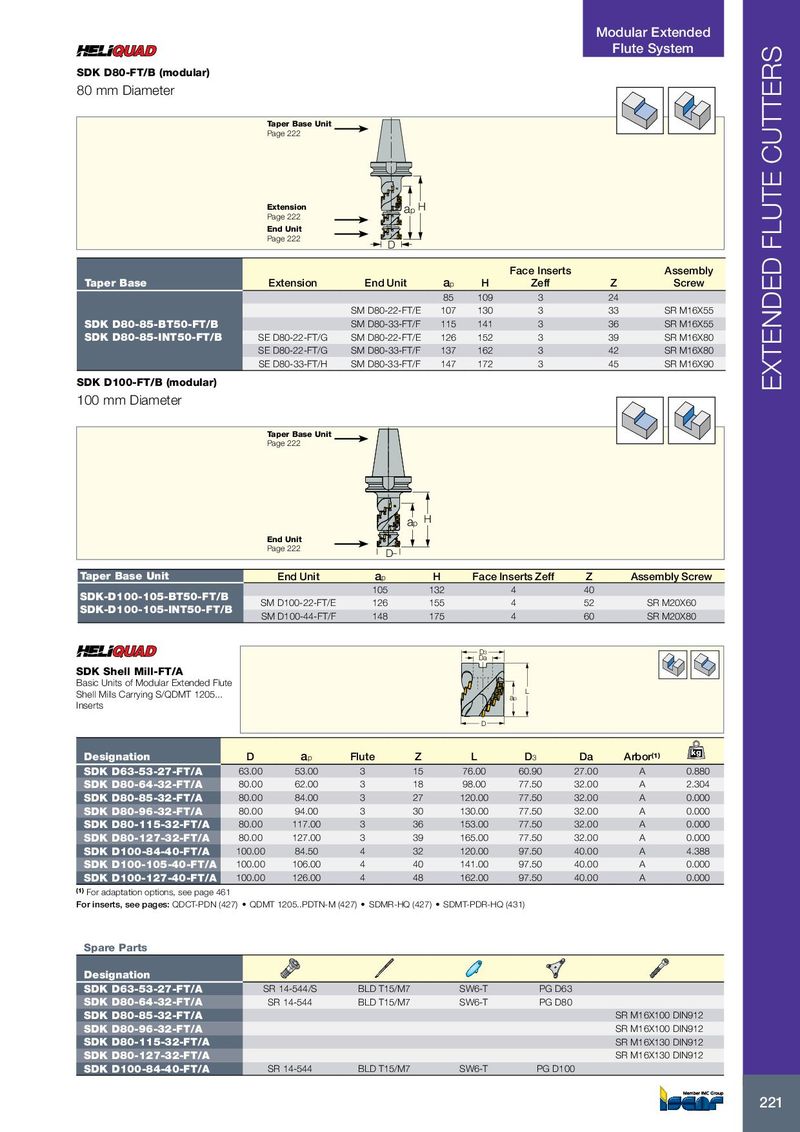

Каталог Iscar вращающийся инструмент 2017 - страница 225
Навигация
Каталог Iscar токарные пластины ISO 2022
Каталог Iscar инструмент для фрезерования
Каталог Iscar решения для глубокого сверления
Каталог Iscar полирующие фрезы
Новые режущие инструменты Iscar 2026
Каталог Iscar новые продукты 2018
SDK D80-FT/B (modular)
80 mm Diameter
Modular Extended
Flute System
| Taper Base Unit Page 222 | |||||||
| Extension Page 222 End Unit Page 222 | H ap D | ||||||
| Taper Base | Extension | End Unit | ap | H | Face Inserts Zeff | Z | Assembly Screw |
| 85 | 109 | 3 | 24 | ||||
| SM D80-22-FT/E | 107 | 130 | 3 | 33 | SR M16X55 | ||
| SDK D80-85-BT50-FT/B | SM D80-33-FT/F | 115 | 141 | 3 | 36 | SR M16X55 | |
| SDK D80-85-INT50-FT/B | SE D80-22-FT/G | SM D80-22-FT/E | 126 | 152 | 3 | 39 | SR M16X80 |
| SE D80-22-FT/G | SM D80-33-FT/F | 137 | 162 | 3 | 42 | SR M16X80 | |
| SE D80-33-FT/H | SM D80-33-FT/F | 147 | 172 | 3 | 45 | SR M16X90 |
SDK D100-FT/B (modular)
100 mm Diameter
| Taper Base Unit Page 222 | ||||
| End Unit Page 222 | ap H D | |||
| Taper Base Unit | End Unit | ap H | Face Inserts Zeff | Z Assembly Screw |
| SDKD100105BT50FT/B | 105 132 | 4 | 40 | |
| ---- SDKD100105INT50FT/B | SM D100-22-FT/E | 126 155 | 4 | 52 SR M20X60 |
| ---- | SM D100-44-FT/F | 148 175 | 4 | 60 SR M20X80 |
SDK Shell Mill-FT/A
Basic Units of Modular Extended Flute Shell Mills Carrying S/QDMT 1205... Inserts
D3 Da
L ap
D
| Designation | D | ap | Flute | Z | L | D3 | Da | Arbor(1) | kg |
| SDK D63-53-27-FT/A | 63.00 | 53.00 | 3 | 15 | 76.00 | 60.90 | 27.00 | A | 0.880 |
| SDK D80-64-32-FT/A | 80.00 | 62.00 | 3 | 18 | 98.00 | 77.50 | 32.00 | A | 2.304 |
| SDK D80-85-32-FT/A | 80.00 | 84.00 | 3 | 27 | 120.00 | 77.50 | 32.00 | A | 0.000 |
| SDK D80-96-32-FT/A | 80.00 | 94.00 | 3 | 30 | 130.00 | 77.50 | 32.00 | A | 0.000 |
| SDK D80-115-32-FT/A | 80.00 | 117.00 | 3 | 36 | 153.00 | 77.50 | 32.00 | A | 0.000 |
| SDK D80-127-32-FT/A | 80.00 | 127.00 | 3 | 39 | 165.00 | 77.50 | 32.00 | A | 0.000 |
| SDK D100-84-40-FT/A | 100.00 | 84.50 | 4 | 32 | 120.00 | 97.50 | 40.00 | A | 4.388 |
| SDK D100-105-40-FT/A | 100.00 | 106.00 | 4 | 40 | 141.00 | 97.50 | 40.00 | A | 0.000 |
| SDK D100-127-40-FT/A | 100.00 | 126.00 | 4 | 48 | 162.00 | 97.50 | 40.00 | A | 0.000 |
(1) For adaptation options, see page 461 For inserts, see pages: QDCT-PDN (427) • QDMT 1205..PDTN-M (427) • SDMR-HQ (427) • SDMT-PDR-HQ (431)
Spare Parts
| Designation | |||||
| SDK D63-53-27-FT/A | SR 14-544/S | BLD T15/M7 | SW6-T | PG D63 | |
| SDK D80-64-32-FT/A | SR 14-544 | BLD T15/M7 | SW6-T | PG D80 | |
| SDK D80-85-32-FT/A | SR M16X100 DIN912 | ||||
| SDK D80-96-32-FT/A | SR M16X100 DIN912 | ||||
| SDK D80-115-32-FT/A | SR M16X130 DIN912 | ||||
| SDK D80-127-32-FT/A | SR M16X130 DIN912 | ||||
| SDK D100-84-40-FT/A | SR 14-544 | BLD T15/M7 | SW6-T | PG D100 |
