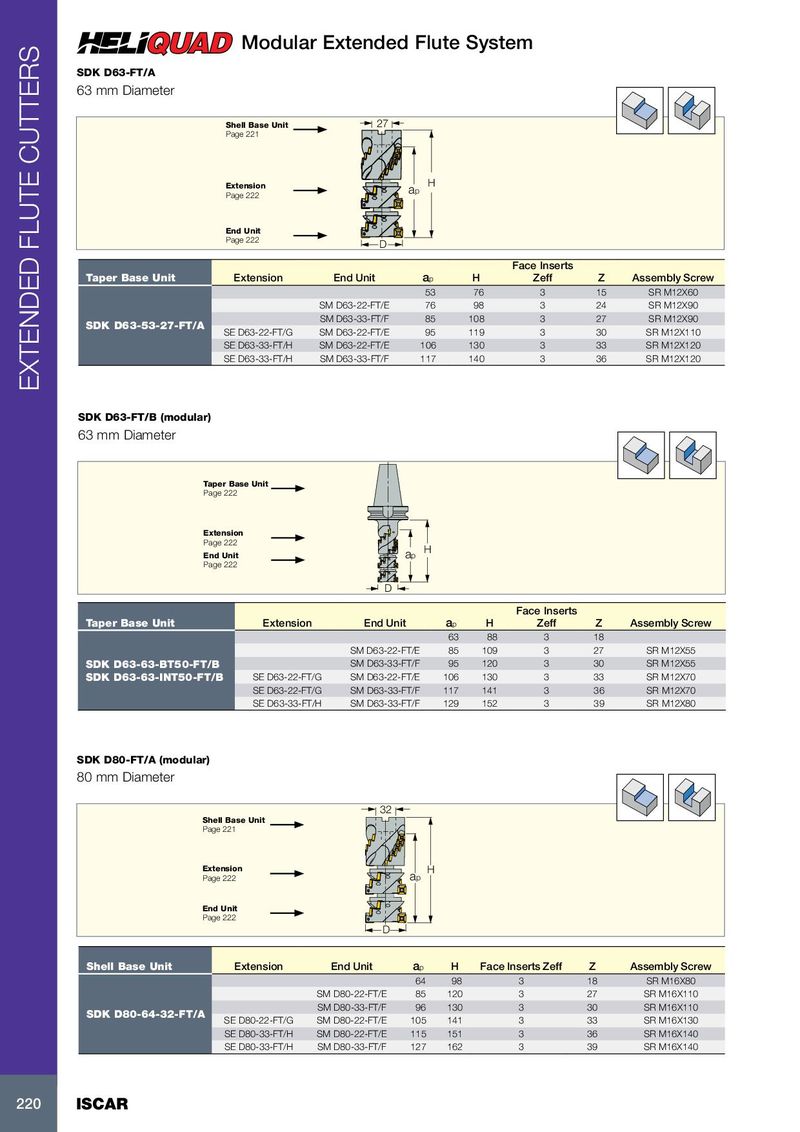

Modular Extended Flute System SDK D63-FT/A 63 mm Diameter Shell Base Unit 27 Page 221 Extension H ap Page 222 End Unit Page 222 D Face Inserts Taper Base Unit Extension End Unit a p H Zeff Z Assembly Screw 53 76 3 15 SR M12X60 SM D63-22-FT/E 76 98 3 24 SR M12X90 SM D63-33-FT/F 85 108 3 27 SR M12X90 SDK D63-53-27-FT/A SE D63-22-FT/G SM D63-22-FT/E 95 119 3 30 SR M12X110 SE D63-33-FT/H SM D63-22-FT/E 106 130 3 33 SR M12X120 SE D63-33-FT/H SM D63-33-FT/F 117 140 3 36 SR M12X120 EXTENDED FLUTE CUTTERS SDK D63-FT/B (modular) 63 mm Diameter Taper Base Unit Page 222 Extension Page 222 H End Unit ap Page 222 D Face Inserts Taper Base Unit Extension End Unit a p H Zeff Z Assembly Screw 63 88 3 18 SM D63-22-FT/E 85 109 3 27 SR M12X55 SDK D63-63-BT50-FT/B SM D63-33-FT/F 95 120 3 30 SR M12X55 SDK D63-63-INT50-FT/B SE D63-22-FT/G SM D63-22-FT/E 106 130 3 33 SR M12X70 SE D63-22-FT/G SM D63-33-FT/F 117 141 3 36 SR M12X70 SE D63-33-FT/H SM D63-33-FT/F 129 152 3 39 SR M12X80 SDK D80-FT/A (modular) 80 mm Diameter 32 Shell Base Unit Page 221 Extension H Page 222 ap End Unit Page 222 D Shell Base Unit Extension End Unit a p H Face Inserts Zeff Z Assembly Screw 64 98 3 18 SR M16X80 SM D80-22-FT/E 85 120 3 27 SR M16X110 SM D80-33-FT/F 96 130 3 30 SR M16X110 SDK D80-64-32-FT/A SE D80-22-FT/G SM D80-22-FT/E 105 141 3 33 SR M16X130 SE D80-33-FT/H SM D80-22-FT/E 115 151 3 36 SR M16X140 SE D80-33-FT/H SM D80-33-FT/F 127 162 3 39 SR M16X140 220 ISCAR
