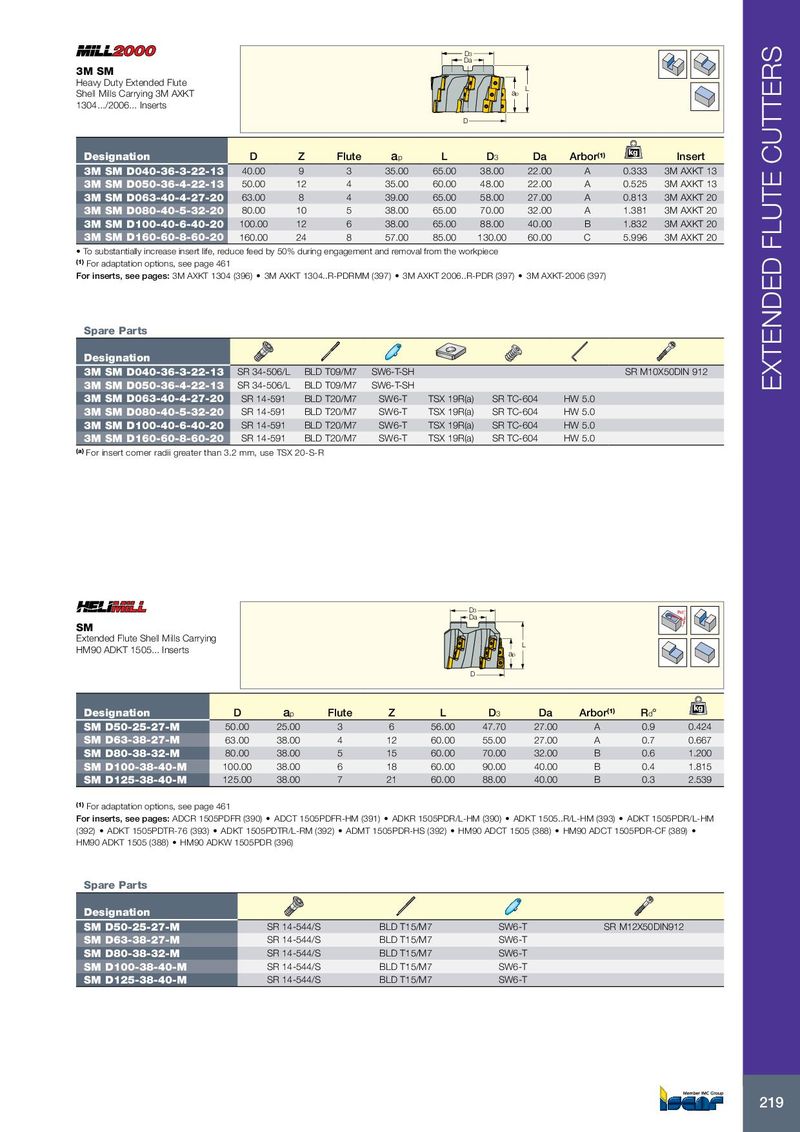

Каталог Iscar вращающийся инструмент 2017 - страница 223
Навигация
Каталог Iscar токарные пластины ISO 2022
Каталог Iscar инструмент для фрезерования
Каталог Iscar решения для глубокого сверления
Каталог Iscar полирующие фрезы
Новые режущие инструменты Iscar 2026
Каталог Iscar новые продукты 2018
| M SM eavy Duty Extended Flute hell Mills Carrying 3M AXKT 304.../2006... Inserts | D | a D3 | ap | L | |||||||
| D | |||||||||||
| Designation | D | Z | Flute | ap | L | D3 | Da | Arbor(1) | kg | Insert | |
| 3M SM D040-36-3-22-13 | 40.00 | 9 | 3 | 35.00 | 65.00 | 38.00 | 22.00 | A | 0.333 | 3M AXKT 13 | |
| 3M SM D050-36-4-22-13 | 50.00 | 12 | 4 | 35.00 | 60.00 | 48.00 | 22.00 | A | 0.525 | 3M AXKT 13 | |
| 3M SM D063-40-4-27-20 | 63.00 | 8 | 4 | 39.00 | 65.00 | 58.00 | 27.00 | A | 0.813 | 3M AXKT 20 | |
| 3M SM D080-40-5-32-20 | 80.00 | 10 | 5 | 38.00 | 65.00 | 70.00 | 32.00 | A | 1.381 | 3M AXKT 20 | |
| 3M SM D100-40-6-40-20 | 100.00 | 12 | 6 | 38.00 | 65.00 | 88.00 | 40.00 | B | 1.832 | 3M AXKT 20 | |
| 3M SM D160-60-8-60-20 | 160.00 | 24 | 8 | 57.00 | 85.00 | 130.00 | 60.00 | C | 5.996 | 3M AXKT 20 |
- To substantially increase insert life, reduce feed by 50% during engagement and removal from the workpiece
(1) For adaptation options, see page 461 For inserts, see pages: 3M AXKT 1304 (396) 3M AXKT 1304..R-PDRMM (397) 3M AXKT 2006..R-PDR (397) 3M AXKT-2006 (397)
| Spare Parts | |||||||
| Designation | |||||||
| 3M SM D040-36-3-22-13 | SR 34-506/L | BLD T09/M7 | SW6-T-SH | SR M10X50DIN 912 | |||
| 3M SM D050-36-4-22-13 | SR 34-506/L | BLD T09/M7 | SW6-T-SH | ||||
| 3M SM D063-40-4-27-20 | SR 14-591 | BLD T20/M7 | SW6-T | TSX 19R(a) | SR TC-604 | HW 5.0 | |
| 3M SM D080-40-5-32-20 | SR 14-591 | BLD T20/M7 | SW6-T | TSX 19R(a) | SR TC-604 | HW 5.0 | |
| 3M SM D100-40-6-40-20 | SR 14-591 | BLD T20/M7 | SW6-T | TSX 19R(a) | SR TC-604 | HW 5.0 | |
| 3M SM D160-60-8-60-20 | SR 14-591 | BLD T20/M7 | SW6-T | TSX 19R(a) | SR TC-604 | HW 5.0 |
(a) For insert corner radii greater than 3.2 mm, use TSX 20-S-R
SM
Extended Flute Shell Mills Carrying HM90 ADKT 1505... Inserts
D 3 Da Rd°
L ap D
| Designation | D | ap | Flute | Z | L | D3 | Da | Arbor(1) | Rd° | kg |
| SM D50-25-27-M | 50.00 | 25.00 | 3 | 6 | 56.00 | 47.70 | 27.00 | A | 0.9 | 0.424 |
| SM D63-38-27-M | 63.00 | 38.00 | 4 | 12 | 60.00 | 55.00 | 27.00 | A | 0.7 | 0.667 |
| SM D80-38-32-M | 80.00 | 38.00 | 5 | 15 | 60.00 | 70.00 | 32.00 | B | 0.6 | 1.200 |
| SM D100-38-40-M | 100.00 | 38.00 | 6 | 18 | 60.00 | 90.00 | 40.00 | B | 0.4 | 1.815 |
| SM D125-38-40-M | 125.00 | 38.00 | 7 | 21 | 60.00 | 88.00 | 40.00 | B | 0.3 | 2.539 |
(1) For adaptation options, see page 461 For inserts, see pages: ADCR 1505PDFR (390) ADCT 1505PDFR-HM (391) ADKR 1505PDR/L-HM (390) ADKT 1505..R/L-HM (393) ADKT 1505PDR/L-HM (392) ADKT 1505PDTR-76 (393) ADKT 1505PDTR/L-RM (392) ADMT 1505PDR-HS (392) HM90 ADCT 1505 (388) HM90 ADCT 1505PDR-CF (389) HM90 ADKT 1505 (388) HM90 ADKW 1505PDR (396)
| Spare Parts | ||||
| Designation | ||||
| SM D50-25-27-M | SR 14-544/S | BLD T15/M7 | SW6-T | SR M12X50DIN912 |
| SM D63-38-27-M | SR 14-544/S | BLD T15/M7 | SW6-T | |
| SM D80-38-32-M | SR 14-544/S | BLD T15/M7 | SW6-T | |
| SM D100-38-40-M | SR 14-544/S | BLD T15/M7 | SW6-T | |
| SM D125-38-40-M | SR 14-544/S | BLD T15/M7 | SW6-T |
