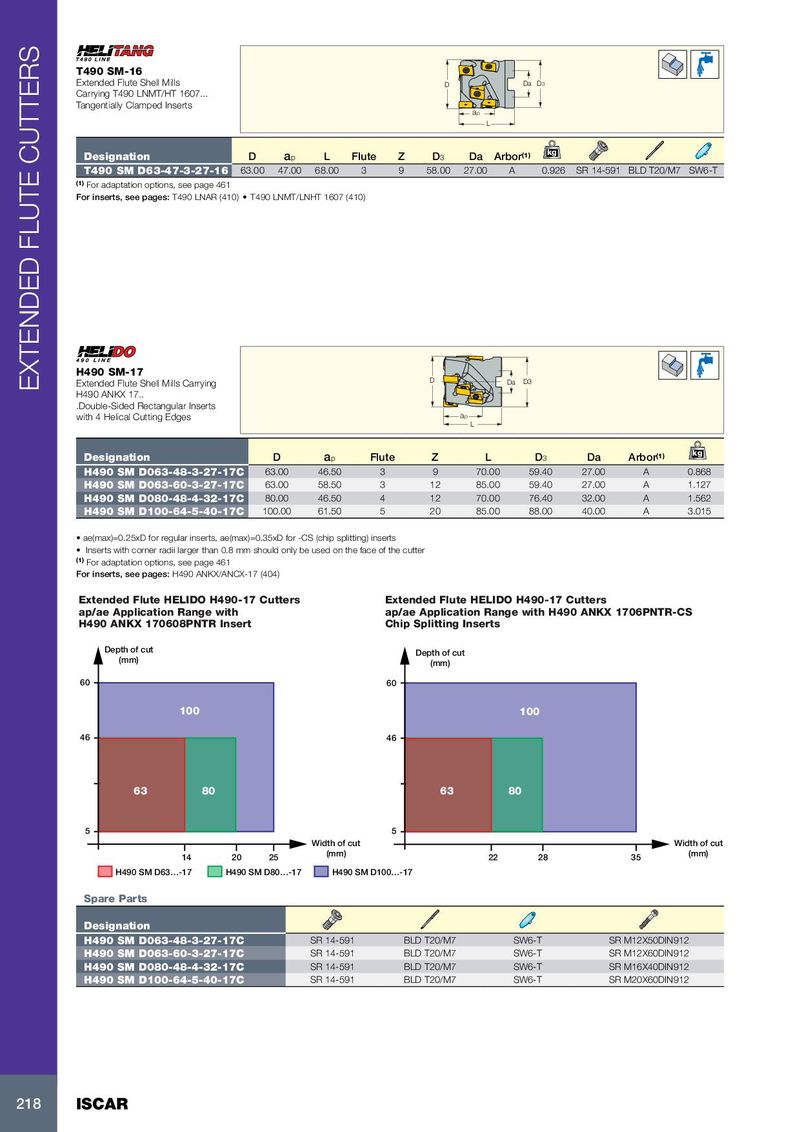

Каталог Iscar вращающийся инструмент 2017 - страница 222

T490 SM-16 Extended Flute Shell Mills D Da D3 Carrying T490 LNMT/HT 1607... Tangentially Clamped Inserts ap L Designation D a p L Flute Z D 3 Da Arbor (1) kg T490 SM D63-47-3-27-16 63.00 47.00 68.00 3 9 58.00 27.00 A 0.926 SR 14-591 BLD T20/M7 SW6-T (1) For adaptation options, see page 461 For inserts, see pages: T490 LNAR (410) • T490 LNMT/LNHT 1607 (410) H490 SM-17 Extended Flute Shell Mills Carrying D Da D3 EXTENDED FLUTE CUTTERS H490 ANKX 17.. .Double-Sided Rectangular Inserts with 4 Helical Cutting Edges ap L kg Designation D a p Flute Z L D 3 Da Arbor (1) H490 SM D063-48-3-27-17C 63.00 46.50 3 9 70.00 59.40 27.00 A 0.868 H490 SM D063-60-3-27-17C 63.00 58.50 3 12 85.00 59.40 27.00 A 1.127 H490 SM D080-48-4-32-17C 80.00 46.50 4 12 70.00 76.40 32.00 A 1.562 H490 SM D100-64-5-40-17C 100.00 61.50 5 20 85.00 88.00 40.00 A 3.015 • ae(max)=0.25xD for regular inserts, ae(max)=0.35xD for -CS (chip splitting) inserts • Inserts with corner radii larger than 0.8 mm should only be used on the face of the cutter (1) For adaptation options, see page 461 For inserts, see pages: H490 ANKX/ANCX-17 (404) Extended Flute HELIDO H490-17 Cutters Extended Flute HELIDO H490-17 Cutters ap/ae Application Range with ap/ae Application Range with H490 ANKX 1706PNTR-CS H490 ANKX 170608PNTR Insert Chip Splitting Inserts Depth of cut Depth of cut (mm) 80 80 (mm) 60 60 H490 SM D63…-17 100 100 H490 SM D80…-17 H490 SM D100…-17 46 46 63 80 63 80 5 5 Width of cut Width of cut (mm) (mm) 14 20 25 22 28 35 H490 SM D63…-17 H490 SM D80…-17 H490 SM D100…-17 Spare Parts Designation H490 SM D063-48-3-27-17C SR 14-591 BLD T20/M7 SW6-T SR M12X50DIN912 H490 SM D063-60-3-27-17C SR 14-591 BLD T20/M7 SW6-T SR M12X60DIN912 H490 SM D080-48-4-32-17C SR 14-591 BLD T20/M7 SW6-T SR M16X40DIN912 H490 SM D100-64-5-40-17C SR 14-591 BLD T20/M7 SW6-T SR M20X60DIN912 218 ISCAR
