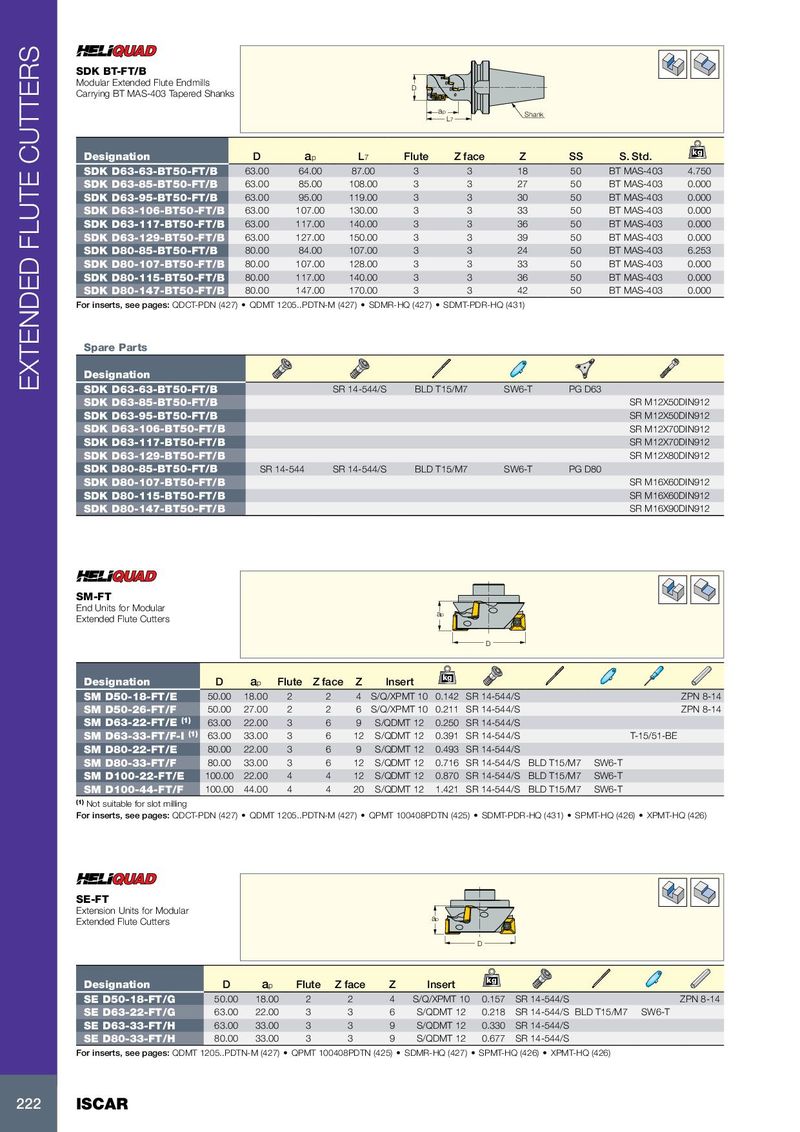

SDK BT-FT/B
| Modular Extended Flute Endmills Carrying BT MAS-403 Tapered Shanks | L7 ap D | Shank | ||||||
| Designation | D | ap | L7 | Flute Z face | Z | SS | S. Std. | kg |
| SDK D63-63-BT50-FT/B | 63.00 | 64.00 | 87.00 | 3 3 | 18 | 50 | BT MAS-403 | 4.750 |
| SDK D63-85-BT50-FT/B | 63.00 | 85.00 | 108.00 | 3 3 | 27 | 50 | BT MAS-403 | 0.000 |
| SDK D63-95-BT50-FT/B | 63.00 | 95.00 | 119.00 | 3 3 | 30 | 50 | BT MAS-403 | 0.000 |
| SDK D63-106-BT50-FT/B | 63.00 | 107.00 | 130.00 | 3 3 | 33 | 50 | BT MAS-403 | 0.000 |
| SDK D63-117-BT50-FT/B | 63.00 | 117.00 | 140.00 | 3 3 | 36 | 50 | BT MAS-403 | 0.000 |
| SDK D63-129-BT50-FT/B | 63.00 | 127.00 | 150.00 | 3 3 | 39 | 50 | BT MAS-403 | 0.000 |
| SDK D80-85-BT50-FT/B | 80.00 | 84.00 | 107.00 | 3 3 | 24 | 50 | BT MAS-403 | 6.253 |
| SDK D80-107-BT50-FT/B | 80.00 | 107.00 | 128.00 | 3 3 | 33 | 50 | BT MAS-403 | 0.000 |
| SDK D80-115-BT50-FT/B | 80.00 | 117.00 | 140.00 | 3 3 | 36 | 50 | BT MAS-403 | 0.000 |
| SDK D80-147-BT50-FT/B | 80.00 | 147.00 | 170.00 | 3 3 | 42 | 50 | BT MAS-403 | 0.000 |
For inserts, see pages: QDCT-PDN (427) • QDMT 1205..PDTN-M (427) • SDMR-HQ (427) • SDMT-PDR-HQ (431)
| Spare Parts | ||||||
| Designation | ||||||
| SDK D63-63-BT50-FT/B | SR 14-544/S | BLD T15/M7 | SW6-T | PG D63 | ||
| SDK D63-85-BT50-FT/B | SR M12X50DIN912 | |||||
| SDK D63-95-BT50-FT/B | SR M12X50DIN912 | |||||
| SDK D63-106-BT50-FT/B | SR M12X70DIN912 | |||||
| SDK D63-117-BT50-FT/B | SR M12X70DIN912 | |||||
| SDK D63-129-BT50-FT/B | SR M12X80DIN912 | |||||
| SDK D80-85-BT50-FT/B | SR 14-544 | SR 14-544/S | BLD T15/M7 | SW6-T | PG D80 | |
| SDK D80-107-BT50-FT/B | SR M16X60DIN912 | |||||
| SDK D80-115-BT50-FT/B | SR M16X60DIN912 | |||||
| SDK D80-147-BT50-FT/B | SR M16X90DIN912 |
SM-FT
End Units for Modular Extended Flute Cutters ap
D
| Designation | D | ap | Flute | Z face | Z Insert | kg | |||||
| SM D50-18-FT/E | 50.00 | 18.00 | 2 | 2 | 4 S/Q/XPMT 10 | 0.142 | SR 14-544/S | ZPN 8-14 | |||
| SM D50-26-FT/F | 50.00 | 27.00 | 2 | 2 | 6 S/Q/XPMT 10 | 0.211 | SR 14-544/S | ZPN 8-14 | |||
| SM D63-22-FT/E(1) | 63.00 | 22.00 | 3 | 6 | 9 S/QDMT 12 | 0.250 | SR 14-544/S | ||||
| SM D63-33-FT/F-I(1) | 63.00 | 33.00 | 3 | 6 | 12 S/QDMT 12 | 0.391 | SR 14-544/S | T-15/51-BE | |||
| SM D80-22-FT/E | 80.00 | 22.00 | 3 | 6 | 9 S/QDMT 12 | 0.493 | SR 14-544/S | ||||
| SM D80-33-FT/F | 80.00 | 33.00 | 3 | 6 | 12 S/QDMT 12 | 0.716 | SR 14-544/S | BLD T15/M7 | SW6-T | ||
| SM D100-22-FT/E | 100.00 | 22.00 | 4 | 4 | 12 S/QDMT 12 | 0.870 | SR 14-544/S | BLD T15/M7 | SW6-T | ||
| SM D100-44-FT/F | 100.00 | 44.00 | 4 | 4 | 20 S/QDMT 12 | 1.421 | SR 14-544/S | BLD T15/M7 | SW6-T |
(1) Not suitable for slot milling For inserts, see pages: QDCT-PDN (427) • QDMT 1205..PDTN-M (427) • QPMT 100408PDTN (425) • SDMT-PDR-HQ (431) • SPMT-HQ (426) • XPMT-HQ (426)
SE-FT
| Extension Units for Modular Extended Flute Cutters | ap | |||||||||
| D | ||||||||||
| Designation | D | ap | Flute | Z face | Z Insert | kg | ||||
| SE D50-18-FT/G | 50.00 | 18.00 | 2 | 2 | 4 S/Q/XPMT 10 | 0.157 | SR 14-544/S | ZPN 8-14 | ||
| SE D63-22-FT/G | 63.00 | 22.00 | 3 | 3 | 6 S/QDMT 12 | 0.218 | SR 14-544/S BLD | T15/M7 | SW6-T | |
| SE D63-33-FT/H | 63.00 | 33.00 | 3 | 3 | 9 S/QDMT 12 | 0.330 | SR 14-544/S | |||
| SE D80-33-FT/H | 80.00 | 33.00 | 3 | 3 | 9 S/QDMT 12 | 0.677 | SR 14-544/S |
For inserts, see pages: QDMT 1205..PDTN-M (427) • QPMT 100408PDTN (425) • SDMR-HQ (427) • SPMT-HQ (426) • XPMT-HQ (426)
