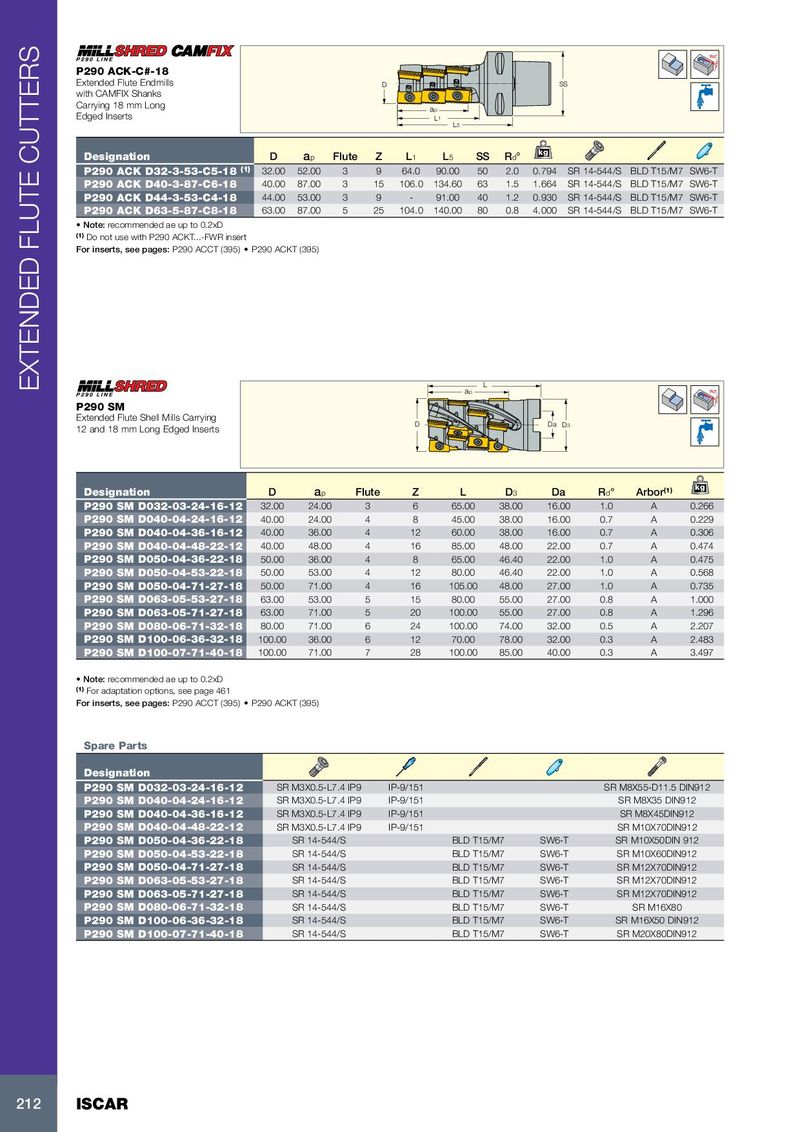

Каталог Iscar вращающийся инструмент 2017 - страница 216
Навигация
Каталог Iscar токарные пластины ISO 2022
Каталог Iscar инструмент для фрезерования
Каталог Iscar решения для глубокого сверления
Каталог Iscar полирующие фрезы
Новые режущие инструменты Iscar 2026
Каталог Iscar новые продукты 2018
| Rd° | ||||||||||||
| P290 ACK-C#-18 | ||||||||||||
| Extended Flute Endmills with CAMFIX Shanks Carrying 18 mm Long Edged Inserts | D | L1 L5 ap | S | S | ||||||||
| Designation | D | ap | Flute | Z | L1 | L5 | SS | Rd° | kg | |||
| P290 ACK D32-3-53-C5-18(1) | 32.00 | 52.00 | 3 | 9 | 64.0 | 90.00 | 50 | 2.0 | 0.794 | SR 14-544/S | BLD T15/M7 | SW6-T |
| P290 ACK D40-3-87-C6-18 | 40.00 | 87.00 | 3 | 15 | 106.0 | 134.60 | 63 | 1.5 | 1.664 | SR 14-544/S | BLD T15/M7 | SW6-T |
| P290 ACK D44-3-53-C4-18 | 44.00 | 53.00 | 3 | 9 | - | 91.00 | 40 | 1.2 | 0.930 | SR 14-544/S | BLD T15/M7 | SW6-T |
| P290 ACK D63-5-87-C8-18 | 63.00 | 87.00 | 5 | 25 | 104.0 | 140.00 | 80 | 0.8 | 4.000 | SR 14-544/S | BLD T15/M7 | SW6-T |
- Note: recommended ae up to 0.2xD
(1) Do not use with P290 ACKT...-FWR insert For inserts, see pages: P290 ACCT (395) P290 ACKT (395)
| ap L | Rd° | |||||||||
| 290 SM xtended Flute Shell Mills Carrying 2 and 18 mm Long Edged Inserts | D | Da D3 | ||||||||
| Designation | D | ap | Flute | Z | L | D3 | Da | Rd° | Arbor(1) | kg |
| P290 SM D032-03-24-16-12 | 32.00 | 24.00 | 3 | 6 | 65.00 | 38.00 | 16.00 | 1.0 | A | 0.266 |
| P290 SM D040-04-24-16-12 | 40.00 | 24.00 | 4 | 8 | 45.00 | 38.00 | 16.00 | 0.7 | A | 0.229 |
| P290 SM D040-04-36-16-12 | 40.00 | 36.00 | 4 | 12 | 60.00 | 38.00 | 16.00 | 0.7 | A | 0.306 |
| P290 SM D040-04-48-22-12 | 40.00 | 48.00 | 4 | 16 | 85.00 | 48.00 | 22.00 | 0.7 | A | 0.474 |
| P290 SM D050-04-36-22-18 | 50.00 | 36.00 | 4 | 8 | 65.00 | 46.40 | 22.00 | 1.0 | A | 0.475 |
| P290 SM D050-04-53-22-18 | 50.00 | 53.00 | 4 | 12 | 80.00 | 46.40 | 22.00 | 1.0 | A | 0.568 |
| P290 SM D050-04-71-27-18 | 50.00 | 71.00 | 4 | 16 | 105.00 | 48.00 | 27.00 | 1.0 | A | 0.735 |
| P290 SM D063-05-53-27-18 | 63.00 | 53.00 | 5 | 15 | 80.00 | 55.00 | 27.00 | 0.8 | A | 1.000 |
| P290 SM D063-05-71-27-18 | 63.00 | 71.00 | 5 | 20 | 100.00 | 55.00 | 27.00 | 0.8 | A | 1.296 |
| P290 SM D080-06-71-32-18 | 80.00 | 71.00 | 6 | 24 | 100.00 | 74.00 | 32.00 | 0.5 | A | 2.207 |
| P290 SM D100-06-36-32-18 | 100.00 | 36.00 | 6 | 12 | 70.00 | 78.00 | 32.00 | 0.3 | A | 2.483 |
| P290 SM D100-07-71-40-18 | 100.00 | 71.00 | 7 | 28 | 100.00 | 85.00 | 40.00 | 0.3 | A | 3.497 |
- Note: recommended ae up to 0.2xD
(1) For adaptation options, see page 461 For inserts, see pages: P290 ACCT (395) P290 ACKT (395)
Spare Parts
| Designation | |||||
| P290 SM D032-03-24-16-12 | SR M3X0.5-L7.4 IP9 | IP-9/151 | SR M8X55-D11.5 DIN912 | ||
| P290 SM D040-04-24-16-12 | SR M3X0.5-L7.4 IP9 | IP-9/151 | SR M8X35 DIN912 | ||
| P290 SM D040-04-36-16-12 | SR M3X0.5-L7.4 IP9 | IP-9/151 | SR M8X45DIN912 | ||
| P290 SM D040-04-48-22-12 | SR M3X0.5-L7.4 IP9 | IP-9/151 | SR M10X70DIN912 | ||
| P290 SM D050-04-36-22-18 | SR 14-544/S | BLD T15/M7 | SW6-T | SR M10X50DIN 912 | |
| P290 SM D050-04-53-22-18 | SR 14-544/S | BLD T15/M7 | SW6-T | SR M10X60DIN912 | |
| P290 SM D050-04-71-27-18 | SR 14-544/S | BLD T15/M7 | SW6-T | SR M12X70DIN912 | |
| P290 SM D063-05-53-27-18 | SR 14-544/S | BLD T15/M7 | SW6-T | SR M12X70DIN912 | |
| P290 SM D063-05-71-27-18 | SR 14-544/S | BLD T15/M7 | SW6-T | SR M12X70DIN912 | |
| P290 SM D080-06-71-32-18 | SR 14-544/S | BLD T15/M7 | SW6-T | SR M16X80 | |
| P290 SM D100-06-36-32-18 | SR 14-544/S | BLD T15/M7 | SW6-T | SR M16X50 DIN912 | |
| P290 SM D100-07-71-40-18 | SR 14-544/S | BLD T15/M7 | SW6-T | SR M20X80DIN912 |
