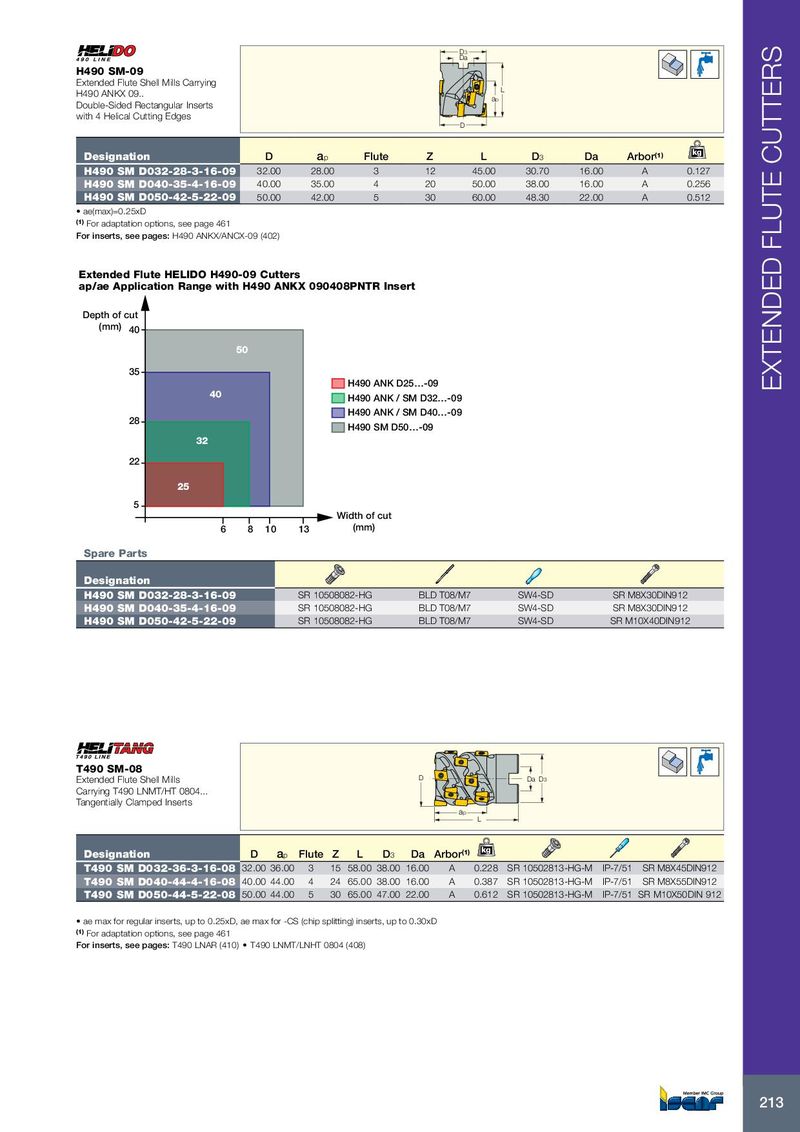

D3 Da H490 SM-09 Extended Flute Shell Mills Carrying L H490 ANKX 09.. ap Double-Sided Rectangular Inserts with 4 Helical Cutting Edges D kg Designation D a p Flute Z L D 3 Da Arbor (1) H490 SM D032-28-3-16-09 32.00 28.00 3 12 45.00 30.70 16.00 A 0.127 H490 SM D040-35-4-16-09 40.00 35.00 4 20 50.00 38.00 16.00 A 0.256 H490 SM D050-42-5-22-09 50.00 42.00 5 30 60.00 48.30 22.00 A 0.512 • ae(max)=0.25xD (1) For adaptation options, see page 461 For inserts, see pages: H490 ANKX/ANCX-09 (402) Extended Flute HELIDO H490-09 Cutters ap/ae Application Range with H490 ANKX 090408PNTR Insert Depth of cut (mm) 40 50 35 H490 ANK D25…-09 EXTENDED FLUTE CUTTERS 40 H490 ANK / SM D32…-09 H490 ANK / SM D40…-09 28 H490 SM D50…-09 32 22 25 5 Width of cut 6 8 10 13 (mm) Spare Parts Designation H490 SM D032-28-3-16-09 SR 10508082-HG BLD T08/M7 SW4-SD SR M8X30DIN912 H490 SM D040-35-4-16-09 SR 10508082-HG BLD T08/M7 SW4-SD SR M8X30DIN912 H490 SM D050-42-5-22-09 SR 10508082-HG BLD T08/M7 SW4-SD SR M10X40DIN912 T490 SM-08 Extended Flute Shell Mills D Da D3 Carrying T490 LNMT/HT 0804... Tangentially Clamped Inserts ap L Designation D a p Flute Z L D 3 Da Arbor (1) kg T490 SM D032-36-3-16-08 32.00 36.00 3 15 58.00 38.00 16.00 A 0.228 SR 10502813-HG-M IP-7/51 SR M8X45DIN912 T490 SM D040-44-4-16-08 40.00 44.00 4 24 65.00 38.00 16.00 A 0.387 SR 10502813-HG-M IP-7/51 SR M8X55DIN912 T490 SM D050-44-5-22-08 50.00 44.00 5 30 65.00 47.00 22.00 A 0.612 SR 10502813-HG-M IP-7/51 SR M10X50DIN 912 • ae max for regular inserts, up to 0.25xD, ae max for -CS (chip splitting) inserts, up to 0.30xD (1) For adaptation options, see page 461 For inserts, see pages: T490 LNAR (410) • T490 LNMT/LNHT 0804 (408) 213
