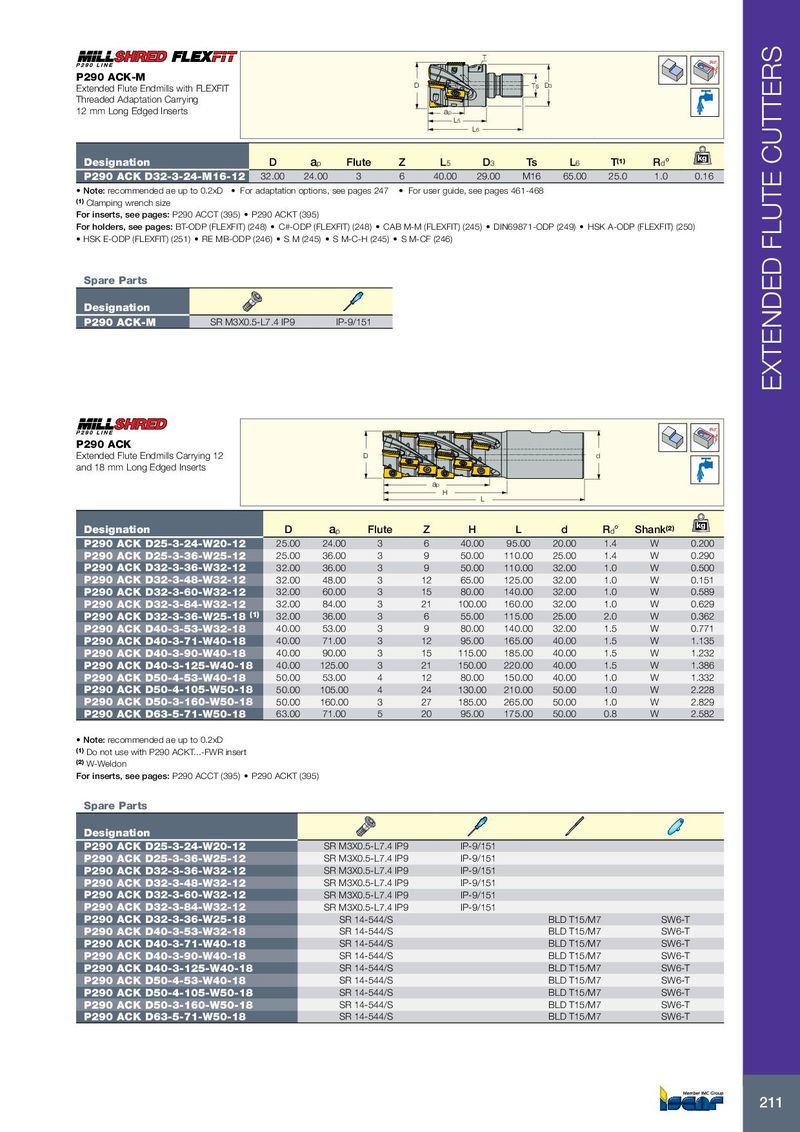

Каталог Iscar вращающийся инструмент 2017 - страница 215
Навигация
Каталог Iscar токарные пластины ISO 2022
Каталог Iscar инструмент для фрезерования
Каталог Iscar решения для глубокого сверления
Каталог Iscar полирующие фрезы
Новые режущие инструменты Iscar 2026
Каталог Iscar новые продукты 2018
P290 ACK-M
Extended Flute Endmills with FLEXFIT D Ts D3
Threaded Adaptation Carrying 12 mm Long Edged Inserts a p L5
L6
| Designation | D | a | Flute | Z | L | D | Ts | L | T | R ° | kg | ||||
| p | 5 | 3 | 6 | (1) | d | ||||||||||
| P290 ACK D32-3-24-M16-12 | 32.00 | 24.00 | 3 | 6 | 40.00 | 29.00 | M16 | 65.00 | 25.0 | 1.0 | 0.16 |
- Note: recommended ae up to 0.2xD
- For adaptation options, see pages 247
- For user guide, see pages 461-468
(1) Clamping wrench size For inserts, see pages: P290 ACCT (395) P290 ACKT (395) For holders, see pages: BT-ODP (FLEXFIT) (248) C#-ODP (FLEXFIT) (248) CAB M-M (FLEXFIT) (245) DIN69871-ODP (249) HSK A-ODP (FLEXFIT) (250)
- HSK E-ODP (FLEXFIT) (251)
- RE MB-ODP (246)
- S M (245)
- S M-C-H (245)
- S M-CF (246)
| Spare Parts | |
| Designation | |
| P290 ACK-M | SR M3X0.5-L7.4 IP9 IP-9/151 |
Rd°
P290 ACK
| Extended Flute Endmills Carrying 12 | D | d | ||
| and 18 mm Long Edged Inserts | ||||
| ap | ||||
| H | ||||
| L |
| Designation | D | a Flute | Z | H | L | d | R ° | Shank | kg | |
| p | d | (2) | ||||||||
| P290 ACK D25-3-24-W20-12 | 25.00 | 24.00 | 3 | 6 | 40.00 | 95.00 | 20.00 | 1.4 | W | 0.200 |
| P290 ACK D25-3-36-W25-12 | 25.00 | 36.00 | 3 | 9 | 50.00 | 110.00 | 25.00 | 1.4 | W | 0.290 |
| P290 ACK D32-3-36-W32-12 | 32.00 | 36.00 | 3 | 9 | 50.00 | 110.00 | 32.00 | 1.0 | W | 0.500 |
| P290 ACK D32-3-48-W32-12 | 32.00 | 48.00 | 3 | 12 | 65.00 | 125.00 | 32.00 | 1.0 | W | 0.151 |
| P290 ACK D32-3-60-W32-12 | 32.00 | 60.00 | 3 | 15 | 80.00 | 140.00 | 32.00 | 1.0 | W | 0.589 |
| P290 ACK D32-3-84-W32-12 | 32.00 | 84.00 | 3 | 21 | 100.00 | 160.00 | 32.00 | 1.0 | W | 0.629 |
| P290 ACK D32-3-36-W25-18 (1) | 32.00 | 36.00 | 3 | 6 | 55.00 | 115.00 | 25.00 | 2.0 | W | 0.362 |
| P290 ACK D40-3-53-W32-18 | 40.00 | 53.00 | 3 | 9 | 80.00 | 140.00 | 32.00 | 1.5 | W | 0.771 |
| P290 ACK D40-3-71-W40-18 | 40.00 | 71.00 | 3 | 12 | 95.00 | 165.00 | 40.00 | 1.5 | W | 1.135 |
| P290 ACK D40-3-90-W40-18 | 40.00 | 90.00 | 3 | 15 | 115.00 | 185.00 | 40.00 | 1.5 | W | 1.232 |
| P290 ACK D40-3-125-W40-18 | 40.00 | 125.00 | 3 | 21 | 150.00 | 220.00 | 40.00 | 1.5 | W | 1.386 |
| P290 ACK D50-4-53-W40-18 | 50.00 | 53.00 | 4 | 12 | 80.00 | 150.00 | 40.00 | 1.0 | W | 1.332 |
| P290 ACK D50-4-105-W50-18 | 50.00 | 105.00 | 4 | 24 | 130.00 | 210.00 | 50.00 | 1.0 | W | 2.228 |
| P290 ACK D50-3-160-W50-18 | 50.00 | 160.00 | 3 | 27 | 185.00 | 265.00 | 50.00 | 1.0 | W | 2.829 |
| P290 ACK D63-5-71-W50-18 | 63.00 | 71.00 | 5 | 20 | 95.00 | 175.00 | 50.00 | 0.8 | W | 2.582 |
- Note: recommended ae up to 0.2xD
(1) Do not use with P290 ACKT...-FWR insert (2) W-Weldon For inserts, see pages: P290 ACCT (395) P290 ACKT (395)
| Spare Parts | ||||
| Designation | ||||
| P290 ACK D25-3-24-W20-12 | SR M3X0.5-L7.4 IP9 | IP-9/151 | ||
| P290 ACK D25-3-36-W25-12 | SR M3X0.5-L7.4 IP9 | IP-9/151 | ||
| P290 ACK D32-3-36-W32-12 | SR M3X0.5-L7.4 IP9 | IP-9/151 | ||
| P290 ACK D32-3-48-W32-12 | SR M3X0.5-L7.4 IP9 | IP-9/151 | ||
| P290 ACK D32-3-60-W32-12 | SR M3X0.5-L7.4 IP9 | IP-9/151 | ||
| P290 ACK D32-3-84-W32-12 | SR M3X0.5-L7.4 IP9 | IP-9/151 | ||
| P290 ACK D32-3-36-W25-18 | SR 14-544/S | BLD T15/M7 | SW6-T | |
| P290 ACK D40-3-53-W32-18 | SR 14-544/S | BLD T15/M7 | SW6-T | |
| P290 ACK D40-3-71-W40-18 | SR 14-544/S | BLD T15/M7 | SW6-T | |
| P290 ACK D40-3-90-W40-18 | SR 14-544/S | BLD T15/M7 | SW6-T | |
| P290 ACK D40-3-125-W40-18 | SR 14-544/S | BLD T15/M7 | SW6-T | |
| P290 ACK D50-4-53-W40-18 | SR 14-544/S | BLD T15/M7 | SW6-T | |
| P290 ACK D50-4-105-W50-18 | SR 14-544/S | BLD T15/M7 | SW6-T | |
| P290 ACK D50-3-160-W50-18 | SR 14-544/S | BLD T15/M7 | SW6-T | |
| P290 ACK D63-5-71-W50-18 | SR 14-544/S | BLD T15/M7 | SW6-T |
