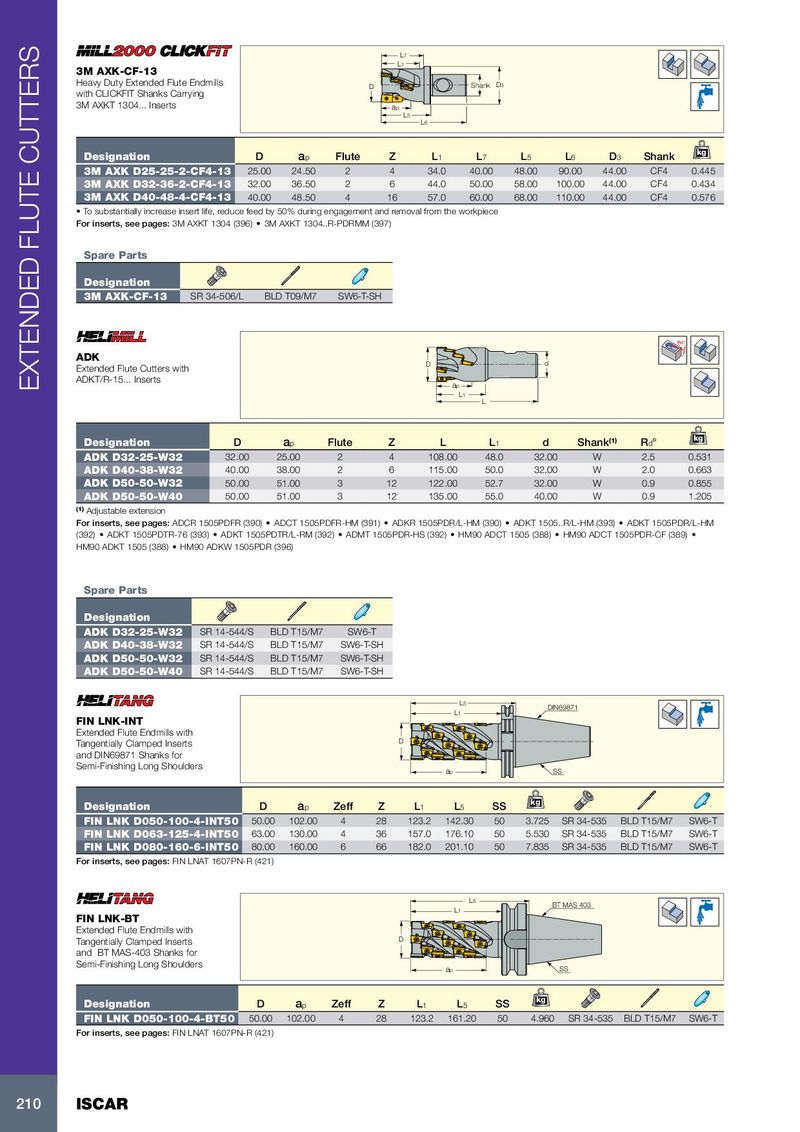

| 3M AXK-CF-13 | L7 L1 | |||||||||
| Heavy Duty Extended Flute Endmills with CLICKFIT Shanks Carrying 3M AXKT 1304... Inserts | L5 L D ap | 6 | D3 Shank | |||||||
| Designation | D | ap | Flute Z | L1 | L7 | L5 | L6 | D3 | Shank | kg |
| 3M AXK D25-25-2-CF4-13 | 25.00 | 24.50 | 2 4 | 34.0 | 40.00 | 48.00 | 90.00 | 44.00 | CF4 | 0.445 |
| 3M AXK D32-36-2-CF4-13 | 32.00 | 36.50 | 2 6 | 44.0 | 50.00 | 58.00 | 100.00 | 44.00 | CF4 | 0.434 |
| 3M AXK D40-48-4-CF4-13 | 40.00 | 48.50 | 4 16 | 57.0 | 60.00 | 68.00 | 110.00 | 44.00 | CF4 | 0.576 |
- To substantially increase insert life, reduce feed by 50% during engagement and removal from the workpiece
For inserts, see pages: 3M AXKT 1304 (396) 3M AXKT 1304..R-PDRMM (397)
Spare Parts
Designation
3M AXK-CF-13 SR 34-506/L BLD T09/M7 SW6-T-SH
| ADK Extended Flute Cutters with ADKT/R-15... Inserts | ap L1 D | L | d | Rd° | ||||||
| Designation | D | ap | Flute | Z | L | L1 | d | Shank(1) | Rd° | kg |
| ADK D32-25-W32 | 32.00 | 25.00 | 2 | 4 | 108.00 | 48.0 | 32.00 | W | 2.5 | 0.531 |
| ADK D40-38-W32 | 40.00 | 38.00 | 2 | 6 | 115.00 | 50.0 | 32.00 | W | 2.0 | 0.663 |
| ADK D50-50-W32 | 50.00 | 51.00 | 3 | 12 | 122.00 | 52.7 | 32.00 | W | 0.9 | 0.855 |
| ADK D50-50-W40 | 50.00 | 51.00 | 3 | 12 | 135.00 | 55.0 | 40.00 | W | 0.9 | 1.205 |
(1) Adjustable extension For inserts, see pages: ADCR 1505PDFR (390) ADCT 1505PDFR-HM (391) ADKR 1505PDR/L-HM (390) ADKT 1505..R/L-HM (393) ADKT 1505PDR/L-HM (392) ADKT 1505PDTR-76 (393) ADKT 1505PDTR/L-RM (392) ADMT 1505PDR-HS (392) HM90 ADCT 1505 (388) HM90 ADCT 1505PDR-CF (389) HM90 ADKT 1505 (388) HM90 ADKW 1505PDR (396)
Spare Parts
Designation
| ADK D32-25-W32 | SR 14-544/S | BLD T15/M7 | SW6-T |
| ADK D40-38-W32 | SR 14-544/S | BLD T15/M7 | SW6-T-SH |
| ADK D50-50-W32 | SR 14-544/S | BLD T15/M7 | SW6-T-SH |
| ADK D50-50-W40 | SR 14-544/S | BLD T15/M7 | SW6-T-SH |
L5 DIN69871 L1
FIN LNK-INT
Extended Flute Endmills with Tangentially Clamped Inserts D and DIN69871 Shanks for Semi-Finishing Long Shoulders ap SS
| Designation | D | a | Zeff | Z | L | L | SS | kg | ||||||
| p | 1 | 5 | ||||||||||||
| FIN LNK D050-100-4-INT50 | 50.00 | 102.00 | 4 | 28 | 123.2 | 142.30 | 50 | 3.725 | SR 34-535 | BLD T15/M7 | SW6-T | |||
| FIN LNK D063-125-4-INT50 | 63.00 | 130.00 | 4 | 36 | 157.0 | 176.10 | 50 | 5.530 | SR 34-535 | BLD T15/M7 | SW6-T | |||
| FIN LNK D080-160-6-INT50 | 80.00 | 160.00 | 6 | 66 | 182.0 | 201.10 | 50 | 7.835 | SR 34-535 | BLD T15/M7 | SW6-T |
For inserts, see pages: FIN LNAT 1607PN-R (421)
L5 BT MAS 403 L1
FIN LNK-BT
Extended Flute Endmills with Tangentially Clamped Inserts D and BT MAS-403 Shanks for Semi-Finishing Long Shoulders ap SS
| Designation | D | a | Zeff | Z | L | L | SS | kg | |||||
| p | 1 | 5 | |||||||||||
| FIN LNK D050-100-4-BT50 | 50.00 | 102.00 | 4 | 28 | 123.2 | 161.20 | 50 | 4.960 | SR 34-535 BLD T15/M7 | SW6-T |
For inserts, see pages: FIN LNAT 1607PN-R (421)
