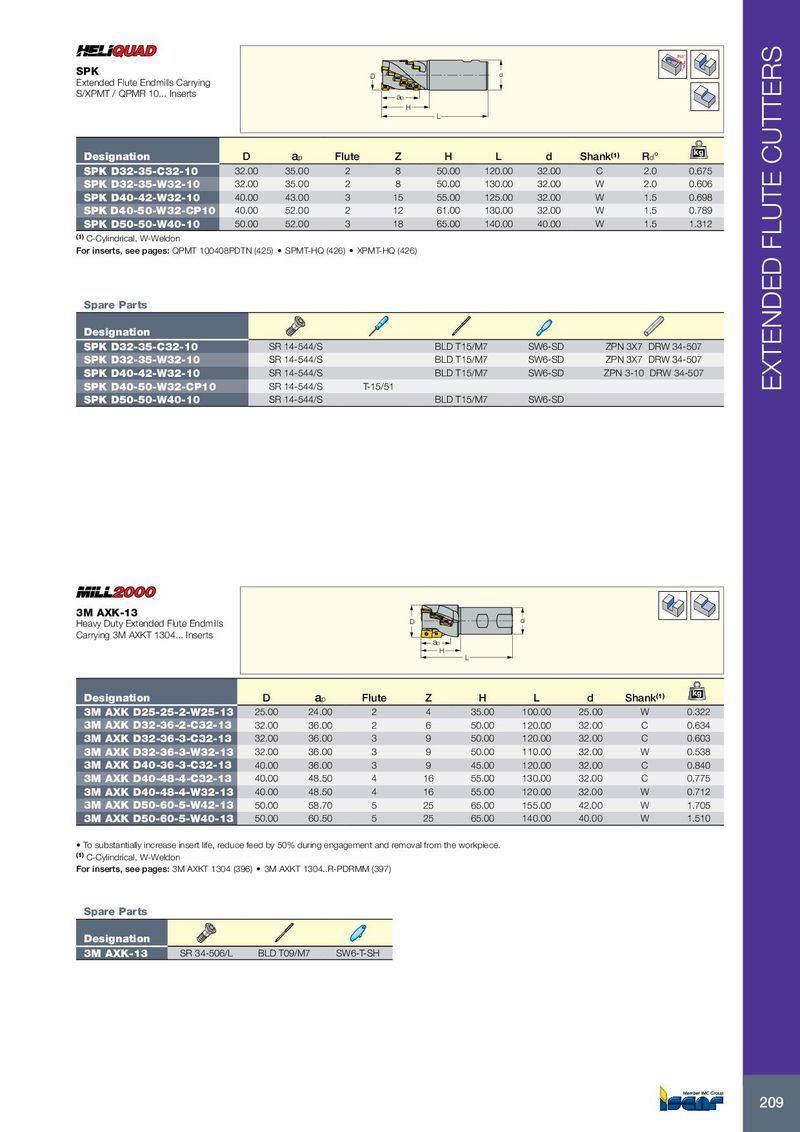

| PK xtended Flute Endmills Carrying XPMT / QPMR 10... Inserts | D H ap | d | Rd° | |||||||
| L | ||||||||||
| Designation | D | ap | Flute | Z | H | L | d | Shank(1) | Rd° | kg |
| SPK D32-35-C32-10 | 32.00 | 35.00 | 2 | 8 | 50.00 | 120.00 | 32.00 | C | 2.0 | 0.675 |
| SPK D32-35-W32-10 | 32.00 | 35.00 | 2 | 8 | 50.00 | 130.00 | 32.00 | W | 2.0 | 0.606 |
| SPK D40-42-W32-10 | 40.00 | 43.00 | 3 | 15 | 55.00 | 125.00 | 32.00 | W | 1.5 | 0.698 |
| SPK D40-50-W32-CP10 | 40.00 | 52.00 | 2 | 12 | 61.00 | 130.00 | 32.00 | W | 1.5 | 0.789 |
| SPK D50-50-W40-10 | 50.00 | 52.00 | 3 | 18 | 65.00 | 140.00 | 40.00 | W | 1.5 | 1.312 |
(1) C-Cylindrical, W-Weldon For inserts, see pages: QPMT 100408PDTN (425) SPMT-HQ (426) XPMT-HQ (426)
| Spare Parts | |||||
| Designation | |||||
| SPK D32-35-C32-10 | SR 14-544/S | BLD T15/M7 | SW6-SD | ZPN 3X7 DRW 34-507 | |
| SPK D32-35-W32-10 | SR 14-544/S | BLD T15/M7 | SW6-SD | ZPN 3X7 DRW 34-507 | |
| SPK D40-42-W32-10 | SR 14-544/S | BLD T15/M7 | SW6-SD | ZPN 3-10 DRW 34-507 | |
| SPK D40-50-W32-CP10 | SR 14-544/S | T-15/51 | |||
| SPK D50-50-W40-10 | SR 14-544/S | BLD T15/M7 | SW6-SD |
| 3M AXK-13 Heavy Duty Extended Flute Endmills Carrying 3M AXKT 1304... Inserts | H ap D | L | d | ||||||
| Designation | D | ap | Flute | Z | H | L | d | Shank(1) | kg |
| 3M AXK D25-25-2-W25-13 | 25.00 | 24.00 | 2 | 4 | 35.00 | 100.00 | 25.00 | W | 0.322 |
| 3M AXK D32-36-2-C32-13 | 32.00 | 36.00 | 2 | 6 | 50.00 | 120.00 | 32.00 | C | 0.634 |
| 3M AXK D32-36-3-C32-13 | 32.00 | 36.00 | 3 | 9 | 50.00 | 120.00 | 32.00 | C | 0.603 |
| 3M AXK D32-36-3-W32-13 | 32.00 | 36.00 | 3 | 9 | 50.00 | 110.00 | 32.00 | W | 0.538 |
| 3M AXK D40-36-3-C32-13 | 40.00 | 36.00 | 3 | 9 | 45.00 | 120.00 | 32.00 | C | 0.840 |
| 3M AXK D40-48-4-C32-13 | 40.00 | 48.50 | 4 | 16 | 55.00 | 130.00 | 32.00 | C | 0.775 |
| 3M AXK D40-48-4-W32-13 | 40.00 | 48.50 | 4 | 16 | 55.00 | 120.00 | 32.00 | W | 0.712 |
| 3M AXK D50-60-5-W42-13 | 50.00 | 58.70 | 5 | 25 | 65.00 | 155.00 | 42.00 | W | 1.705 |
| 3M AXK D50-60-5-W40-13 | 50.00 | 60.50 | 5 | 25 | 65.00 | 140.00 | 40.00 | W | 1.510 |
- To substantially increase insert life, reduce feed by 50% during engagement and removal from the workpiece.
(1) C-Cylindrical, W-Weldon For inserts, see pages: 3M AXKT 1304 (396) 3M AXKT 1304..R-PDRMM (397)
Spare Parts
Designation
3M AXK-13 SR 34-506/L BLD T09/M7 SW6-T-SH
