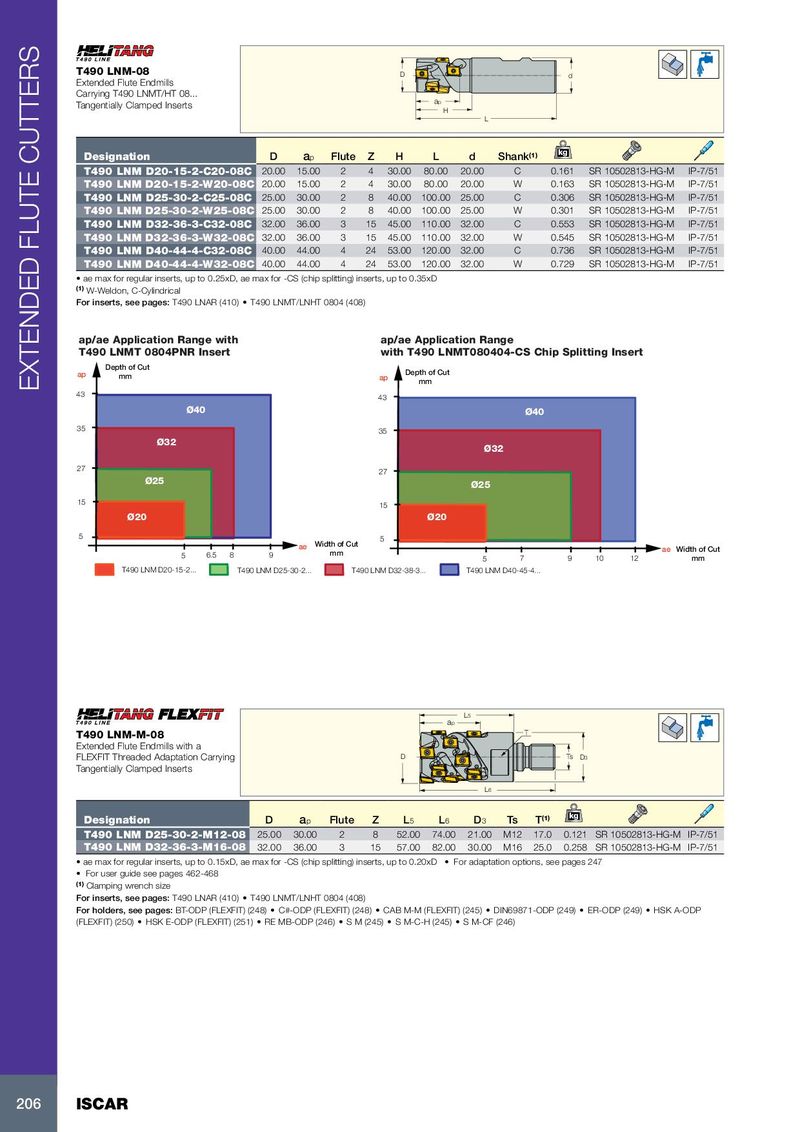

T490 LNM-08
| xtended Flute Endmills arrying T490 LNMT/HT 08... ngentially Clamped Inserts | D | ap H | L | d | ||||||
| Designation | D | ap | Flute | Z H | L | d | Shank(1) | kg | ||
| T490 LNM D20-15-2-C20-08C | 20.00 | 15.00 | 2 | 4 30.00 | 80.00 | 20.00 | C | 0.161 | SR 10502813-HG-M | IP-7/51 |
| T490 LNM D20-15-2-W20-08C | 20.00 | 15.00 | 2 | 4 30.00 | 80.00 | 20.00 | W | 0.163 | SR 10502813-HG-M | IP-7/51 |
| T490 LNM D25-30-2-C25-08C | 25.00 | 30.00 | 2 | 8 40.00 | 100.00 | 25.00 | C | 0.306 | SR 10502813-HG-M | IP-7/51 |
| T490 LNM D25-30-2-W25-08C | 25.00 | 30.00 | 2 | 8 40.00 | 100.00 | 25.00 | W | 0.301 | SR 10502813-HG-M | IP-7/51 |
| T490 LNM D32-36-3-C32-08C | 32.00 | 36.00 | 3 | 15 45.00 | 110.00 | 32.00 | C | 0.553 | SR 10502813-HG-M | IP-7/51 |
| T490 LNM D32-36-3-W32-08C | 32.00 | 36.00 | 3 | 15 45.00 | 110.00 | 32.00 | W | 0.545 | SR 10502813-HG-M | IP-7/51 |
| T490 LNM D40-44-4-C32-08C | 40.00 | 44.00 | 4 | 24 53.00 | 120.00 | 32.00 | C | 0.736 | SR 10502813-HG-M | IP-7/51 |
| T490 LNM D40-44-4-W32-08C | 40.00 | 44.00 | 4 | 24 53.00 | 120.00 | 32.00 | W | 0.729 | SR 10502813-HG-M | IP-7/51 |
- ae max for regular inserts, up to 0.25xD, ae max for -CS (chip splitting) inserts, up to 0.35xD
(1) W-Weldon, C-Cylindrical For inserts, see pages: T490 LNAR (410) T490 LNMT/LNHT 0804 (408)
ap/ae Application Range with ap/ae Application Range
T490 LNMT 0804PNR Insert with T490 LNMT080404-CS Chip Splitting Insert
Depth of Cut
ap mm Depth of Cut
ap mm 43 43 Ø40 Ø40
T490 LNM D20-15-2... 35 35 Ø32 Ø32 T490 LNM D25-30-2... 27 27 T490 LNM D32-38-3... Ø25 Ø25 15 T490 LNM D40-45-4... 15 Ø20 Ø20 5 5 ae Width of Cut
mm ae Width of Cut
5 6.5 8 9 5 7 9 10 12 mm
T490 LNM D20-15-2... T490 LNM D25-30-2... T490 LNM D32-38-3... T490 LNM D40-45-4...
L5 ap T490 LNM-M-08 T Extended Flute Endmills with a
| FLEXFIT Threaded Adaptation Carrying | D | Ts | D 3 | |
| Tangentially Clamped Inserts | ||||
| L6 |
| Designation | D | a | Flute | Z | L | L | D | Ts | T(1) | kg | ||||
| p | 5 | 6 | 3 | |||||||||||
| T490 LNM D25-30-2-M12-08 | 25.00 | 30.00 | 2 | 8 | 52.00 | 74.00 | 21.00 | M12 | 17.0 | 0.121 SR 10502813-HG-M IP-7/51 | ||||
| T490 LNM D32-36-3-M16-08 | 32.00 | 36.00 | 3 | 15 | 57.00 | 82.00 | 30.00 | M16 | 25.0 | 0.258 SR 10502813-HG-M IP-7/51 |
- ae max for regular inserts, up to 0.15xD, ae max for -CS (chip splitting) inserts, up to 0.20xD
- For adaptation options, see pages 247
- For user guide see pages 462-468
(1) Clamping wrench size For inserts, see pages: T490 LNAR (410) T490 LNMT/LNHT 0804 (408) For holders, see pages: BT-ODP (FLEXFIT) (248) C#-ODP (FLEXFIT) (248) CAB M-M (FLEXFIT) (245) DIN69871-ODP (249) ER-ODP (249) HSK A-ODP (FLEXFIT) (250) HSK E-ODP (FLEXFIT) (251) RE MB-ODP (246) S M (245) S M-C-H (245) S M-CF (246)
