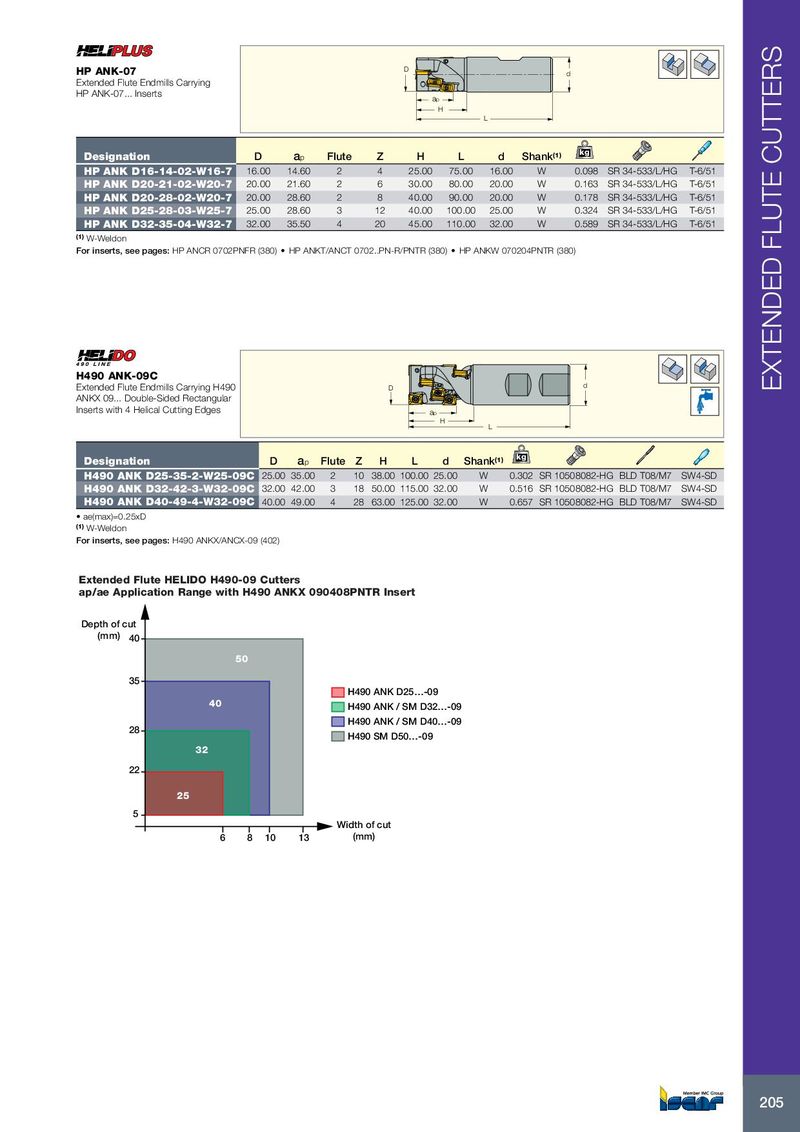

| HP ANK-07 Extended Flute Endmills Carrying HP ANK-07... Inserts | ap H D | L | d | ||||||||
| Designation | D | ap | Flute | Z | H | L | d | Shank(1) | kg | ||
| HP ANK D16-14-02-W16-7 | 16.00 | 14.60 | 2 | 4 | 25.00 | 75.00 | 16.00 | W | 0.098 | SR 34-533/L/HG | T-6/51 |
| HP ANK D20-21-02-W20-7 | 20.00 | 21.60 | 2 | 6 | 30.00 | 80.00 | 20.00 | W | 0.163 | SR 34-533/L/HG | T-6/51 |
| HP ANK D20-28-02-W20-7 | 20.00 | 28.60 | 2 | 8 | 40.00 | 90.00 | 20.00 | W | 0.178 | SR 34-533/L/HG | T-6/51 |
| HP ANK D25-28-03-W25-7 | 25.00 | 28.60 | 3 | 12 | 40.00 | 100.00 | 25.00 | W | 0.324 | SR 34-533/L/HG | T-6/51 |
| HP ANK D32-35-04-W32-7 | 32.00 | 35.50 | 4 | 20 | 45.00 | 110.00 | 32.00 | W | 0.589 | SR 34-533/L/HG | T-6/51 |
(1) W-Weldon For inserts, see pages: HP ANCR 0702PNFR (380) HP ANKT/ANCT 0702..PN-R/PNTR (380) HP ANKW 070204PNTR (380)
H490 ANK-09C
Extended Flute Endmills Carrying H490 D d
ANKX 09... Double-Sided Rectangular Inserts with 4 Helical Cutting Edges a p H
L
| Designation | D | a | Flute Z | H | L | d | Shank(1) | kg | ||
| p | ||||||||||
| H490 ANK D25-35-2-W25-09C | 25.00 35.00 | 2 | 10 38.00 100.00 25.00 | W | 0.302 SR 10508082-HG BLD T08/M7 SW4-SD | |||||
| H490 ANK D32-42-3-W32-09C | 32.00 42.00 | 3 | 18 50.00 115.00 32.00 | W | 0.516 SR 10508082-HG BLD T08/M7 SW4-SD | |||||
| H490 ANK D40-49-4-W32-09C | 40.00 49.00 | 4 | 28 63.00 125.00 32.00 | W | 0.657 SR 10508082-HG BLD T08/M7 SW4-SD |
- ae(max)=0.25xD
(1) W-Weldon For inserts, see pages: H490 ANKX/ANCX-09 (402)
Extended Flute HELIDO H490-09 Cutters
ap/ae Application Range with H490 ANKX 090408PNTR Insert
Depth of cut (mm) 40 50 35 H490 ANK D25…-09 40 H490 ANK / SM D32…-09 H490 ANK / SM D40…-09 28 H490 SM D50…-09 32 22 25 5 Width of cut
6 8 10 13 (mm)
