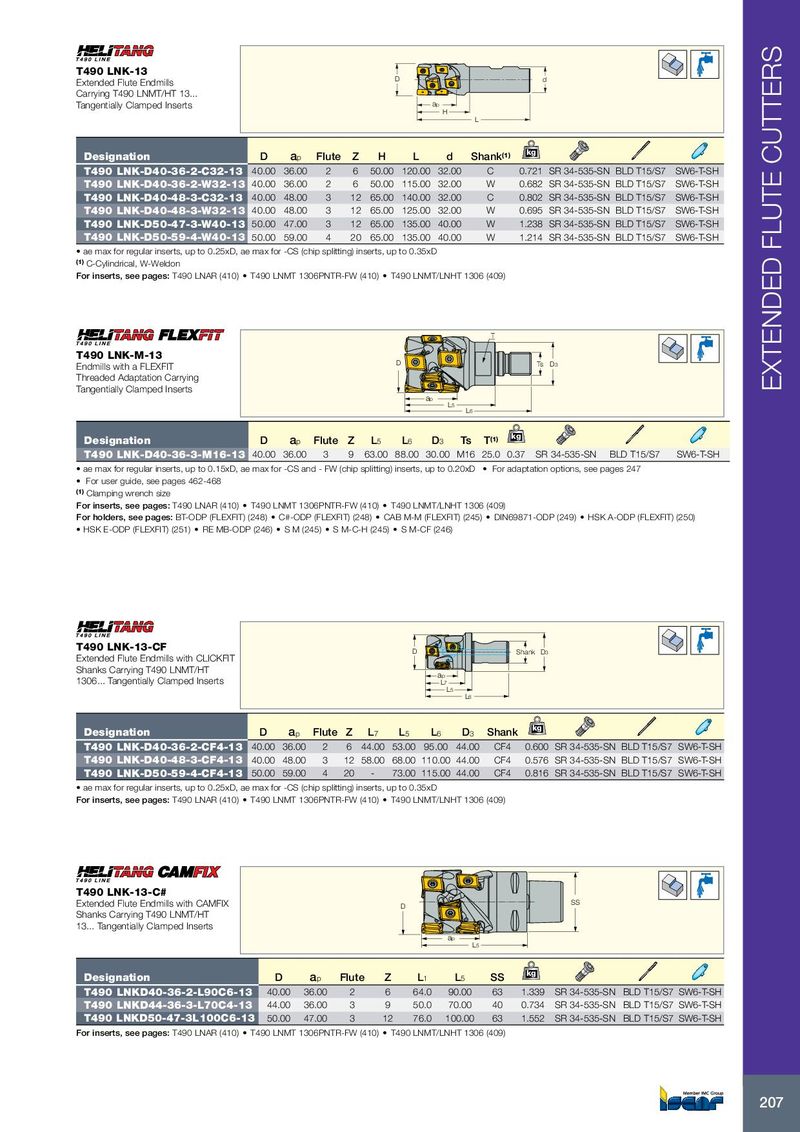

Каталог Iscar вращающийся инструмент 2017 - страница 211
Навигация
Каталог Iscar токарные пластины ISO 2022
Каталог Iscar инструмент для фрезерования
Каталог Iscar решения для глубокого сверления
Каталог Iscar полирующие фрезы
Новые режущие инструменты Iscar 2026
Каталог Iscar новые продукты 2018
| T490 LNK-13 Extended Flute Endmills Carrying T490 LNMT/HT 13... Tangentially Clamped Inserts | D | H ap | L | d | ||||||
| Designation | D | ap | Flute | Z H | L | d | Shank(1) | kg | ||
| T490 LNK-D40-36-2-C32-13 | 40.00 | 36.00 | 2 | 6 50.00 | 120.00 | 32.00 | C | 0.721 | SR 34-535-SN BLD T15/S7 | SW6-T-SH |
| T490 LNK-D40-36-2-W32-13 | 40.00 | 36.00 | 2 | 6 50.00 | 115.00 | 32.00 | W | 0.682 | SR 34-535-SN BLD T15/S7 | SW6-T-SH |
| T490 LNK-D40-48-3-C32-13 | 40.00 | 48.00 | 3 | 12 65.00 | 140.00 | 32.00 | C | 0.802 | SR 34-535-SN BLD T15/S7 | SW6-T-SH |
| T490 LNK-D40-48-3-W32-13 | 40.00 | 48.00 | 3 | 12 65.00 | 125.00 | 32.00 | W | 0.695 | SR 34-535-SN BLD T15/S7 | SW6-T-SH |
| T490 LNK-D50-47-3-W40-13 | 50.00 | 47.00 | 3 | 12 65.00 | 135.00 | 40.00 | W | 1.238 | SR 34-535-SN BLD T15/S7 | SW6-T-SH |
| T490 LNK-D50-59-4-W40-13 | 50.00 | 59.00 | 4 | 20 65.00 | 135.00 | 40.00 | W | 1.214 | SR 34-535-SN BLD T15/S7 | SW6-T-SH |
- ae max for regular inserts, up to 0.25xD, ae max for -CS (chip splitting) inserts, up to 0.35xD
(1) C-Cylindrical, W-Weldon For inserts, see pages: T490 LNAR (410) T490 LNMT 1306PNTR-FW (410) T490 LNMT/LNHT 1306 (409)
| T490 LNK-M-13 Endmills with a FLEXFIT Threaded Adaptation Carrying Tangentially Clamped Inserts | D ap L5 L6 T | D3 Ts | |||||
| Designation | D | ap | Flute | Z L5 L6 D3 Ts T(1) kg | |||
| T490 LNK-D40-36-3-M16-1 | 3 40.00 | 36.00 | 3 | 9 63.00 88.00 30.00 M16 25.0 0.37 | SR 34-535-SN | BLD T15/S7 SW | 6-T-SH |
- ae max for regular inserts, up to 0.15xD, ae max for -CS and - FW (chip splitting) inserts, up to 0.20xD
- For adaptation options, see pages 247
- For user guide, see pages 462-468
(1) Clamping wrench size For inserts, see pages: T490 LNAR (410) T490 LNMT 1306PNTR-FW (410) T490 LNMT/LNHT 1306 (409) For holders, see pages: BT-ODP (FLEXFIT) (248) C#-ODP (FLEXFIT) (248) CAB M-M (FLEXFIT) (245) DIN69871-ODP (249) HSK A-ODP (FLEXFIT) (250)
- HSK E-ODP (FLEXFIT) (251)
- RE MB-ODP (246)
- S M (245)
- S M-C-H (245)
- S M-CF (246)
| T490 LNK-13-CF | D | S | D3 hank | |||||||||
| Extended Flute Endmills with CLICKFIT Shanks Carrying T490 LNMT/HT 1306... Tangentially Clamped Inserts | ap L7 L5 | L6 | ||||||||||
| Designation | D | ap | Flute | Z L7 | L5 | L6 | D3 | Shank | kg | |||
| T490 LNK-D40-36-2-CF4-13 | 40.00 | 36.00 | 2 | 6 44.00 | 53.00 | 95.00 | 44.00 | CF4 | 0.600 | SR 34-535-SN | BLD T15/S7 | SW6-T-SH |
| T490 LNK-D40-48-3-CF4-13 | 40.00 | 48.00 | 3 | 12 58.00 | 68.00 | 110.00 | 44.00 | CF4 | 0.576 | SR 34-535-SN | BLD T15/S7 | SW6-T-SH |
| T490 LNK-D50-59-4-CF4-13 | 50.00 | 59.00 | 4 | 20 - | 73.00 | 115.00 | 44.00 | CF4 | 0.816 | SR 34-535-SN | BLD T15/S7 | SW6-T-SH |
- ae max for regular inserts, up to 0.25xD, ae max for -CS (chip splitting) inserts, up to 0.35xD
For inserts, see pages: T490 LNAR (410) T490 LNMT 1306PNTR-FW (410) T490 LNMT/LNHT 1306 (409)
| T490 LNK-13-C# Extended Flute Endmills with CAMFIX Shanks Carrying T490 LNMT/HT 13... Tangentially Clamped Inserts | D | ap L5 | SS | ||||||
| Designation | D | ap | Flute | Z L1 | L5 | SS | kg | ||
| T490 LNKD40-36-2-L90C6-13 | 40.00 | 36.00 | 2 | 6 64.0 | 90.00 | 63 | 1.339 | SR 34-535-SN | BLD T15/S7 SW6-T-SH |
| T490 LNKD44-36-3-L70C4-13 | 44.00 | 36.00 | 3 | 9 50.0 | 70.00 | 40 | 0.734 | SR 34-535-SN | BLD T15/S7 SW6-T-SH |
| T490 LNKD50-47-3L100C6-13 | 50.00 | 47.00 | 3 | 12 76.0 | 100.00 | 63 | 1.552 | SR 34-535-SN | BLD T15/S7 SW6-T-SH |
For inserts, see pages: T490 LNAR (410) T490 LNMT 1306PNTR-FW (410) T490 LNMT/LNHT 1306 (409)
