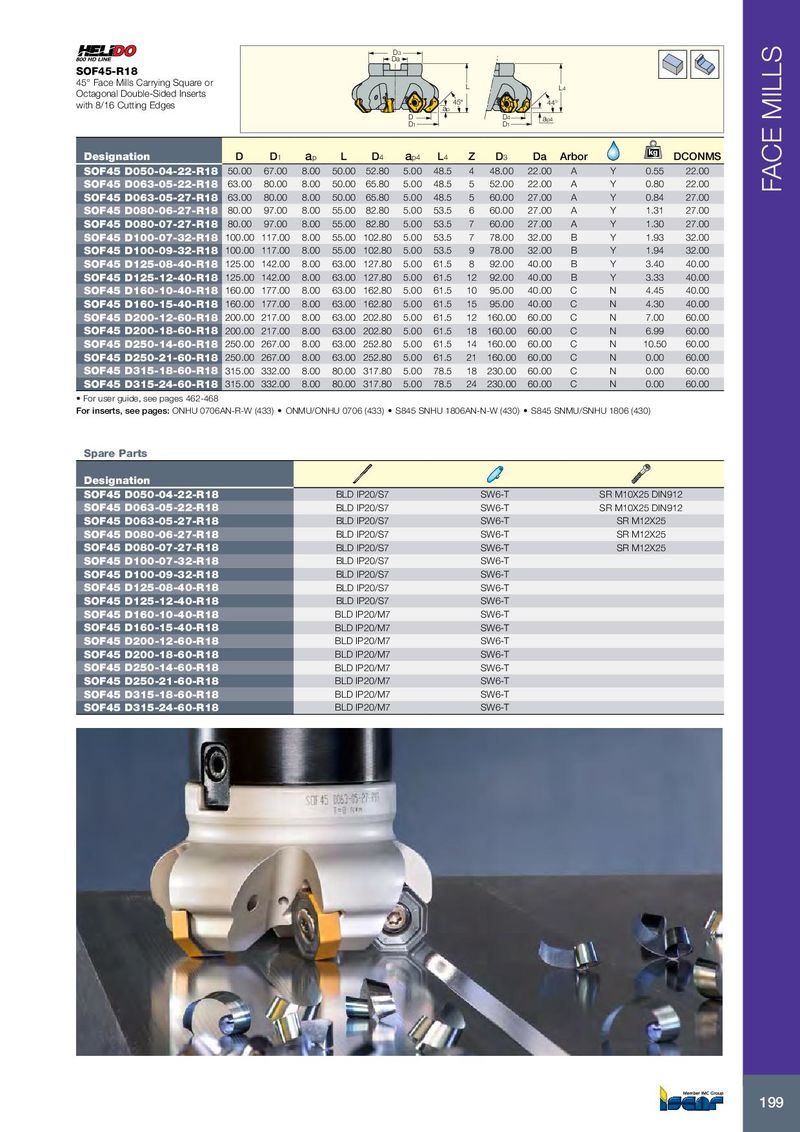

Каталог Iscar вращающийся инструмент 2017 - страница 203
Навигация
Каталог Iscar токарные пластины ISO 2022
Каталог Iscar инструмент для фрезерования
Каталог Iscar решения для глубокого сверления
Каталог Iscar полирующие фрезы
Новые режущие инструменты Iscar 2026
Каталог Iscar новые продукты 2018
| D D | a 3 | |||||||||||||
| OF45-R18 5° Face Mills Carrying Square or ctagonal Double-Sided Inserts ith 8/16 Cutting Edges | D D1 | 45° ap | L | D4 D1 | 44° ap4 | L4 | ||||||||
| Designation | D | D1 | ap | L | D4 | ap4 | L4 | Z | D3 | Da | Arbor | kg | DCONMS | |
| SOF45 D050-04-22-R18 | 50.00 | 67.00 | 8.00 | 50.00 | 52.80 | 5.00 | 48.5 | 4 | 48.00 | 22.00 | A | Y | 0.55 | 22.00 |
| SOF45 D063-05-22-R18 | 63.00 | 80.00 | 8.00 | 50.00 | 65.80 | 5.00 | 48.5 | 5 | 52.00 | 22.00 | A | Y | 0.80 | 22.00 |
| SOF45 D063-05-27-R18 | 63.00 | 80.00 | 8.00 | 50.00 | 65.80 | 5.00 | 48.5 | 5 | 60.00 | 27.00 | A | Y | 0.84 | 27.00 |
| SOF45 D080-06-27-R18 | 80.00 | 97.00 | 8.00 | 55.00 | 82.80 | 5.00 | 53.5 | 6 | 60.00 | 27.00 | A | Y | 1.31 | 27.00 |
| SOF45 D080-07-27-R18 | 80.00 | 97.00 | 8.00 | 55.00 | 82.80 | 5.00 | 53.5 | 7 | 60.00 | 27.00 | A | Y | 1.30 | 27.00 |
| SOF45 D100-07-32-R18 | 100.00 | 117.00 | 8.00 | 55.00 | 102.80 | 5.00 | 53.5 | 7 | 78.00 | 32.00 | B | Y | 1.93 | 32.00 |
| SOF45 D100-09-32-R18 | 100.00 | 117.00 | 8.00 | 55.00 | 102.80 | 5.00 | 53.5 | 9 | 78.00 | 32.00 | B | Y | 1.94 | 32.00 |
| SOF45 D125-08-40-R18 | 125.00 | 142.00 | 8.00 | 63.00 | 127.80 | 5.00 | 61.5 | 8 | 92.00 | 40.00 | B | Y | 3.40 | 40.00 |
| SOF45 D125-12-40-R18 | 125.00 | 142.00 | 8.00 | 63.00 | 127.80 | 5.00 | 61.5 | 12 | 92.00 | 40.00 | B | Y | 3.33 | 40.00 |
| SOF45 D160-10-40-R18 | 160.00 | 177.00 | 8.00 | 63.00 | 162.80 | 5.00 | 61.5 | 10 | 95.00 | 40.00 | C | N | 4.45 | 40.00 |
| SOF45 D160-15-40-R18 | 160.00 | 177.00 | 8.00 | 63.00 | 162.80 | 5.00 | 61.5 | 15 | 95.00 | 40.00 | C | N | 4.30 | 40.00 |
| SOF45 D200-12-60-R18 | 200.00 | 217.00 | 8.00 | 63.00 | 202.80 | 5.00 | 61.5 | 12 | 160.00 | 60.00 | C | N | 7.00 | 60.00 |
| SOF45 D200-18-60-R18 | 200.00 | 217.00 | 8.00 | 63.00 | 202.80 | 5.00 | 61.5 | 18 | 160.00 | 60.00 | C | N | 6.99 | 60.00 |
| SOF45 D250-14-60-R18 | 250.00 | 267.00 | 8.00 | 63.00 | 252.80 | 5.00 | 61.5 | 14 | 160.00 | 60.00 | C | N | 10.50 | 60.00 |
| SOF45 D250-21-60-R18 | 250.00 | 267.00 | 8.00 | 63.00 | 252.80 | 5.00 | 61.5 | 21 | 160.00 | 60.00 | C | N | 0.00 | 60.00 |
| SOF45 D315-18-60-R18 | 315.00 | 332.00 | 8.00 | 80.00 | 317.80 | 5.00 | 78.5 | 18 | 230.00 | 60.00 | C | N | 0.00 | 60.00 |
| SOF45 D315-24-60-R18 | 315.00 | 332.00 | 8.00 | 80.00 | 317.80 | 5.00 | 78.5 | 24 | 230.00 | 60.00 | C | N | 0.00 | 60.00 |
- For user guide, see pages 462-468
For inserts, see pages: ONHU 0706AN-R-W (433) ONMU/ONHU 0706 (433) S845 SNHU 1806AN-N-W (430) S845 SNMU/SNHU 1806 (430)
Spare Parts
| Designation | |||
| SOF45 D050-04-22-R18 | BLD IP20/S7 | SW6-T | SR M10X25 DIN912 |
| SOF45 D063-05-22-R18 | BLD IP20/S7 | SW6-T | SR M10X25 DIN912 |
| SOF45 D063-05-27-R18 | BLD IP20/S7 | SW6-T | SR M12X25 |
| SOF45 D080-06-27-R18 | BLD IP20/S7 | SW6-T | SR M12X25 |
| SOF45 D080-07-27-R18 | BLD IP20/S7 | SW6-T | SR M12X25 |
| SOF45 D100-07-32-R18 | BLD IP20/S7 | SW6-T | |
| SOF45 D100-09-32-R18 | BLD IP20/S7 | SW6-T | |
| SOF45 D125-08-40-R18 | BLD IP20/S7 | SW6-T | |
| SOF45 D125-12-40-R18 | BLD IP20/S7 | SW6-T | |
| SOF45 D160-10-40-R18 | BLD IP20/M7 | SW6-T | |
| SOF45 D160-15-40-R18 | BLD IP20/M7 | SW6-T | |
| SOF45 D200-12-60-R18 | BLD IP20/M7 | SW6-T | |
| SOF45 D200-18-60-R18 | BLD IP20/M7 | SW6-T | |
| SOF45 D250-14-60-R18 | BLD IP20/M7 | SW6-T | |
| SOF45 D250-21-60-R18 | BLD IP20/M7 | SW6-T | |
| SOF45 D315-18-60-R18 | BLD IP20/M7 | SW6-T | |
| SOF45 D315-24-60-R18 | BLD IP20/M7 | SW6-T |
