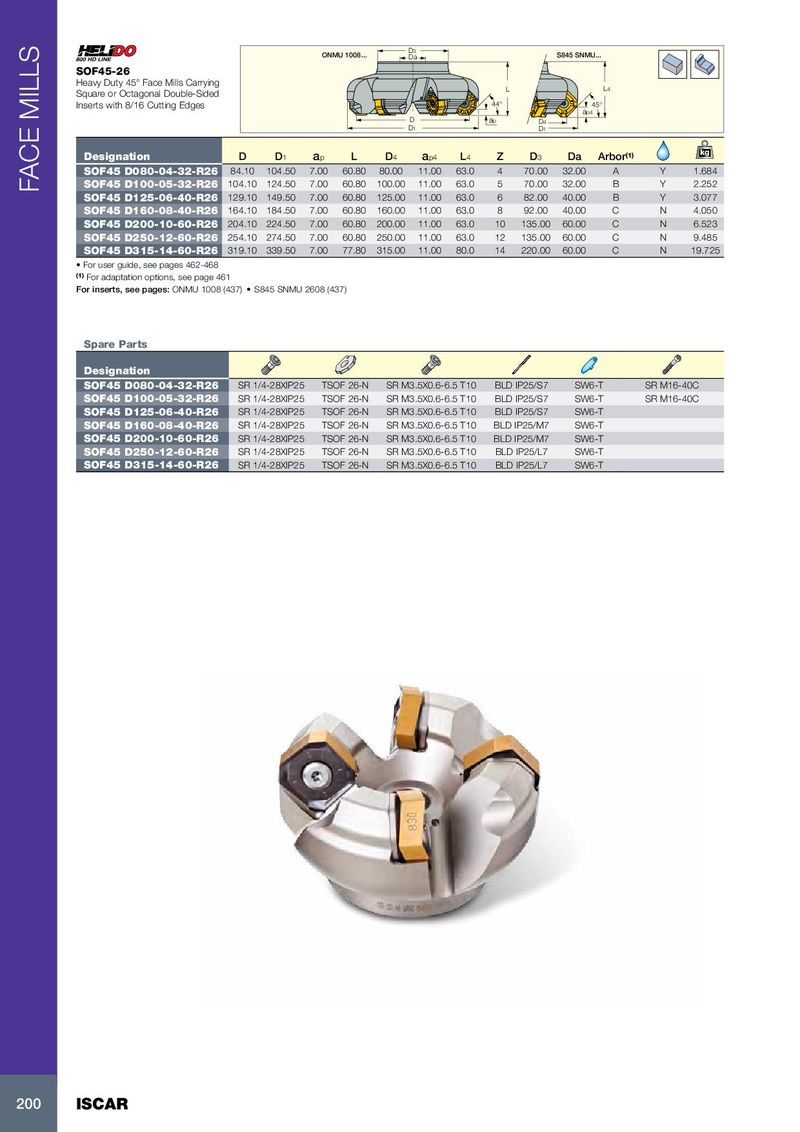

D3 ONMU 1008... Da S845 SNMU... SOF45-26 Heavy Duty 45° Face Mills Carrying L L4 Square or Octagonal Double-Sided Inserts with 8/16 Cutting Edges 44° 45° ap4 D ap D4 D1 D1 Designation D D 1 a p L D 4 a p4 L 4 Z D 3 Da Arbor (1) kg SOF45 D080-04-32-R26 84.10 104.50 7.00 60.80 80.00 11.00 63.0 4 70.00 32.00 A Y 1.684 SOF45 D100-05-32-R26 104.10 124.50 7.00 60.80 100.00 11.00 63.0 5 70.00 32.00 B Y 2.252 FACE MILLS SOF45 D125-06-40-R26 129.10 149.50 7.00 60.80 125.00 11.00 63.0 6 82.00 40.00 B Y 3.077 SOF45 D160-08-40-R26 164.10 184.50 7.00 60.80 160.00 11.00 63.0 8 92.00 40.00 C N 4.050 SOF45 D200-10-60-R26 204.10 224.50 7.00 60.80 200.00 11.00 63.0 10 135.00 60.00 C N 6.523 SOF45 D250-12-60-R26 254.10 274.50 7.00 60.80 250.00 11.00 63.0 12 135.00 60.00 C N 9.485 SOF45 D315-14-60-R26 319.10 339.50 7.00 77.80 315.00 11.00 80.0 14 220.00 60.00 C N 19.725 • For user guide, see pages 462-468 (1) For adaptation options, see page 461 For inserts, see pages: ONMU 1008 (437) • S845 SNMU 2608 (437) Spare Parts Designation SOF45 D080-04-32-R26 SR 1/4-28XIP25 TSOF 26-N SR M3.5X0.6-6.5 T10 BLD IP25/S7 SW6-T SR M16-40C SOF45 D100-05-32-R26 SR 1/4-28XIP25 TSOF 26-N SR M3.5X0.6-6.5 T10 BLD IP25/S7 SW6-T SR M16-40C SOF45 D125-06-40-R26 SR 1/4-28XIP25 TSOF 26-N SR M3.5X0.6-6.5 T10 BLD IP25/S7 SW6-T SOF45 D160-08-40-R26 SR 1/4-28XIP25 TSOF 26-N SR M3.5X0.6-6.5 T10 BLD IP25/M7 SW6-T SOF45 D200-10-60-R26 SR 1/4-28XIP25 TSOF 26-N SR M3.5X0.6-6.5 T10 BLD IP25/M7 SW6-T SOF45 D250-12-60-R26 SR 1/4-28XIP25 TSOF 26-N SR M3.5X0.6-6.5 T10 BLD IP25/L7 SW6-T SOF45 D315-14-60-R26 SR 1/4-28XIP25 TSOF 26-N SR M3.5X0.6-6.5 T10 BLD IP25/L7 SW6-T 200 ISCAR
